Without TCS

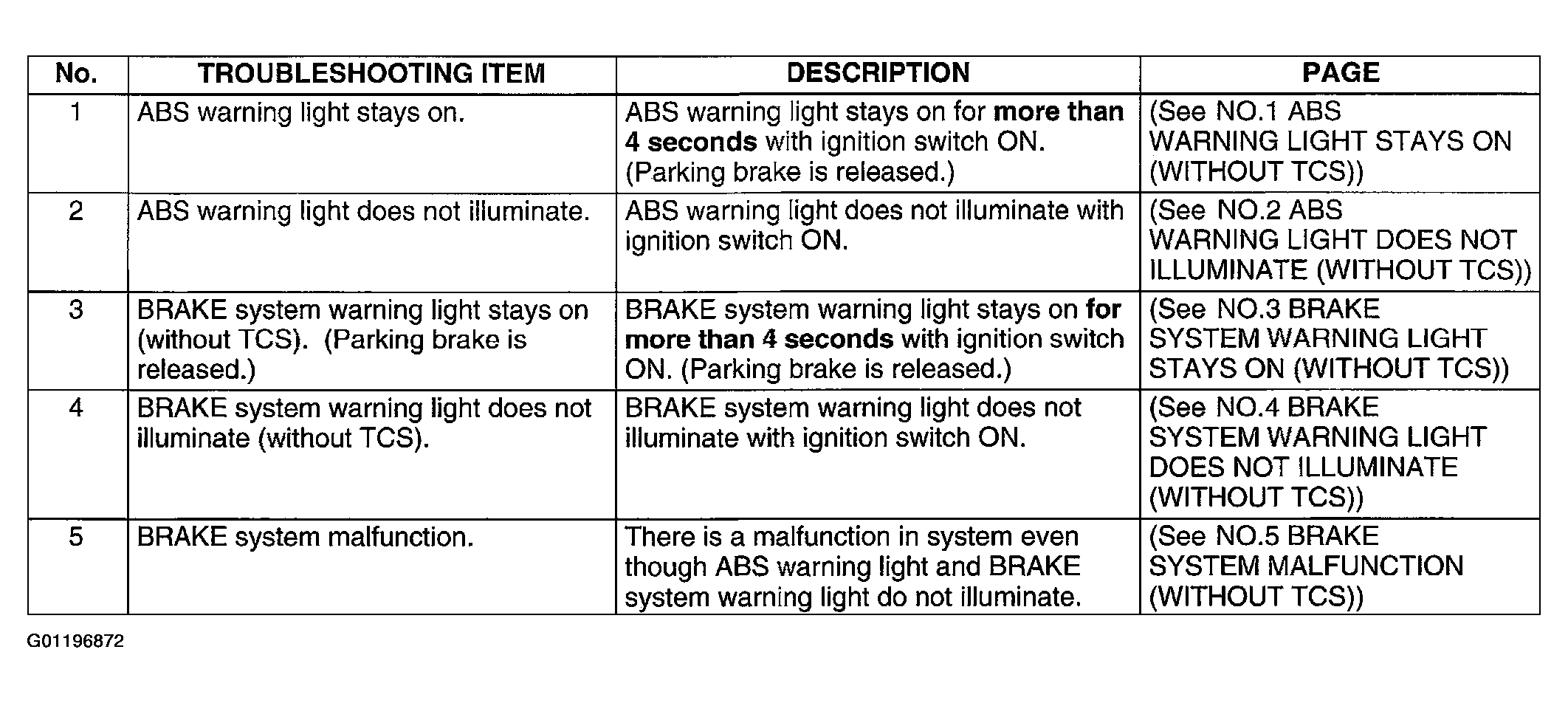

Fig 1: Symptom Trouble Shooting Chart (Without TCS)
G01196872Courtesy of MAZDA MOTORS CORP.

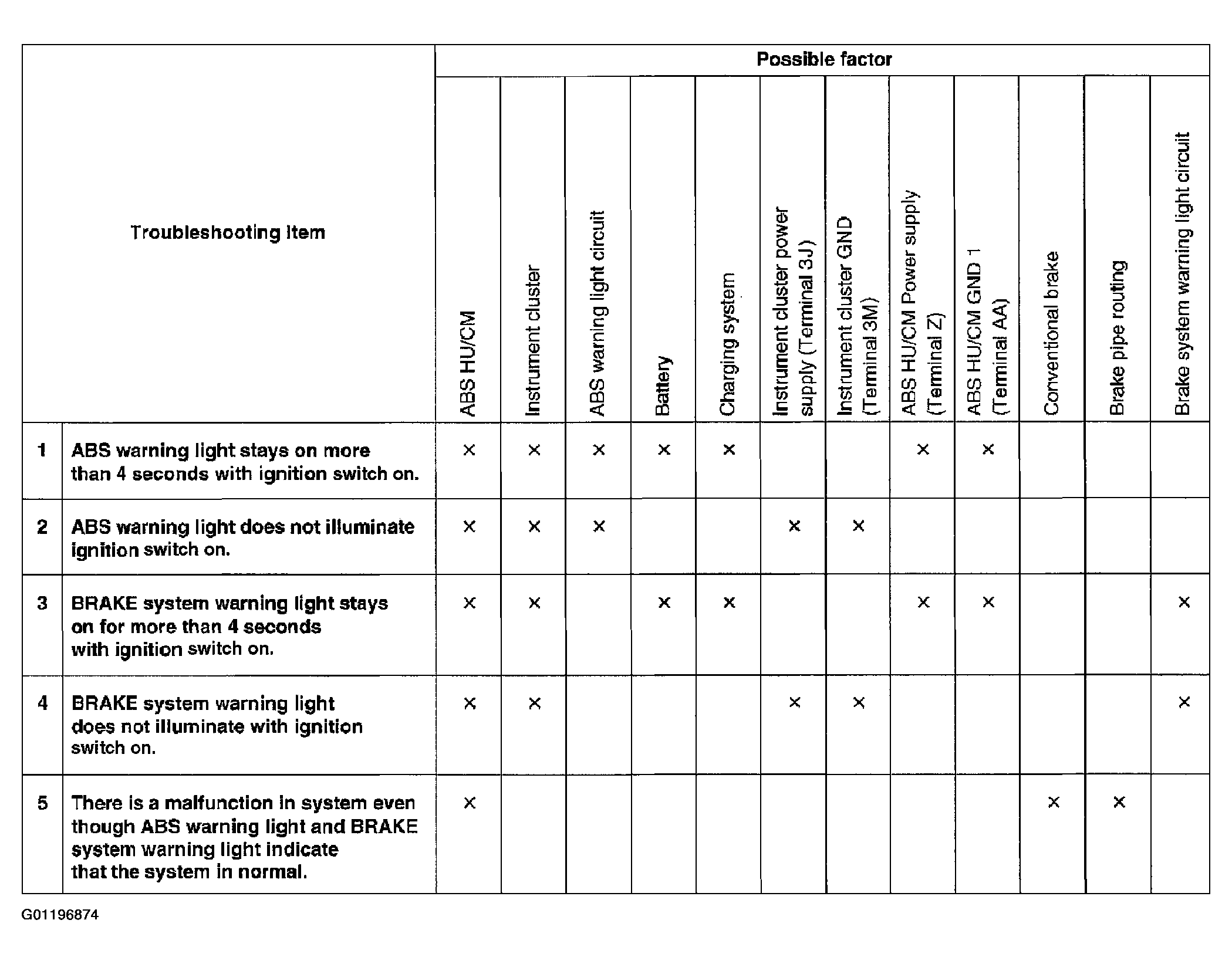

Fig 1: Warning Light Trouble Shooting Chart (Without TCS)
G01196874Courtesy of MAZDA MOTORS CORP.
