TCS Off Switch Inspection

Remove the TCS OFF switch.
Inspect for continuity between the TCS OFF switch terminals using an ohmmeter.
- If not within the specification, replace the TCS OFF switch.

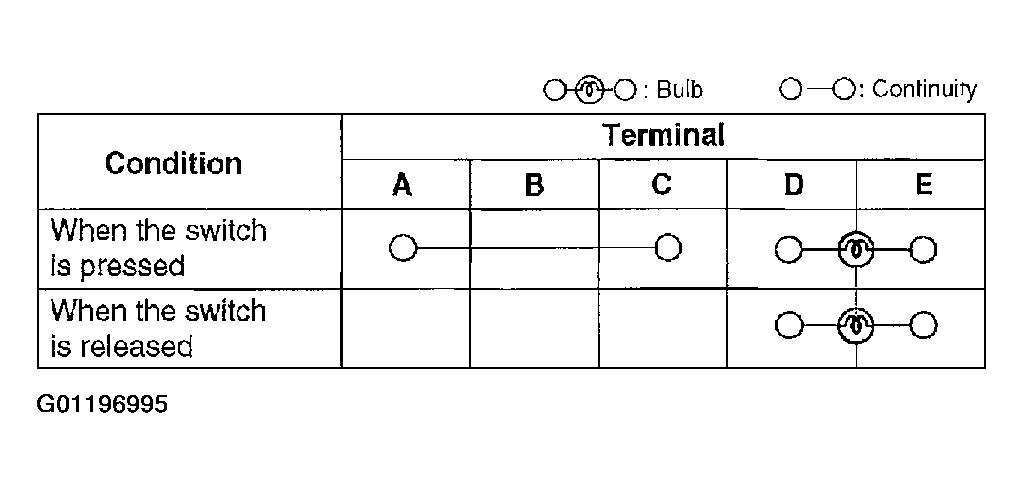

Fig 1: TCS Off Switch Continuity Check
Courtesy of MAZDA MOTORS CORP.

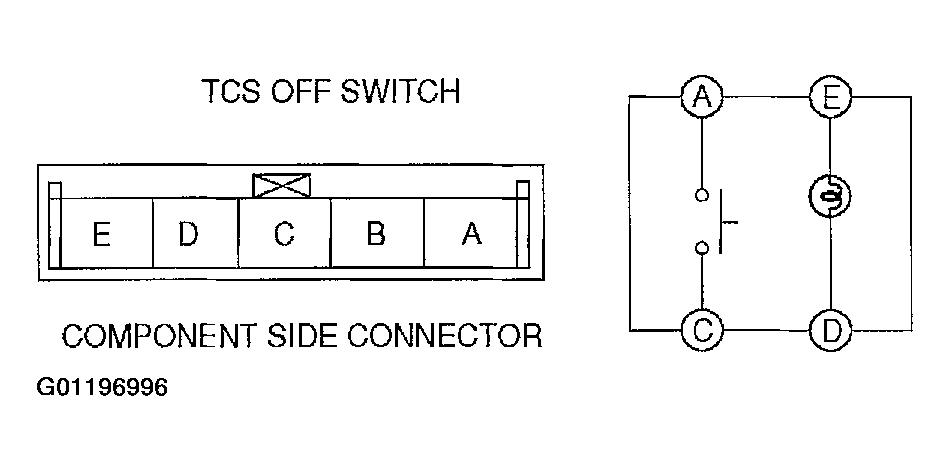

Fig 2: Identifying TCS Off Switch Terminals & Circuit
Courtesy of MAZDA MOTORS CORP.
