Generators & Regulators: Overhaul
CAUTION:
During disassembly, melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

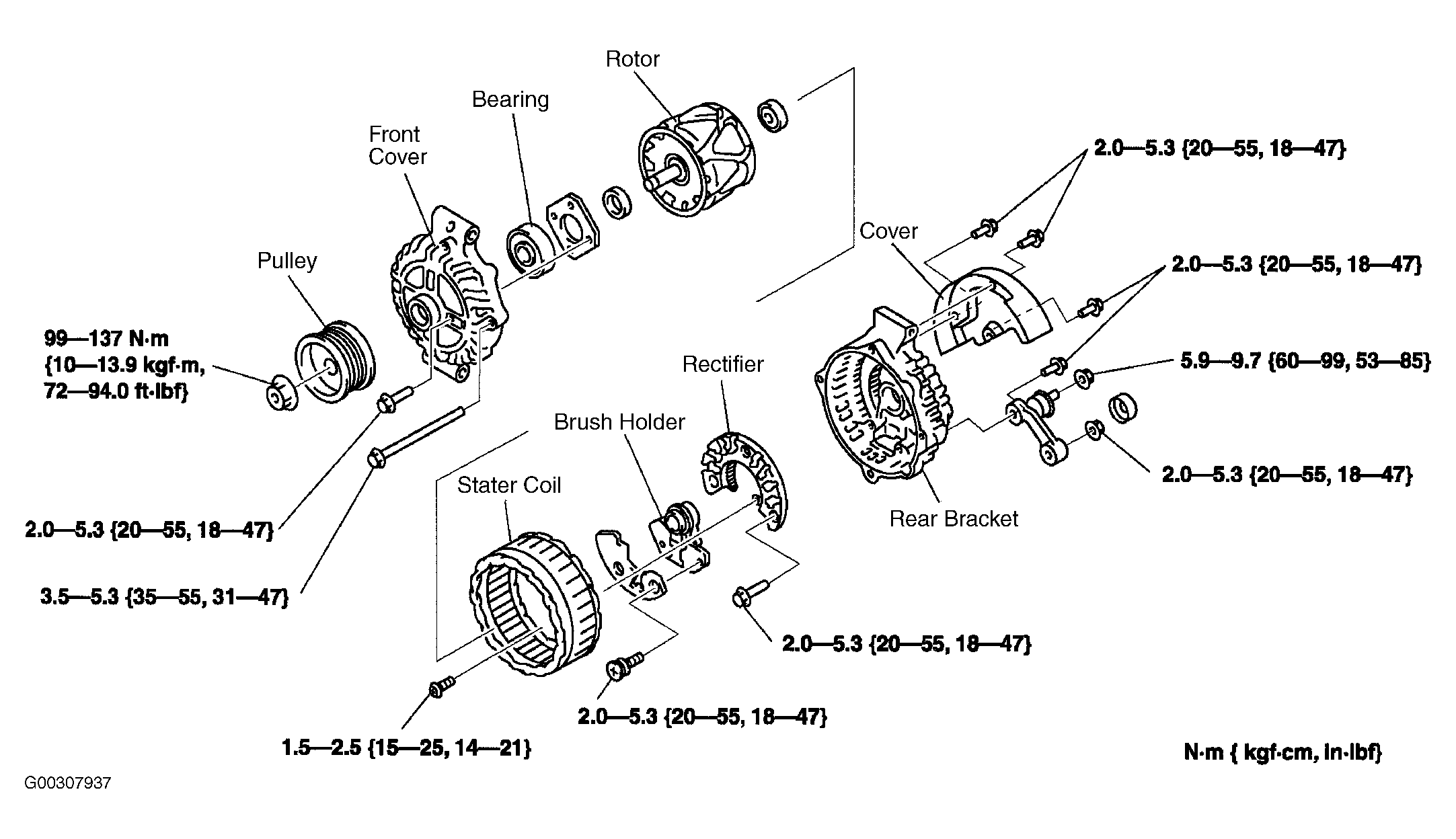

Overhaul procedure is not available from manufacturer. To aid in overhaul, refer to illustration. See Fig 1.
