Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Component Location |
| Joint Box |
At left kick panel. See Figure
. |

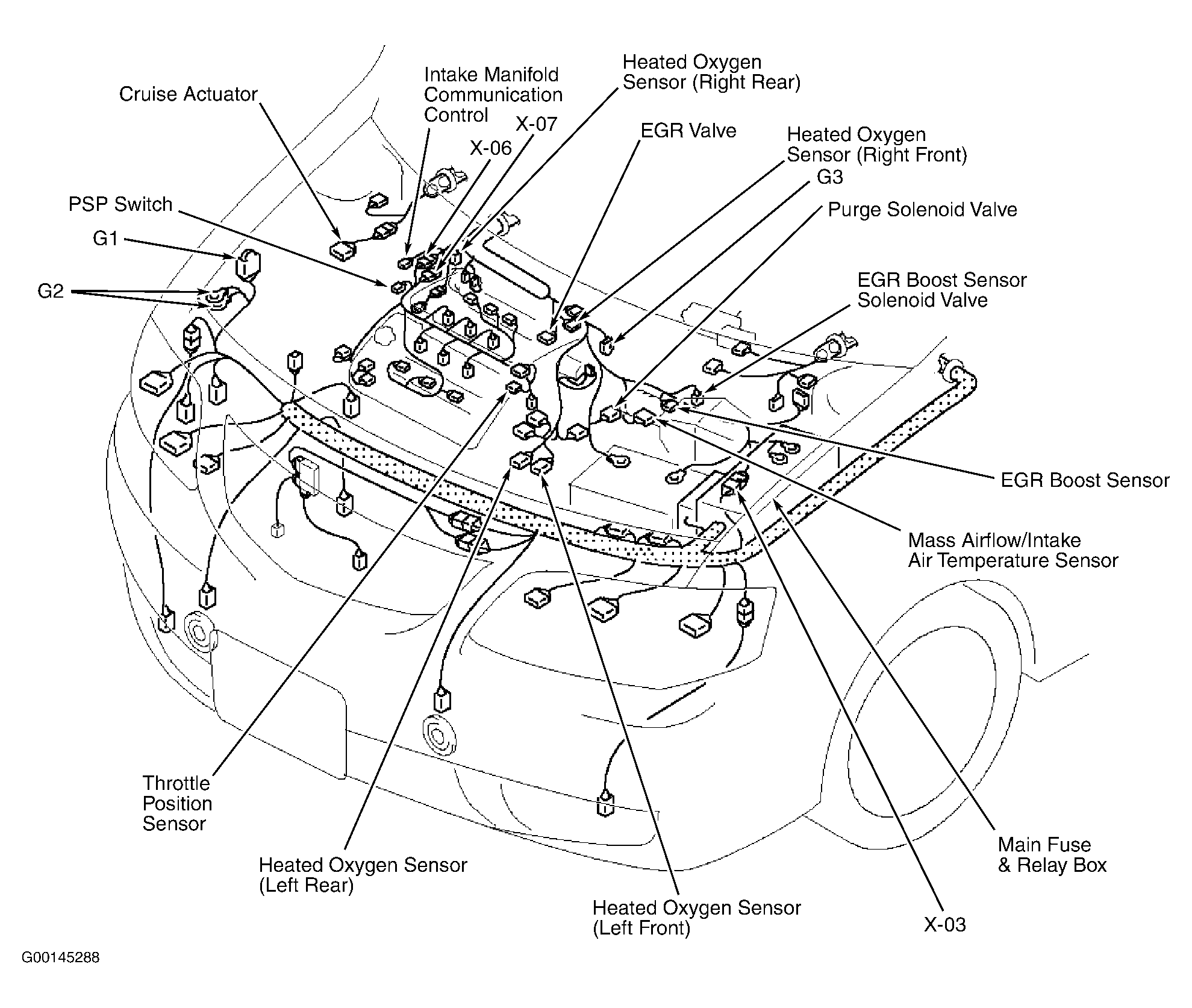

| Main Fuse & Relay Box |
At left side of engine compartment. See Figure
. |
| Relay Box |
At left front corner of engine compartment. See Figure
. |
