Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Hydraulic Unit/Control Module (ABS HU/CM) | At left rear corner of engine compartment. |

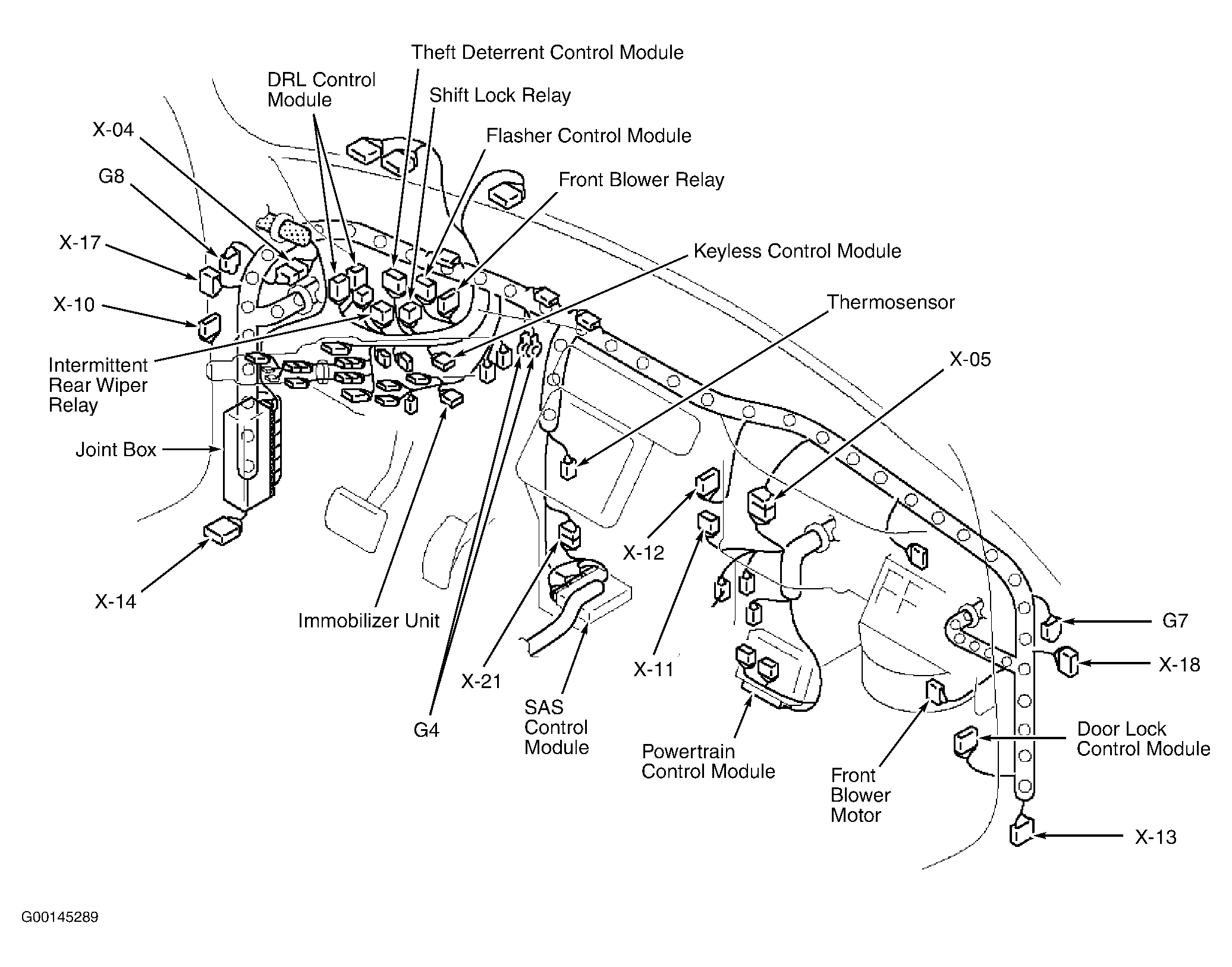

| Door Lock Control Module | Behind right side of dash. See Figure . |
| DRL Control Module | Behind left side of dash. See Figure . |

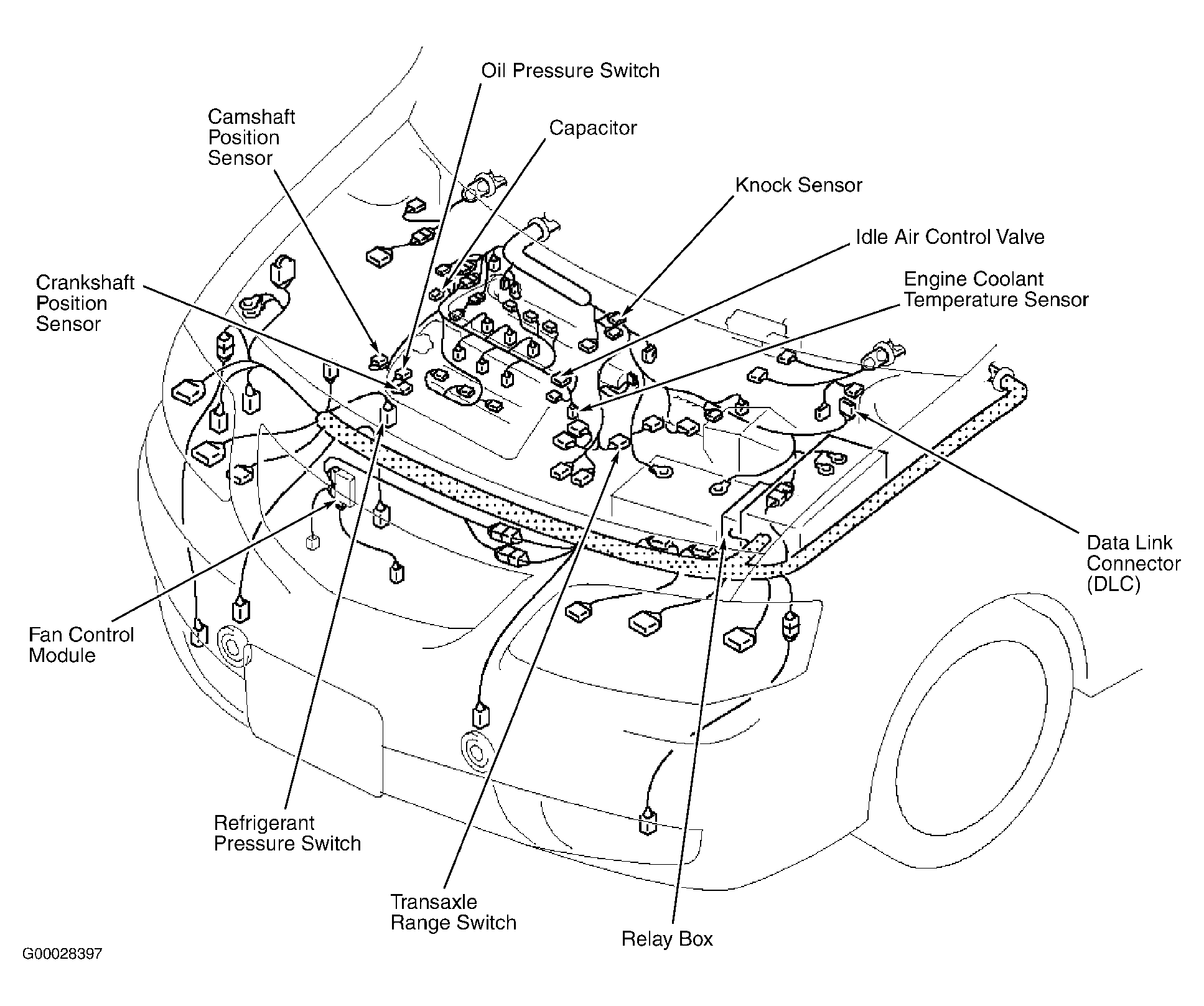

| Fan Control Module | At right front of engine compartment. See Figure . |
| Immobilizer Unit | Behind left side of dash. See Figure . |
| Keyless Control Module | Behind left side of dash. See Figure . |
| Powertrain Control Module | Below right center of dash. See Figure . |
| SAS Control Module | At lower center of dash. See Figure . |
| Theft Deterrent Control Module | Behind left side of dash. See Figure . |
