Oil Pump Removal/Installation: Notes
- Disconnect the negative battery cable.
- Remove the timing chain. (See TIMING CHAIN REMOVAL/INSTALLATION .)

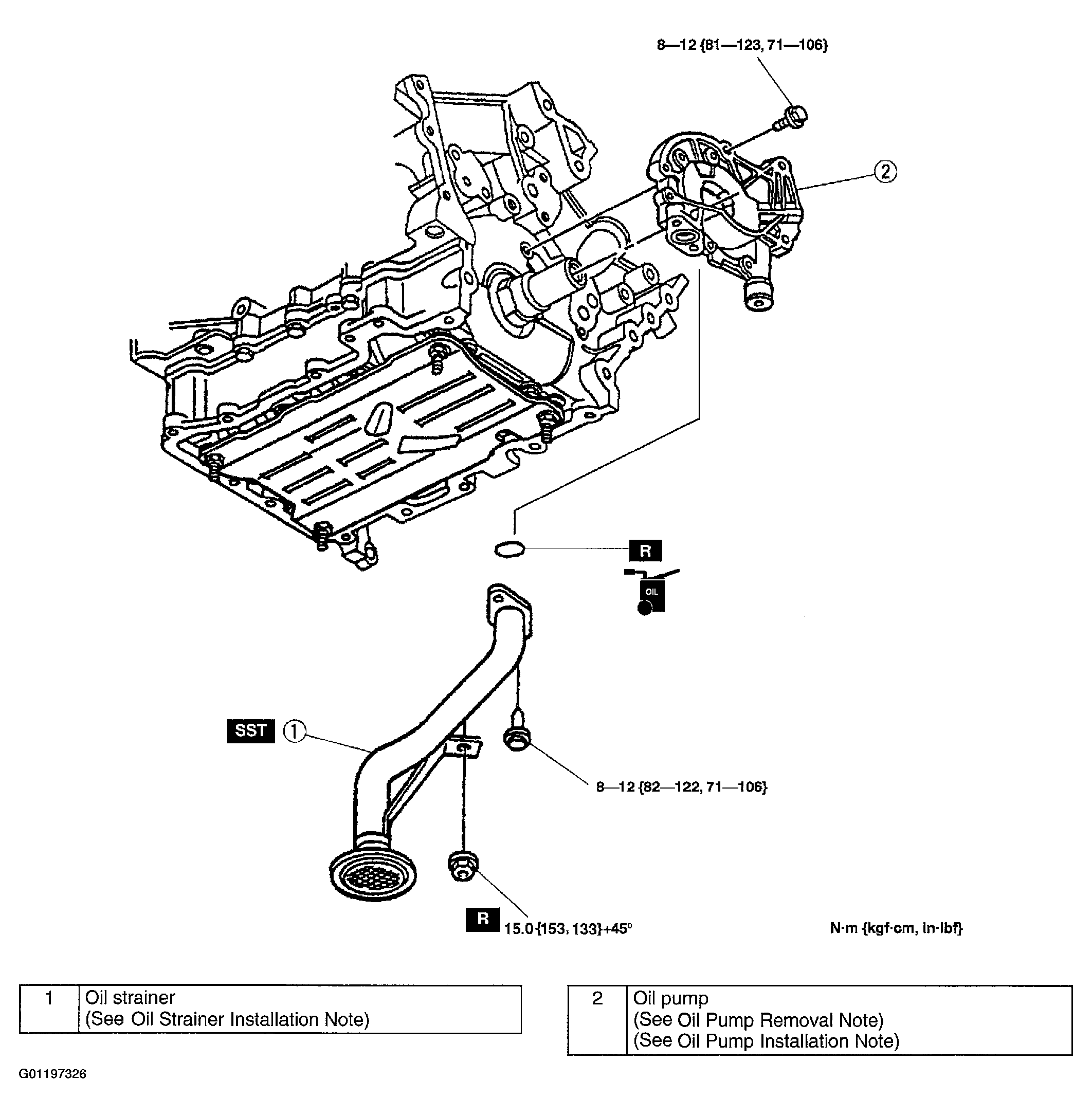

- Remove in the order indicated in the figure.
- Install in the reverse order of removal.
- Start the engine and inspect for engine oil leakage.
- Inspect the oil pressure. (See OIL PRESSURE INSPECTION .)
