Fuel Pump Relay: MPV

Remove fuel pump relay. See FUEL PUMP RELAY LOCATIONS  table. Using ohmmeter, check for continuity between relay terminals "C" and "D". See Fig 1 . Continuity should not be present. Using fused jumper wires apply battery voltage to terminal "A" and ground terminal "E". Continuity should be present between fuel pump relay terminals "C" and "D" with battery voltage applied. If continuity is not as specified, replace fuel pump relay.

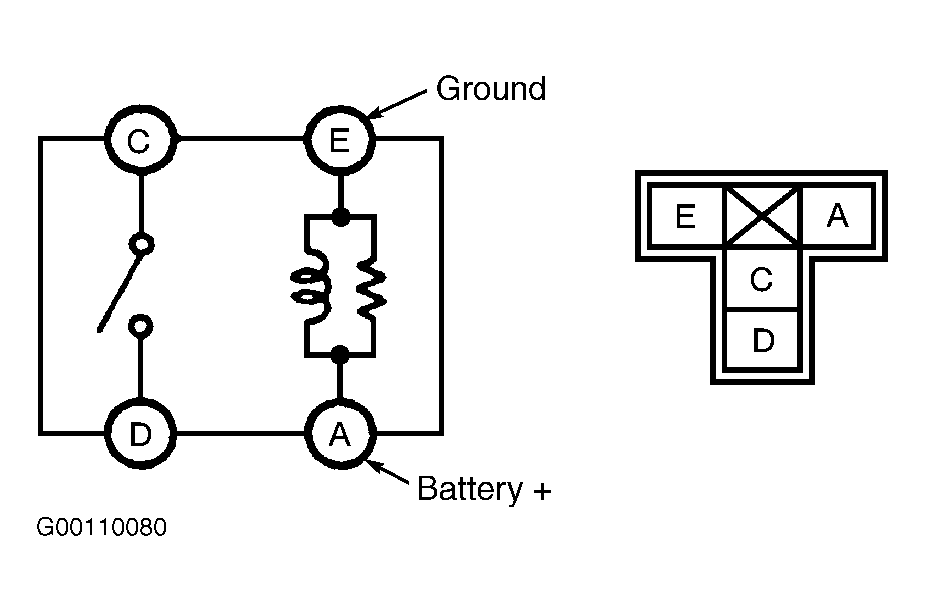

Fig 1: Identifying Fuel Pump Relay Terminals (MPV)

Courtesy of MAZDA MOTORS CORP.
