Driver's Seat

  1. Disconnect the buckle switch connector.
  2. Inspect for continuity between the buckle switch terminals using an ohmmeter.
    • If not as specified, replace the front buckle.

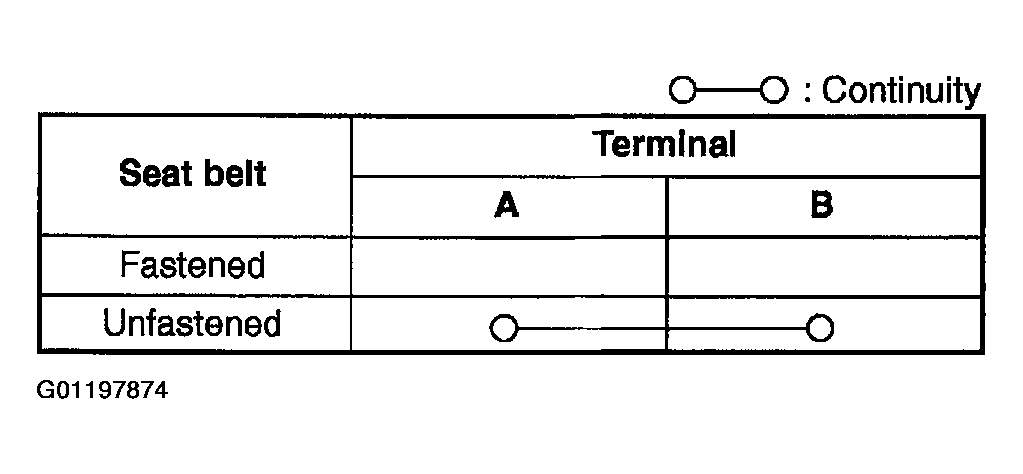

    Fig 1: Inspecting Buckle Switch Continuity
    G01197874Courtesy of MAZDA MOTORS CORP.

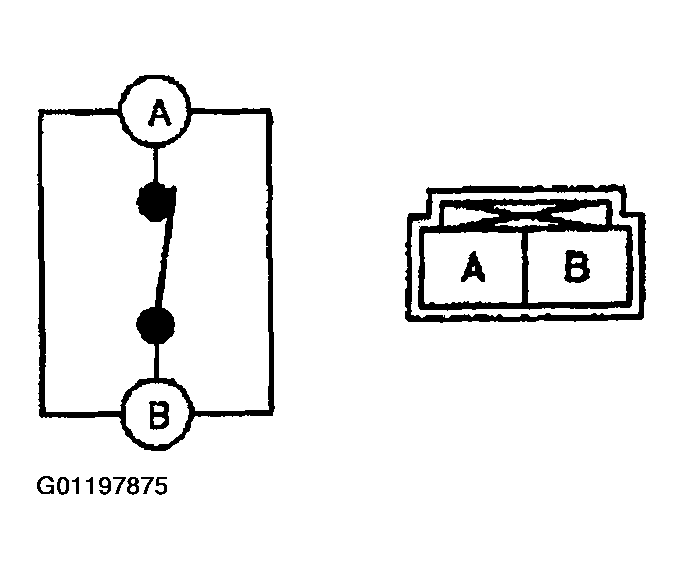

    Fig 2: Identifying Buckle Switch Connector
    G01197875Courtesy of MAZDA MOTORS CORP.
