Front Buckle Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the side cover. See FRONT SEAT DISASSEMBLY/ASSEMBLY .
  3. Remove in the order indicated in the illustration.

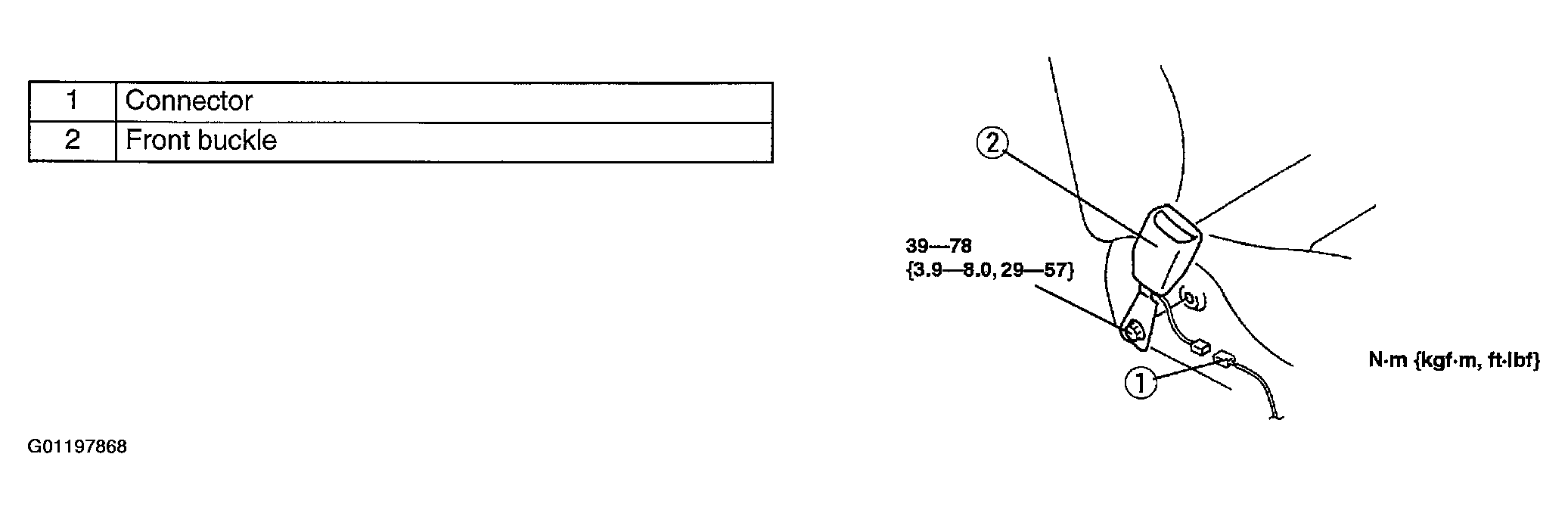

    Fig 1: Removing Front Buckle
    G01197868Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
