Third-Row Buckle Removal/Installation

  1. Remove the bolts, and then remove the third-row buckle.
  2. Install in the reverse order of removal.

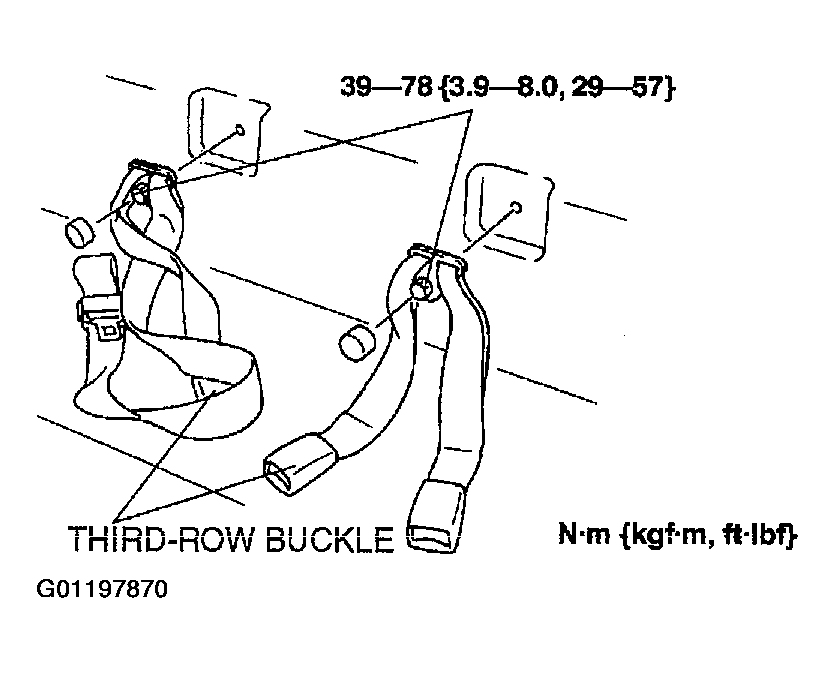

    Fig 1: Removing Third Row Buckle
    G01197870Courtesy of MAZDA MOTORS CORP.
