Steering Wheel And Column Removal/Installation: Notes

WARNING: Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read AIR BAG SYSTEM WARNINGS before handling the air bag module. See AIR BAG SAFETY PRECAUTIONS .
  1. Remove in the order indicated in the illustration.

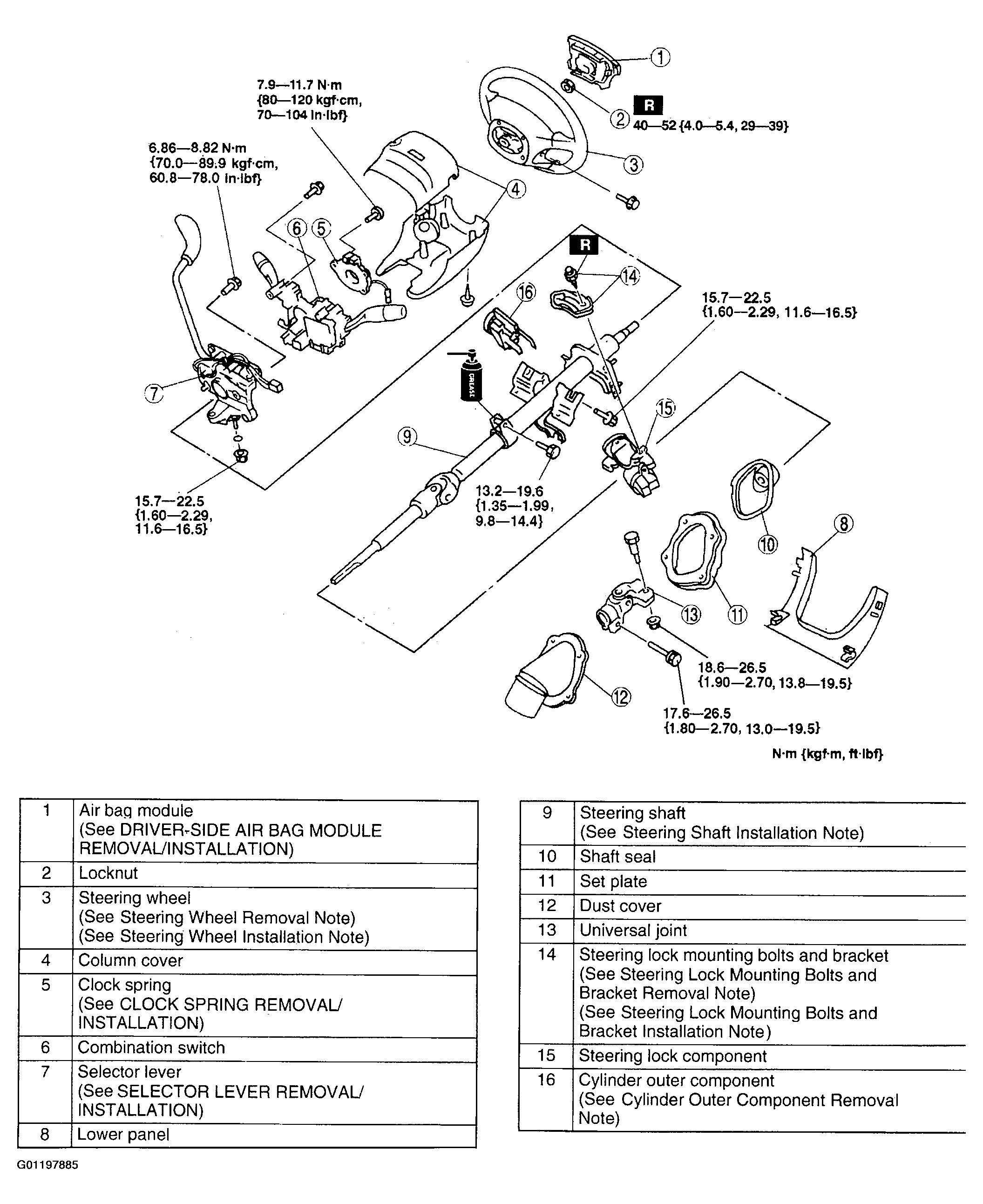

    Fig 1: Removing/Installing Steering Wheel & Column
    G01197885Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
