Front Door Glass And Guide Removal/Installation

1. Lower or raise the front door glass so that the distance from the top of the front door glass at the rear end to the upper part of the front belt line molding is 185 mm {7.3 in}.
2. Disconnect the negative battery cable.
3. Remove the front door trim. See FRONT DOOR TRIM REMOVAL/INSTALLATION .

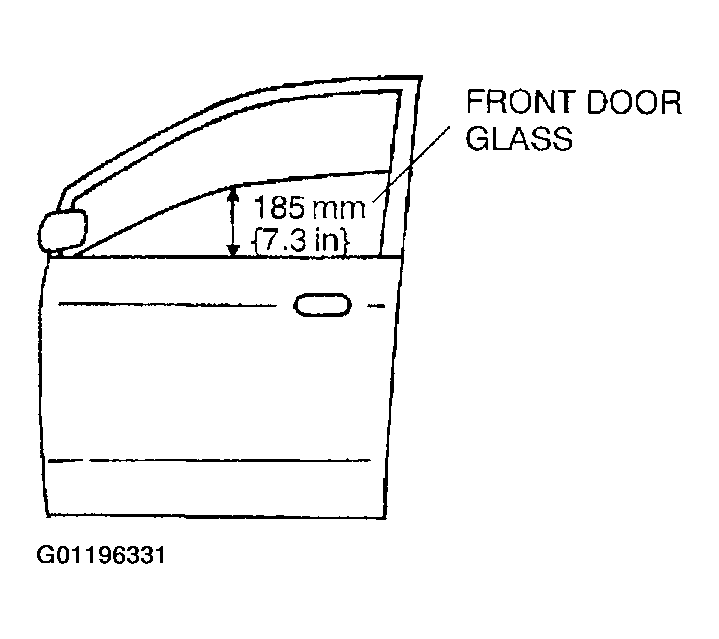

   Fig 1: Raising Window To Set Height (Front Window)

   Courtesy of MAZDA MOTORS CORP.
4. Remove in the order indicated in the illustration.
5. Install in the reverse order of removal.

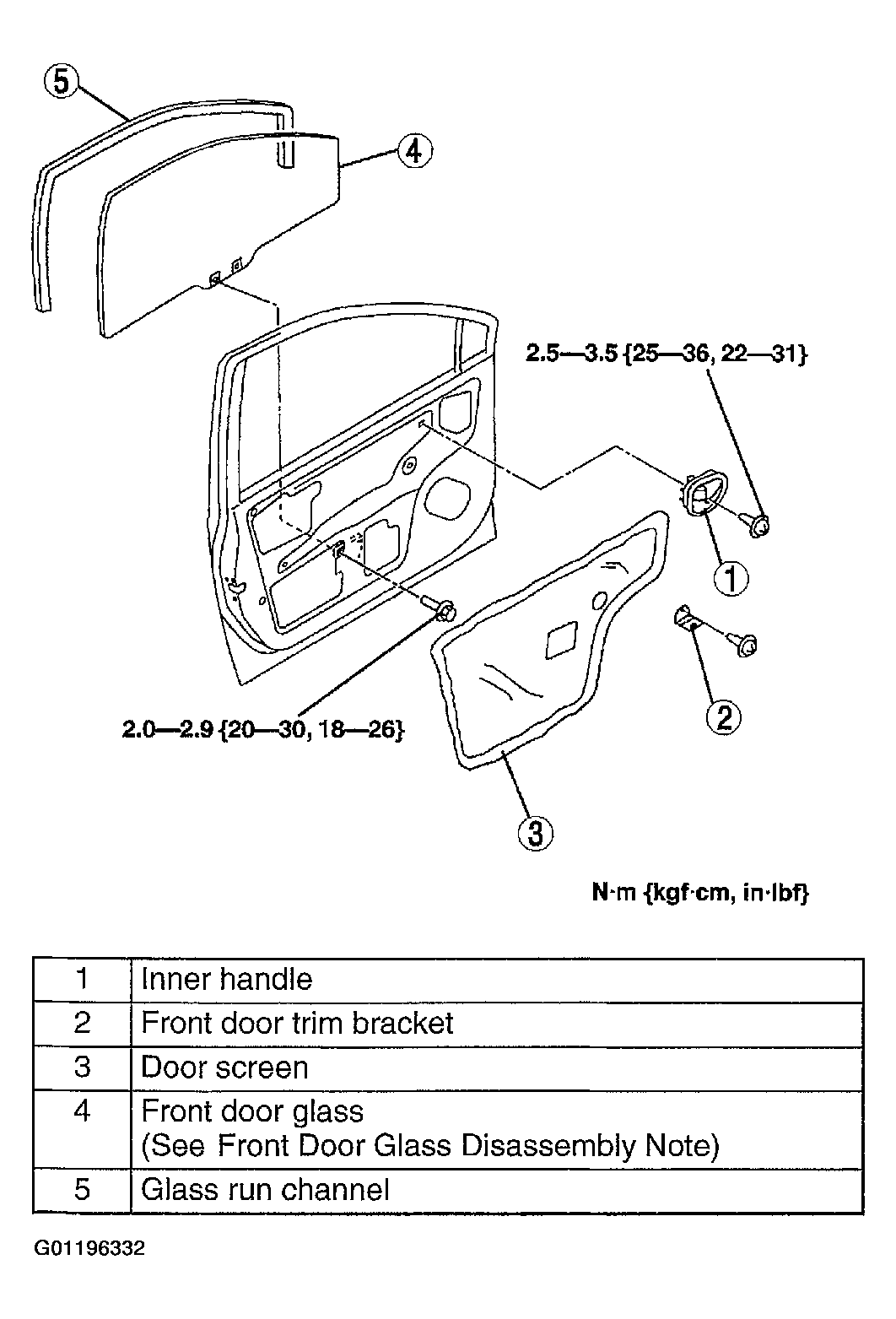

Fig 2: Removing Front Door Glass And Guide

Courtesy of MAZDA MOTORS CORP.
