No. 11 TCS Does Not Operate Correctly (With TCS)
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure

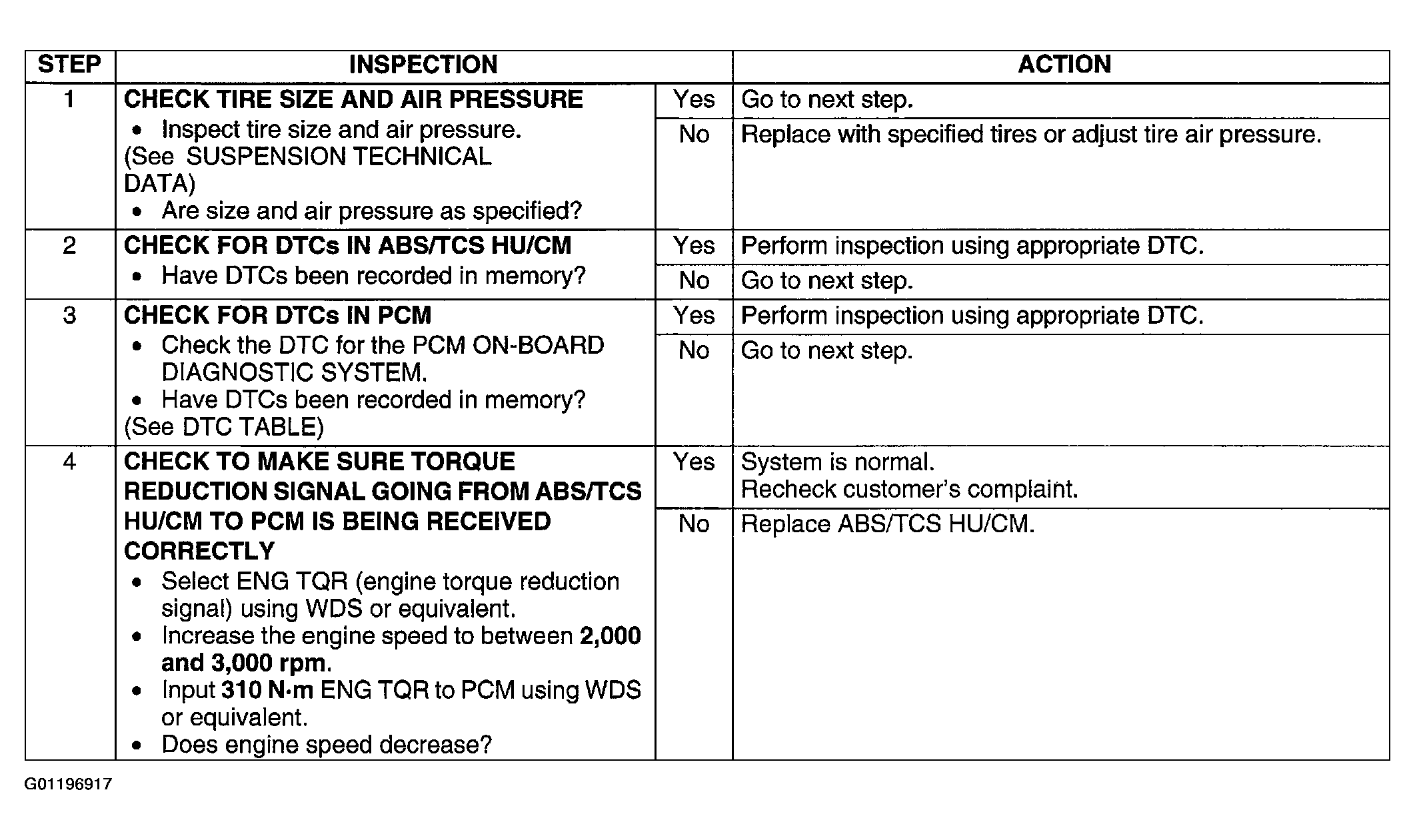

Fig 1: No. 11 TCS Does Not Operate Correctly (With TCS) Diagnostic Procedure
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
