Oil Pan Installation Note

Install the oil pan bolts and studs as shown.

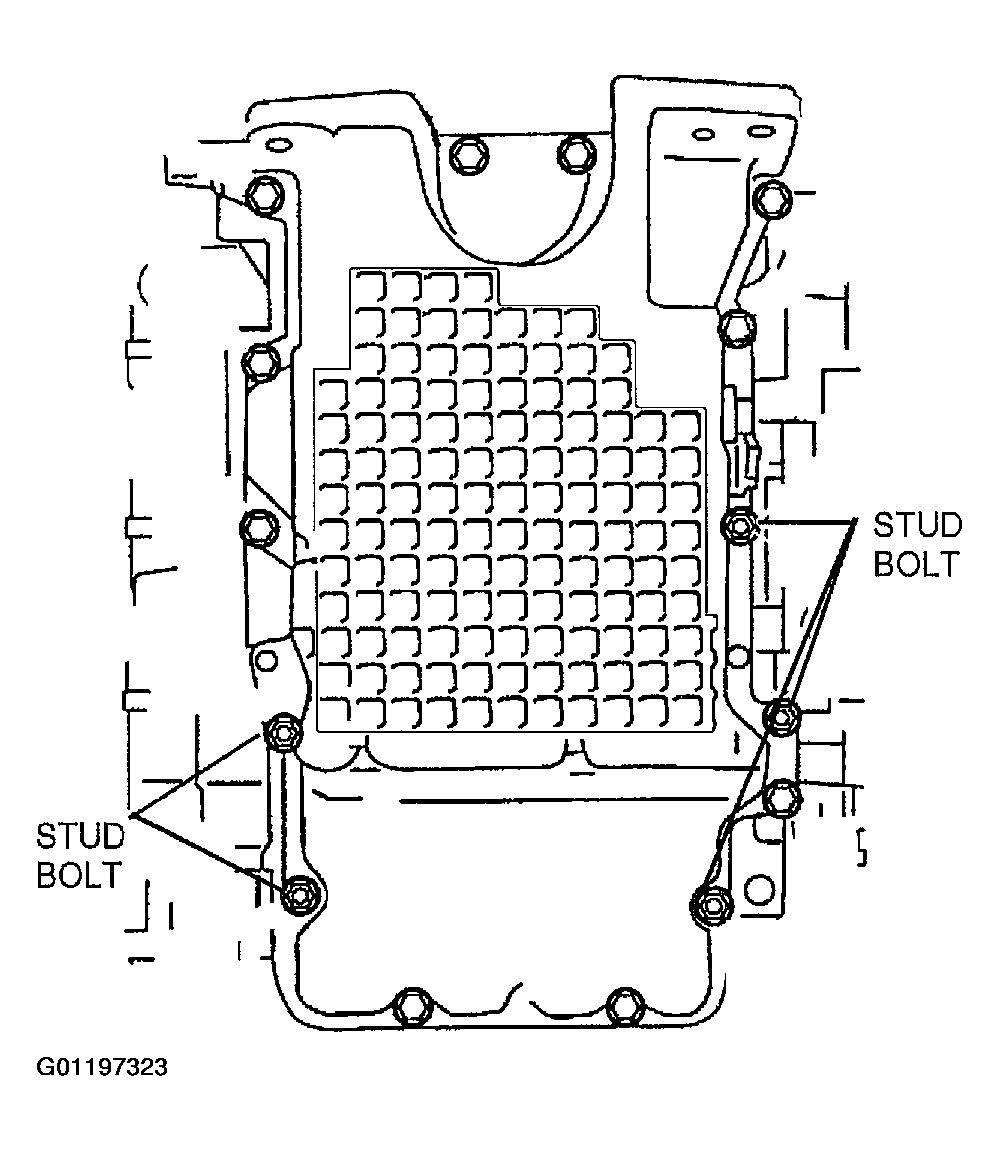

Fig 1: Locating Oil Pan Bolts/Studs
Courtesy of MAZDA MOTORS CORP.
Tighten the transaxle housing bolts to oil pan.

Fig 2: Tightening Transaxle Housing-To-Oil Pan Bolts
Courtesy of MAZDA MOTORS CORP.
Tighten the oil pan bolts and studs in several passes in the order shown.

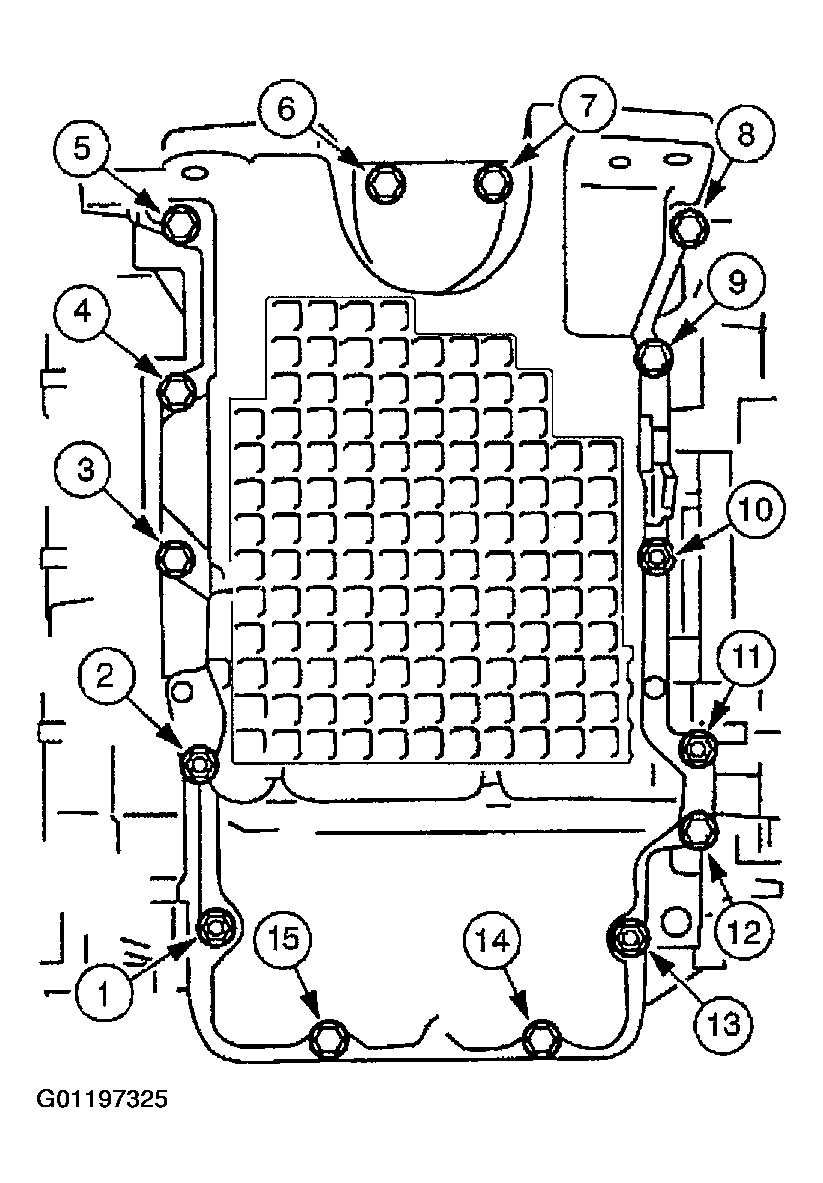

Fig 3: Oil Pan Bolt/Stud Tightening Sequence

Courtesy of MAZDA MOTORS CORP.
