Second-Row Seat Belt Removal/Installation
CAUTION:
- The Emergency Locking Retractor (ELR) has a spring that will unwind if the retractor's cover is removed. The spring cannot be rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the retractor.
- Remove the rear side trim. See REAR SIDE TRIM REMOVAL/INSTALLATION .

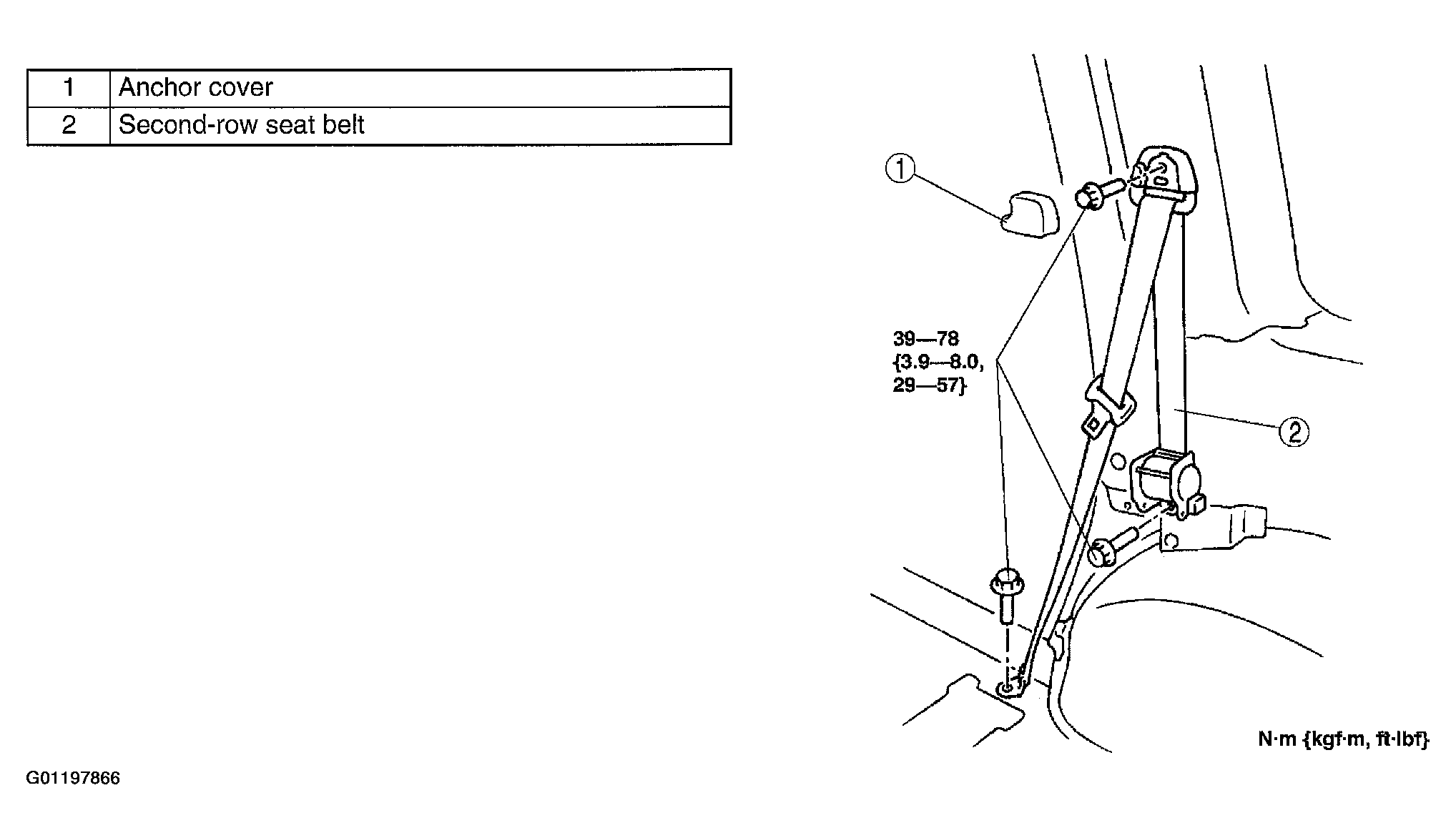

- Remove in the order indicated in the illustration.
- Install in the reverse order of removal.
