Shift Lock Relay: MPV

Disconnect shift lock relay harness connector. Relay is located under left side of instrument panel. See Fig 1 . Inspect voltage and continuity between shift lock relay terminals. See Fig 2 . Replace relay as needed.

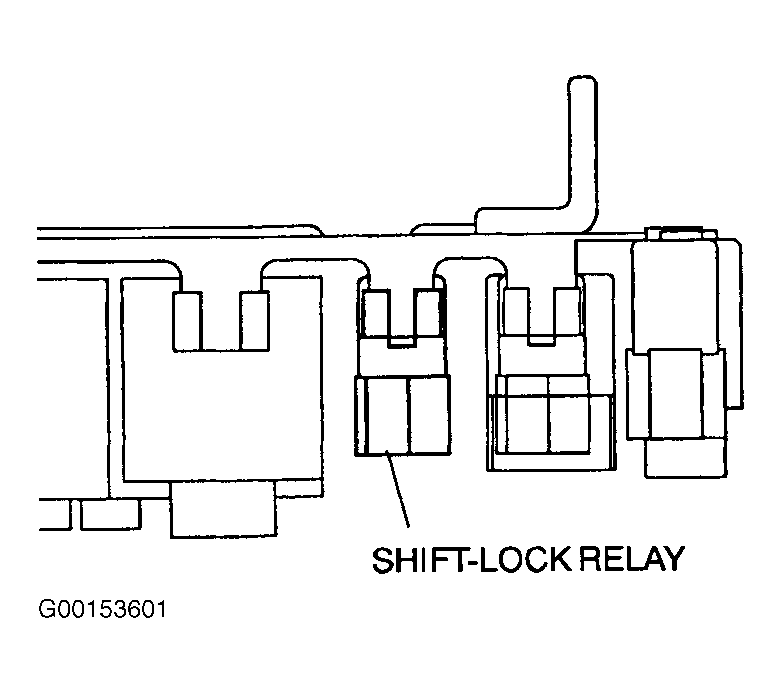

Fig 1: Locating Shift Lock Relay (MPV)

Courtesy of MAZDA MOTORS CORP.

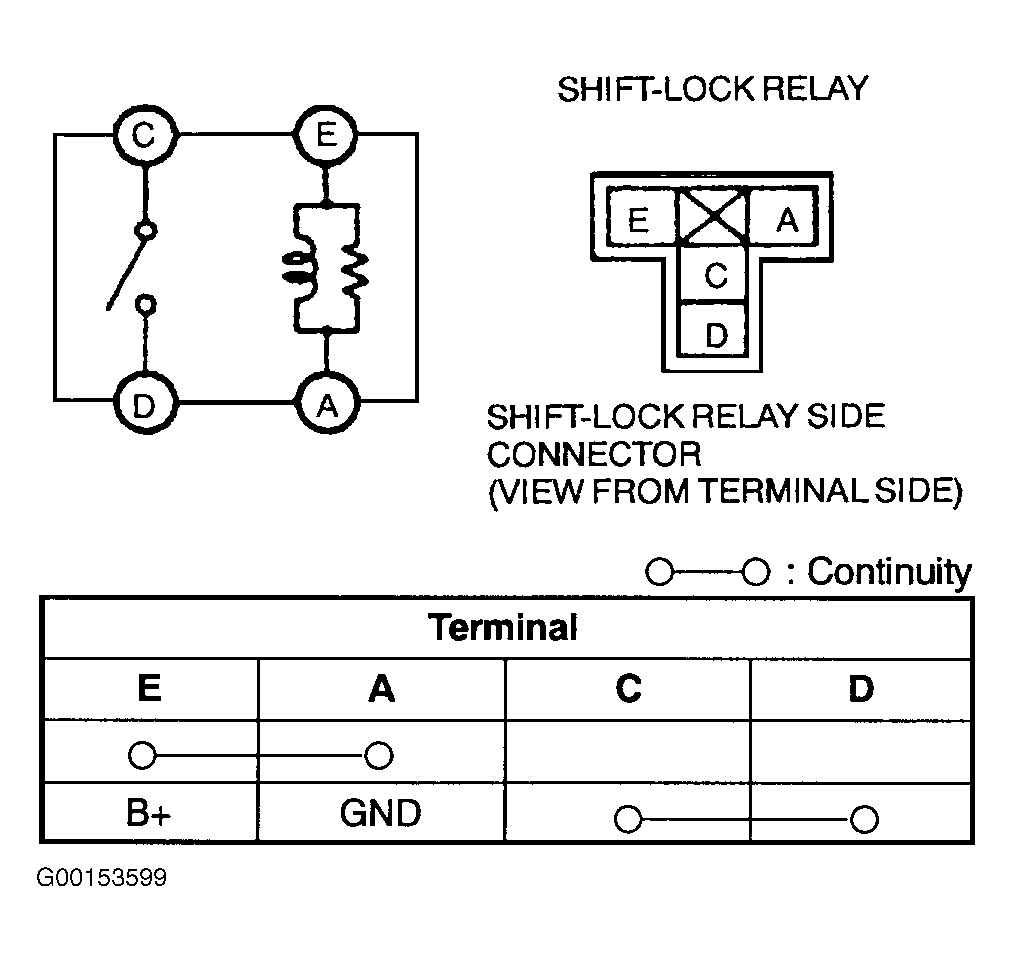

Fig 2: Testing Shift Lock Relay (MPV)

Courtesy of MAZDA MOTORS CORP.
