Front Power Window Regulator Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the illustrations.
    2. Fig 1: Disassembling/Assembling Front Power Window Regulator (1 Of 2)
    G01186091Courtesy of MAZDA MOTORS CORP.

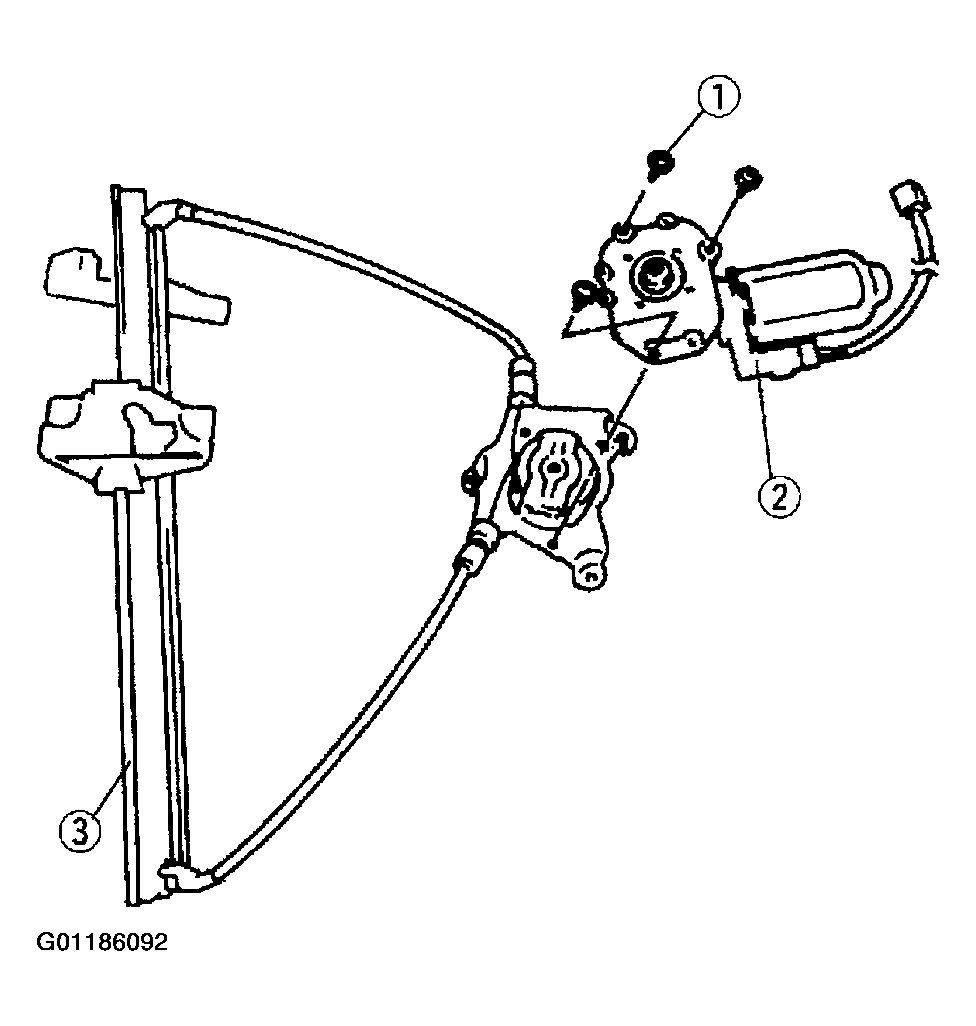

    Fig 2: Disassembling/Assembling Front Power Window Regulator (2 Of 2)
    G01186092Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
