Power Window Main Switch Inspection: Notes

  1. Remove the power window main switch. See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION  .
  2. When inspecting the passenger's side and the rear, turn the power-cut switch to ON.
  3. Inspect for continuity between the power window main switch terminals using an ohmmeter.
    • If not as specified, replace the power window main switch.

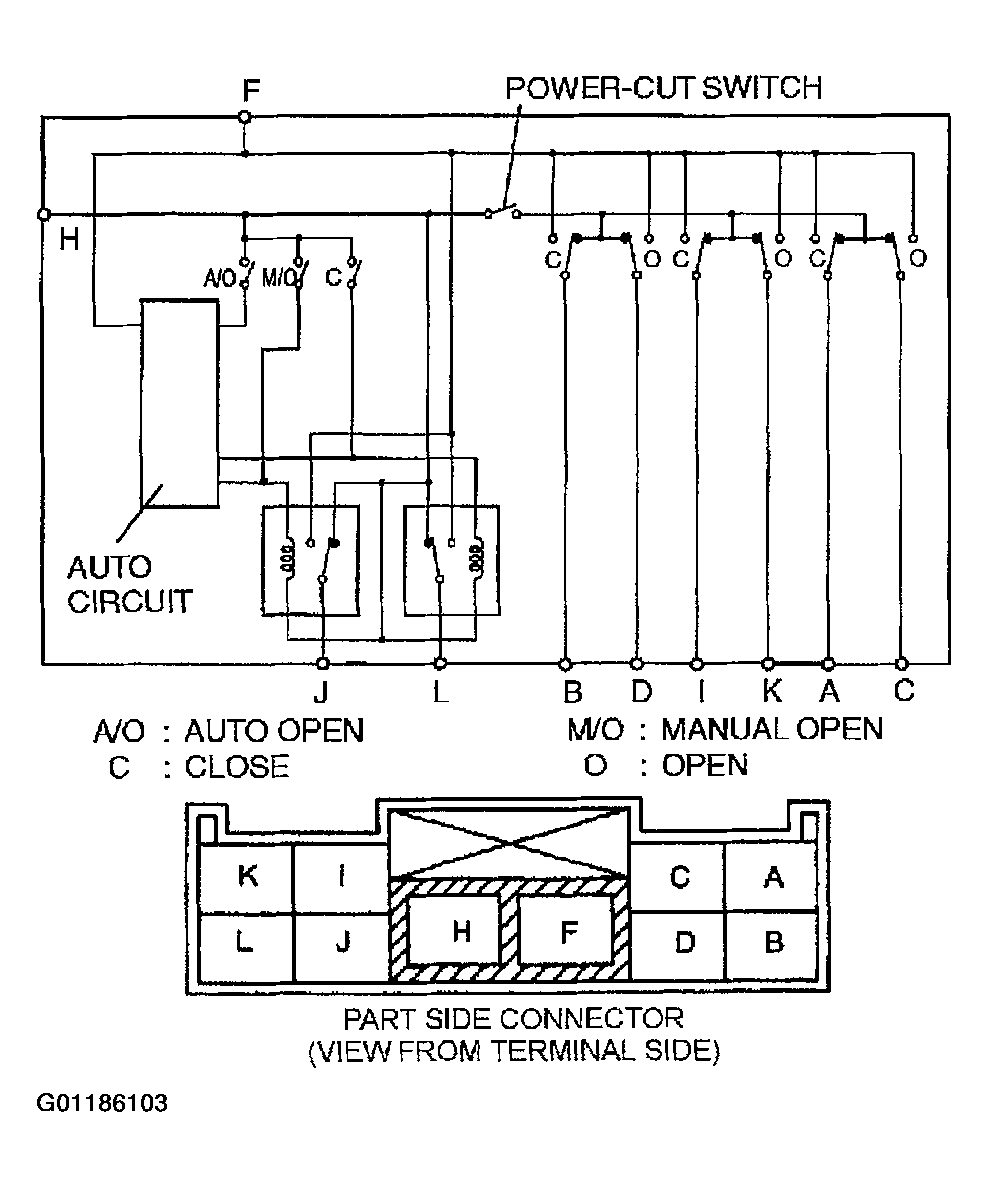

Fig 1: Identifying Power Window Main Switch Terminals & Circuits
G01186103Courtesy of MAZDA MOTORS CORP.
