Power Window Main Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the driver-side front door trim. See FRONT DOOR TRIM REMOVAL/INSTALLATION .
  3. Push out the clip from the reverse side of the trim, and remove the switch panel.
  4. Remove the screw, and remove the power window main switch.

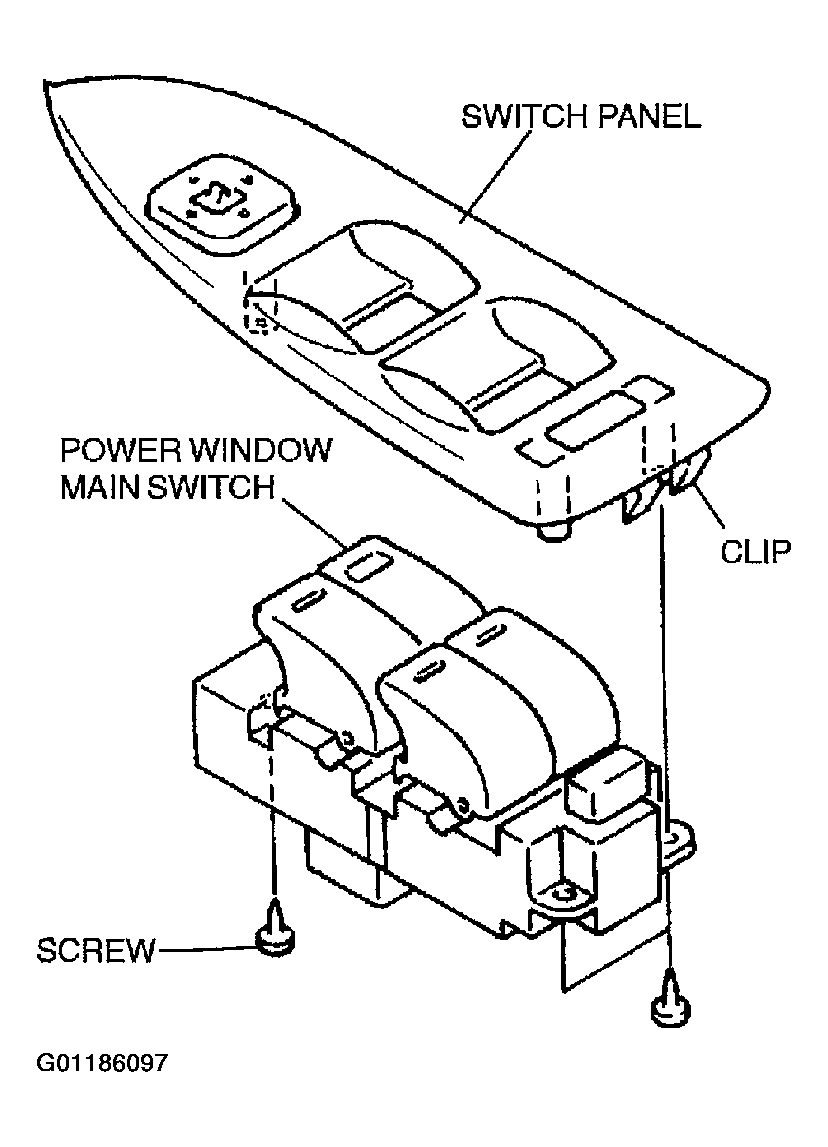

    Fig 1: Removing/Installing Power Window Main Switch
    G01186097Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
