Terminal Voltage Table (Reference)

Engine is idling, and connector is connected unless otherwise indicated.

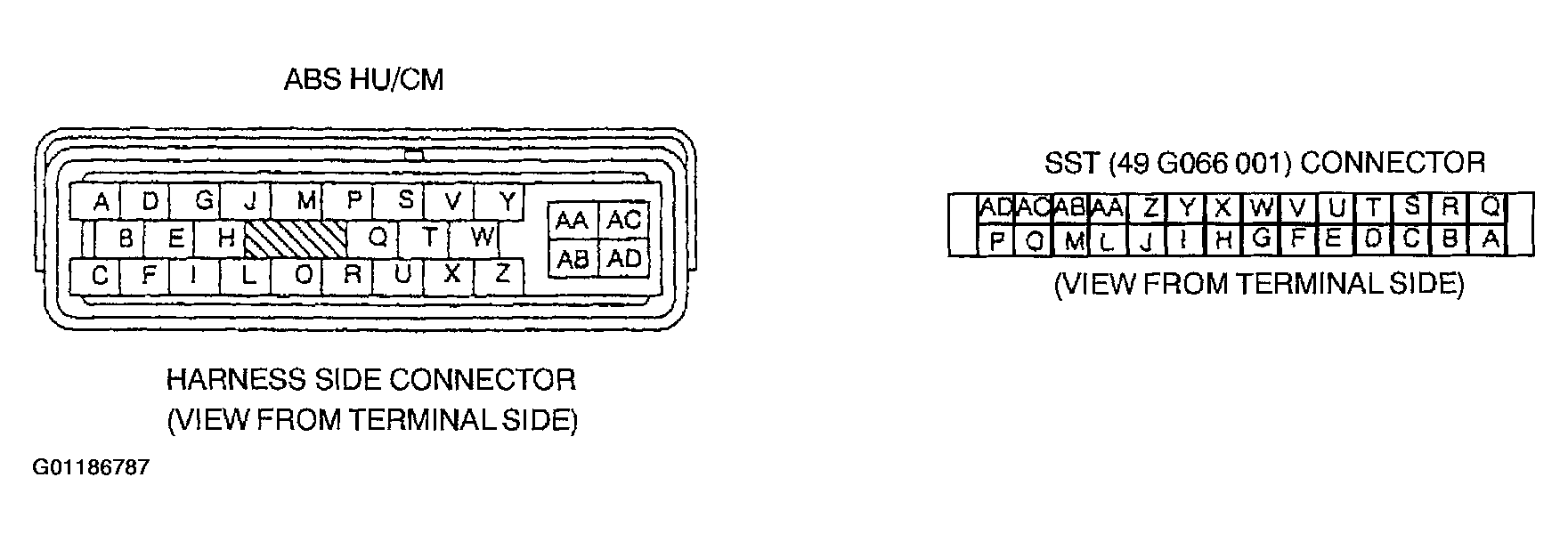

Fig 1: Identifying ABS HU/CM Terminals

Courtesy of MAZDA MOTORS CORP.

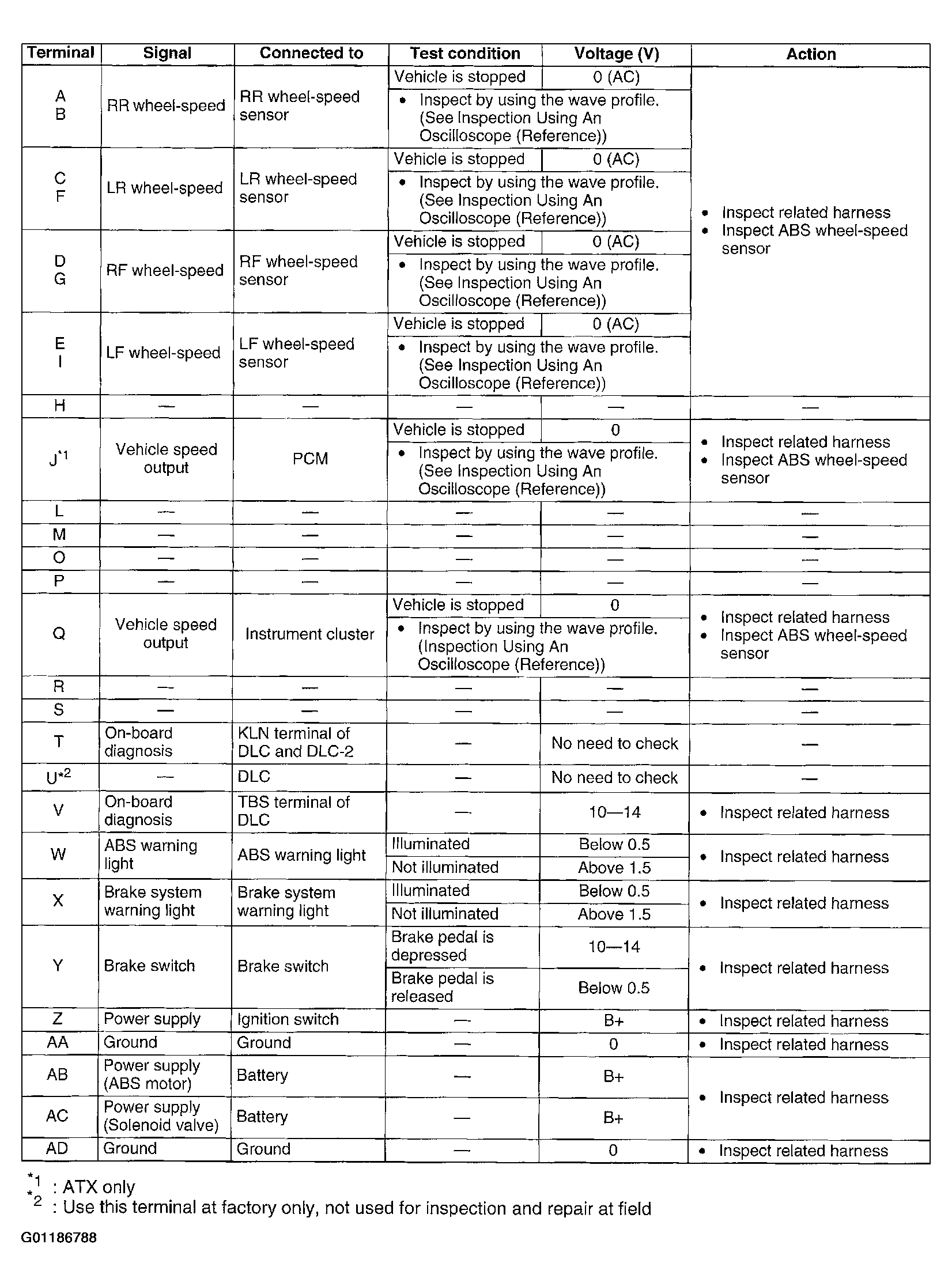

Fig 2: Identifying ABS HU/CM Terminal Voltage Values

Courtesy of MAZDA MOTORS CORP.
