Connector Installation Note

  1. Verify that the lock lever of the harness connector is completely pulled up.

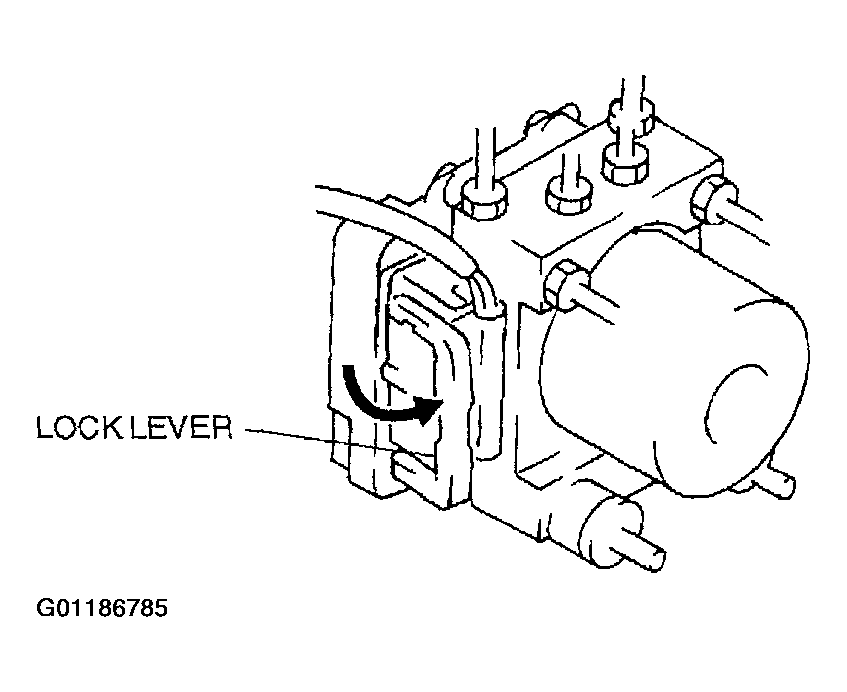

    Fig 1: Locking ABS HU/CM Lock Lever
    G01186785Courtesy of MAZDA MOTORS CORP.
