Abs Hydraulic Unit (HU)/Control Module (Cm) Removal/Installation: Notes

CAUTION: Do not drop the ABS Hydraulic Unit (HU)/Control Module (CM). Replace it if it is subjected to an impact.

Remove the battery and battery tray.
Remove in the order indicated in the illustration.

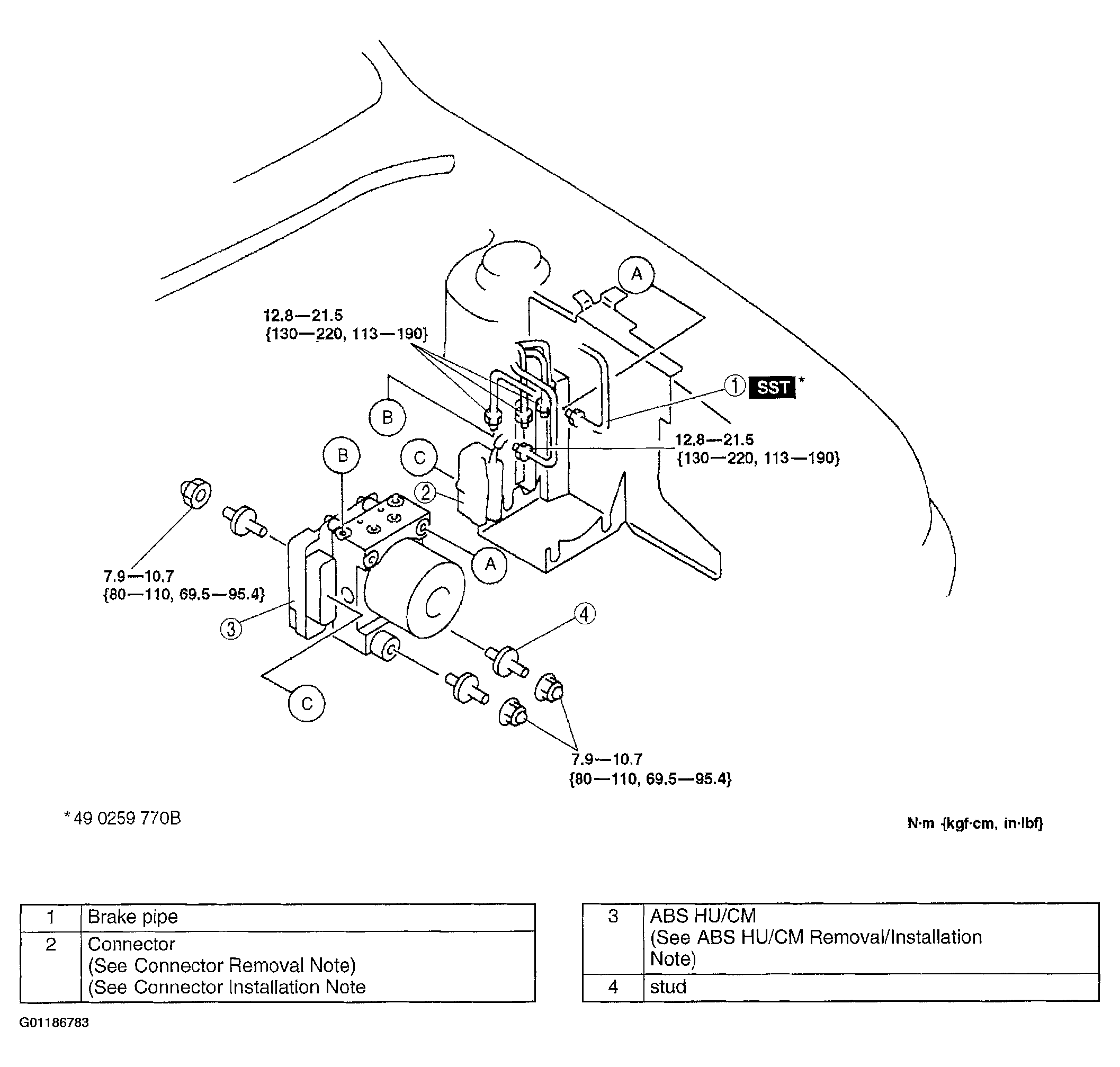

Fig 1: Removing/Installing ABS Hydraulic Unit/Control Module
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
