Rear Abs Wheel-Speed Sensor Removal/Installation

For 4SD, remove the rear seat back. See REAR SEAT REMOVAL/INSTALLATION . For 5HB, remove the trunk side trim. See TRUNK SIDE TRIM REMOVAL/INSTALLATION .
Remove in the order indicated in the illustration.

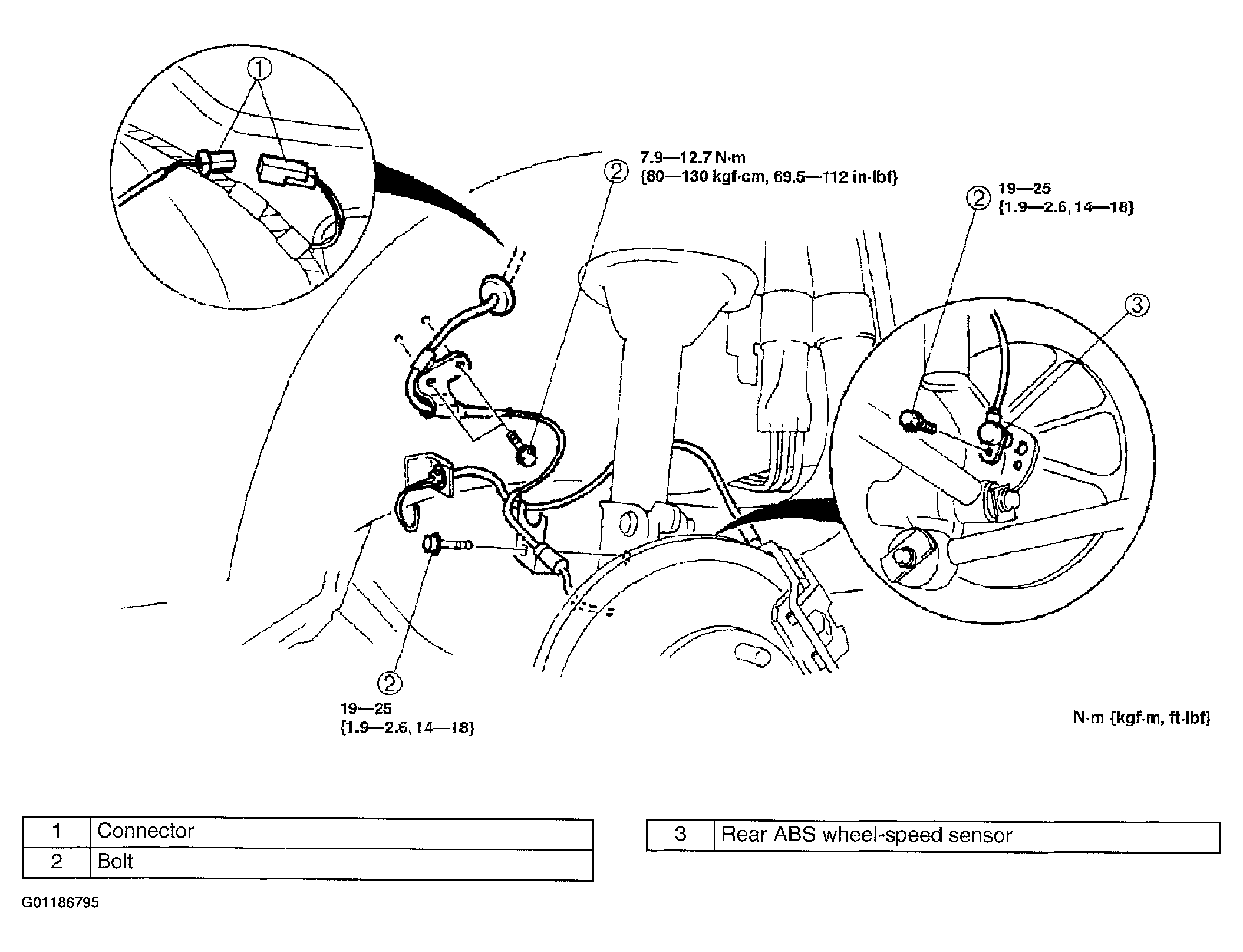

Fig 1: Removing/Installing Rear ABS Wheel-Speed Sensor
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
