Control Units

CONTROL UNITS LOCATION

Component Component Location

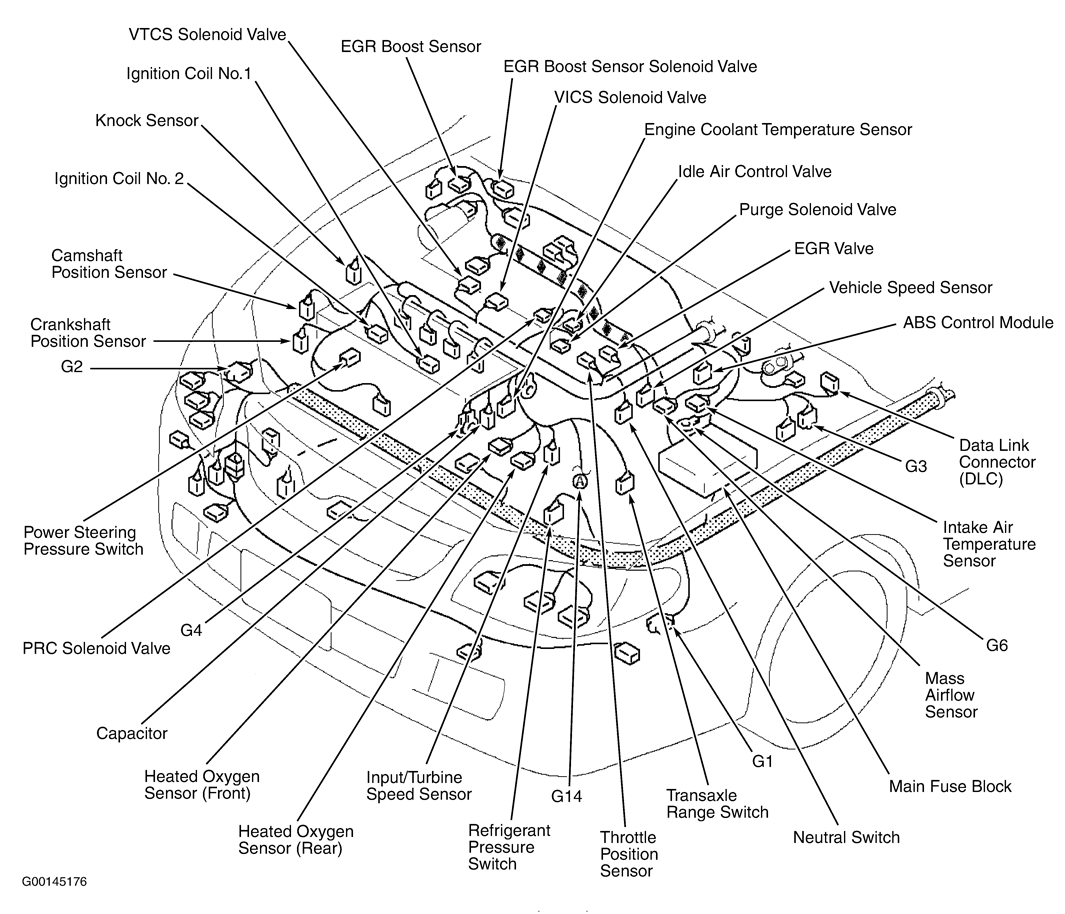

ABS Control Module At left rear corner of engine compartment. See Figure .
Cruise Control Module Behind right side of dash. See Figure .
Door Lock Control Module Behind left side of dash. See Figure .
DRL Control Module Behind left side of dash. See Figure .
Flasher Control Module Behind left side of dash. See Figure .
Keyless Control Module At center front of trunk.
PCM Behind right side of dash. See Figure .
SAS Control Module Behind lower center of dash. See Figure .
