Front Door Glass And Guide Removal/Installation

Lower or raise the front door glass so that the distance from the top of the front door glass at the rear end to the upper part of the front beltline molding is 130 mm {5.12 in} .

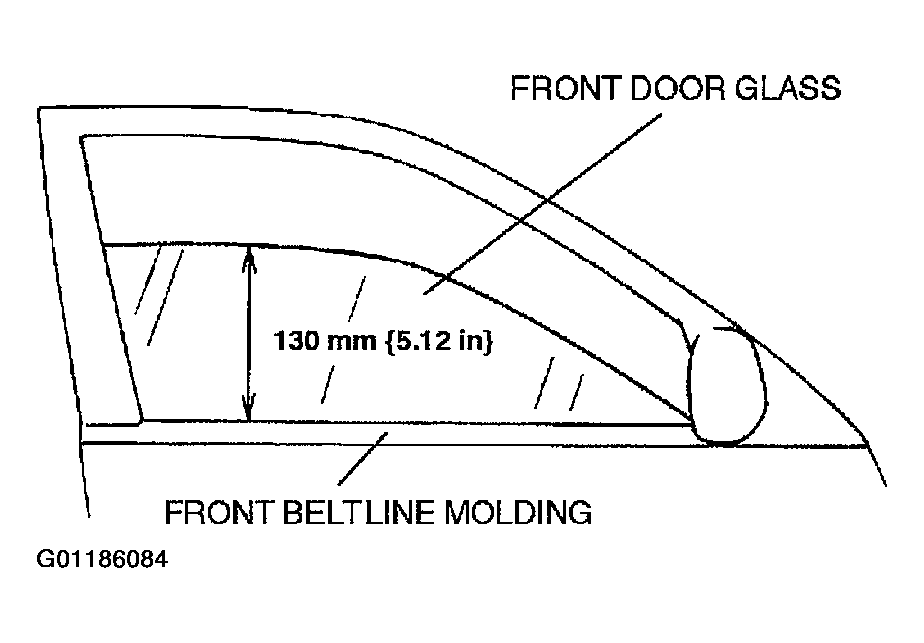

Fig 1: Measuring Door Glass Above Front Beltline Molding
Courtesy of MAZDA MOTORS CORP.
Disconnect the negative battery cable.
Remove the front door trim. See FRONT DOOR TRIM REMOVAL/INSTALLATION .
Remove the inner handle.
Remove in the order indicated in the illustrations.

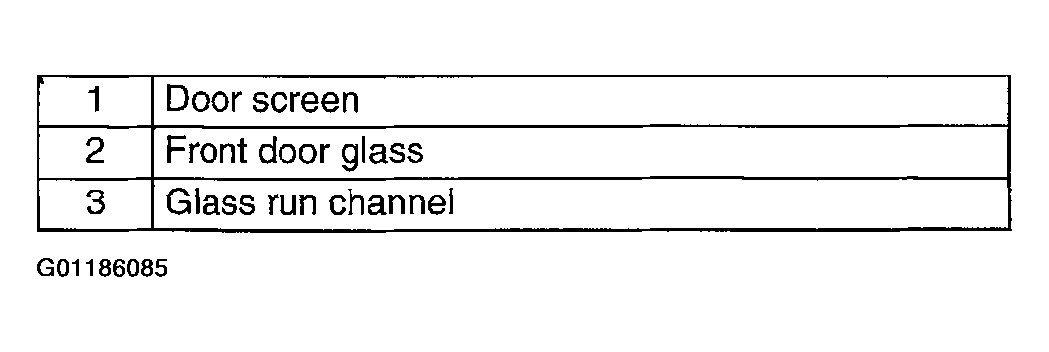

Fig 2: Removing/Installing Front Door Glass & Guide (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

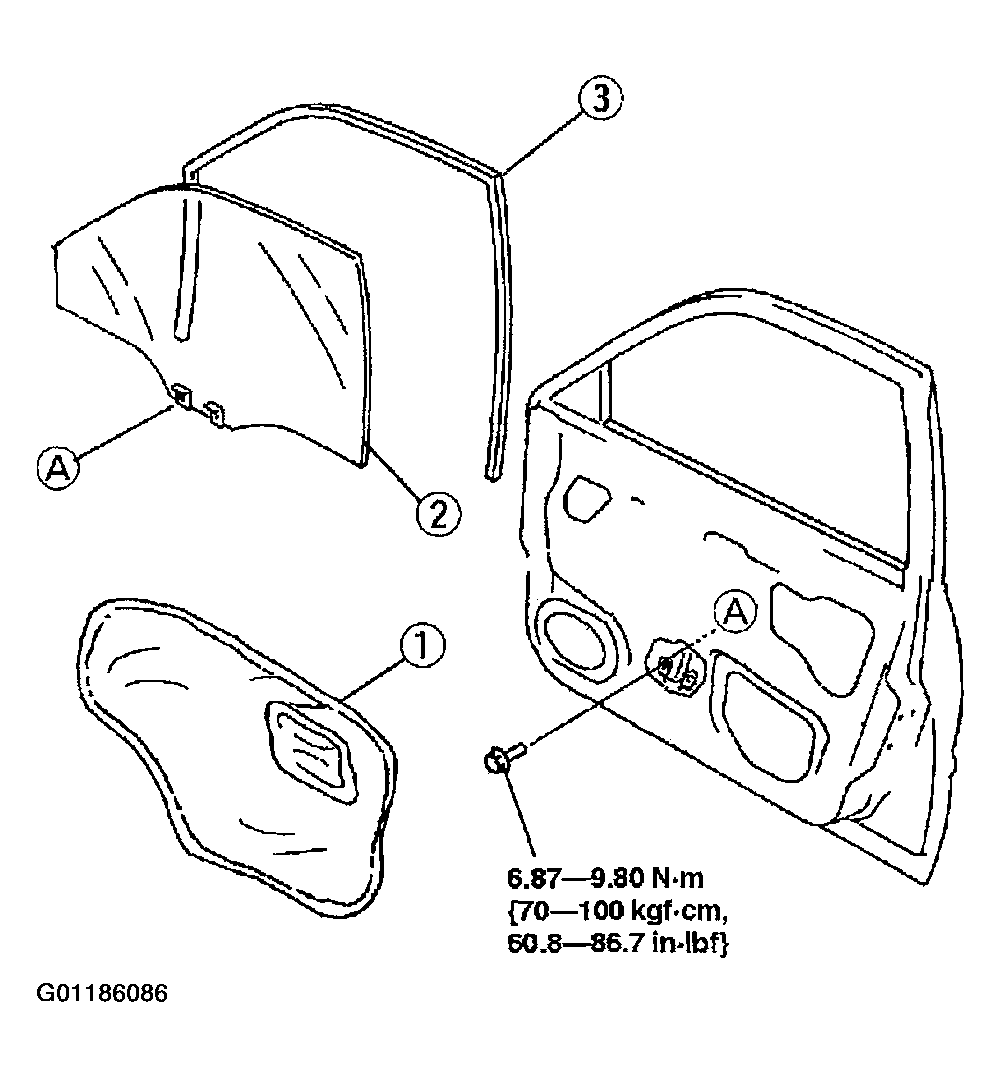

Fig 3: Removing/Installing Front Door Glass & Guide (1 Of 2)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
