Power Window Main Switch Inspection
>>
Driver's Side
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Driver's Side

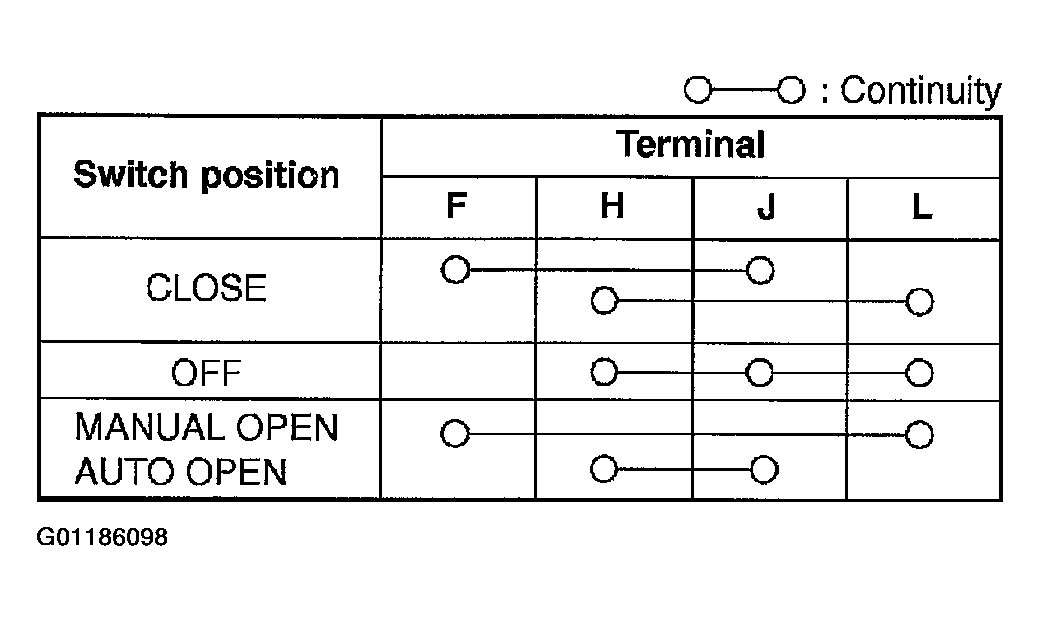

Fig 1: Power Window Main Switch Driver's Side Switch Continuity Check
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
