Power Window Main Switch Inspection
>>
Rear Right
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Rear Right

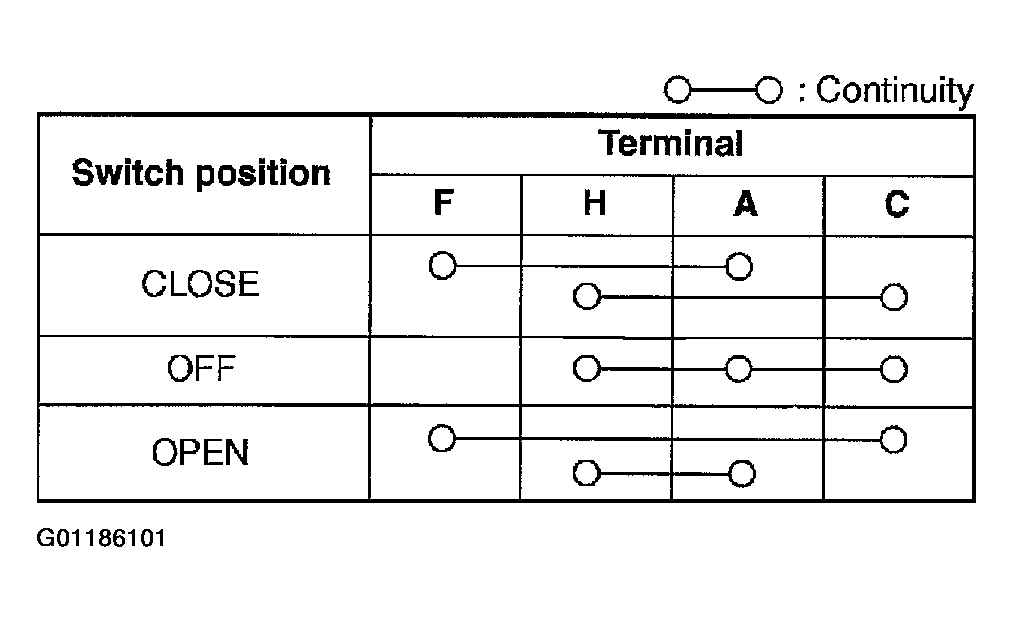

Fig 1: Power Window Main Switch Rear Right Switch Continuity Check
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
