Connector Removal Note

  1. Pull the lock lever up and make it unlock.
  2. Remove the connector.

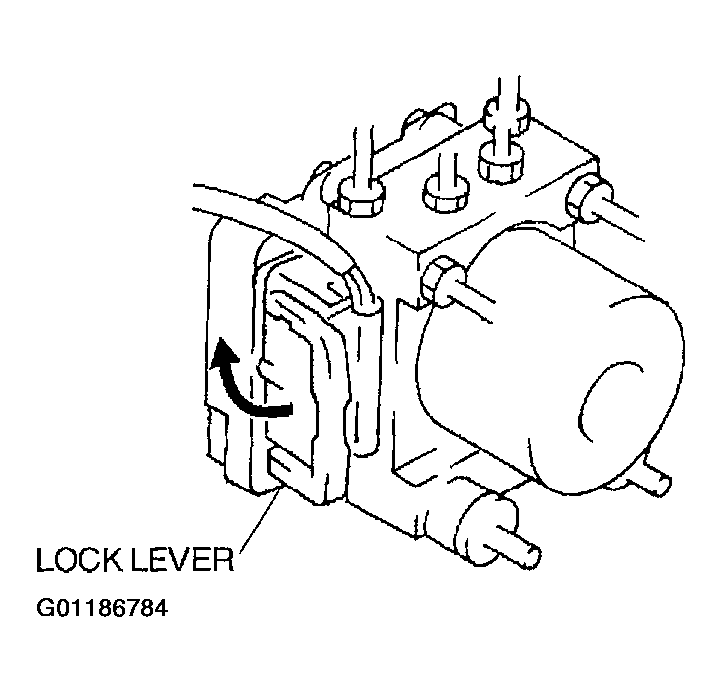

    Fig 1: Unlocking ABS HU/CM Lock Lever
    G01186784Courtesy of MAZDA MOTORS CORP.
