Diagnostic Trouble Codes Table

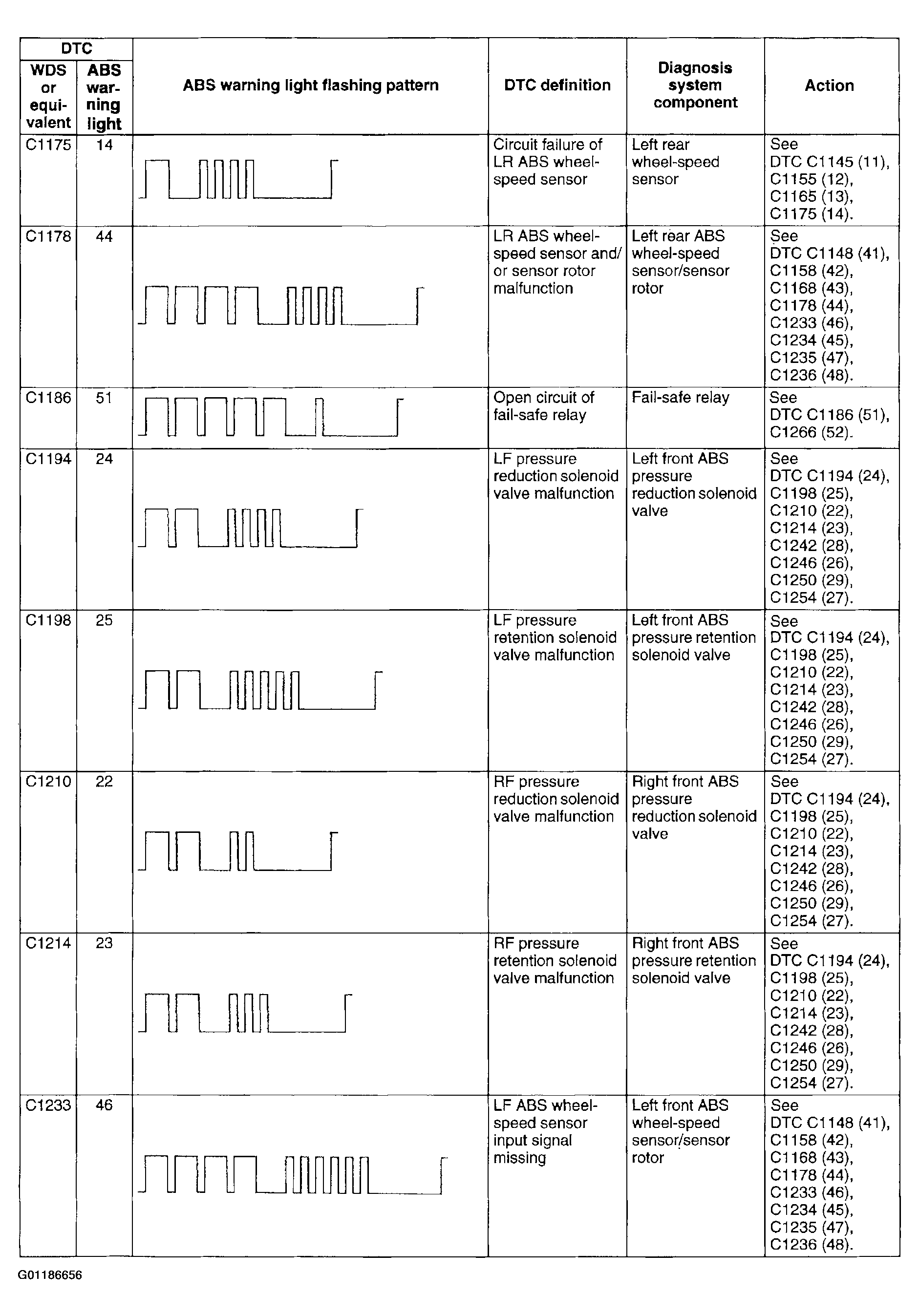

Fig 1: DTC Table (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

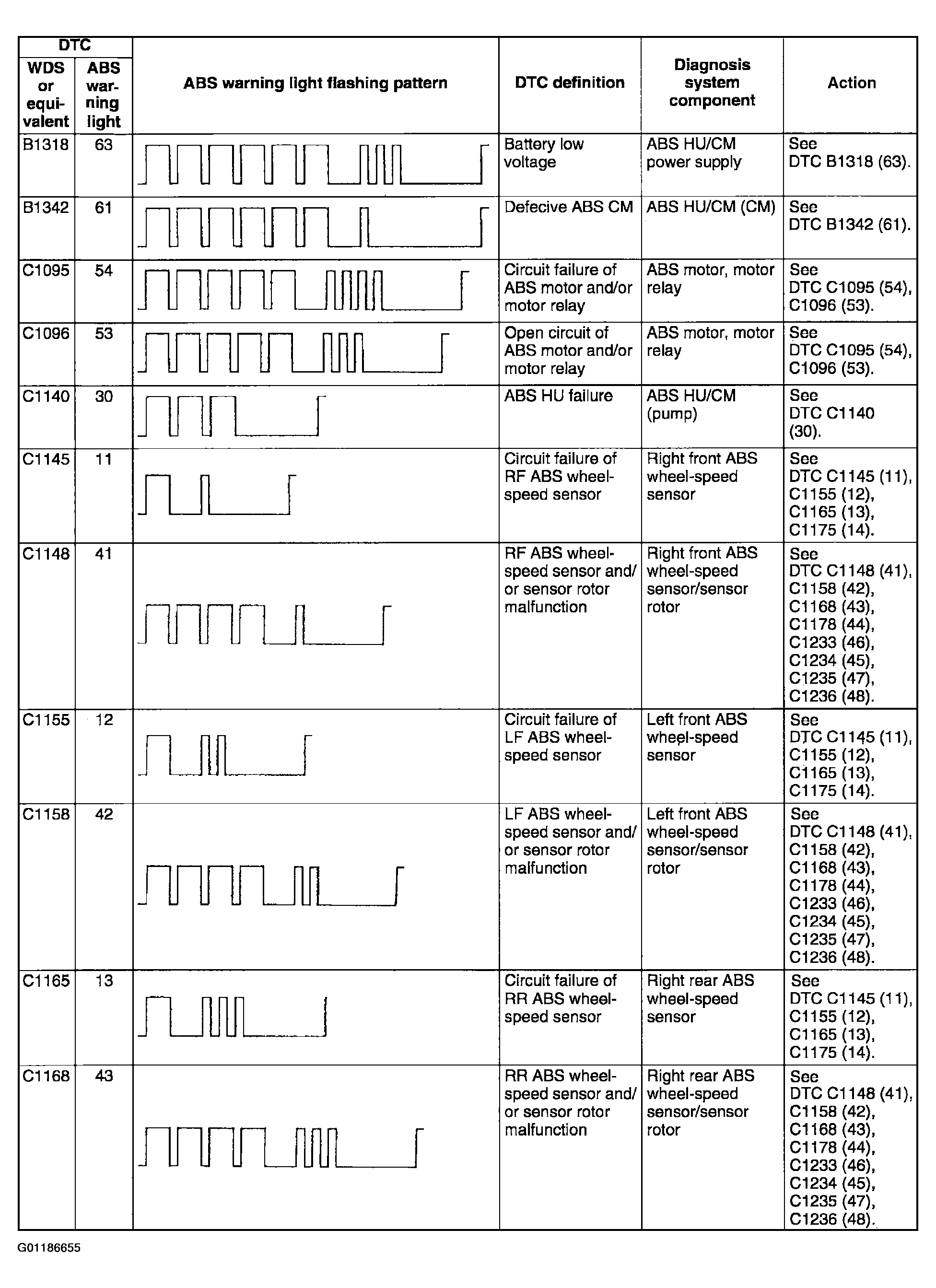

Fig 2: DTC Table (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

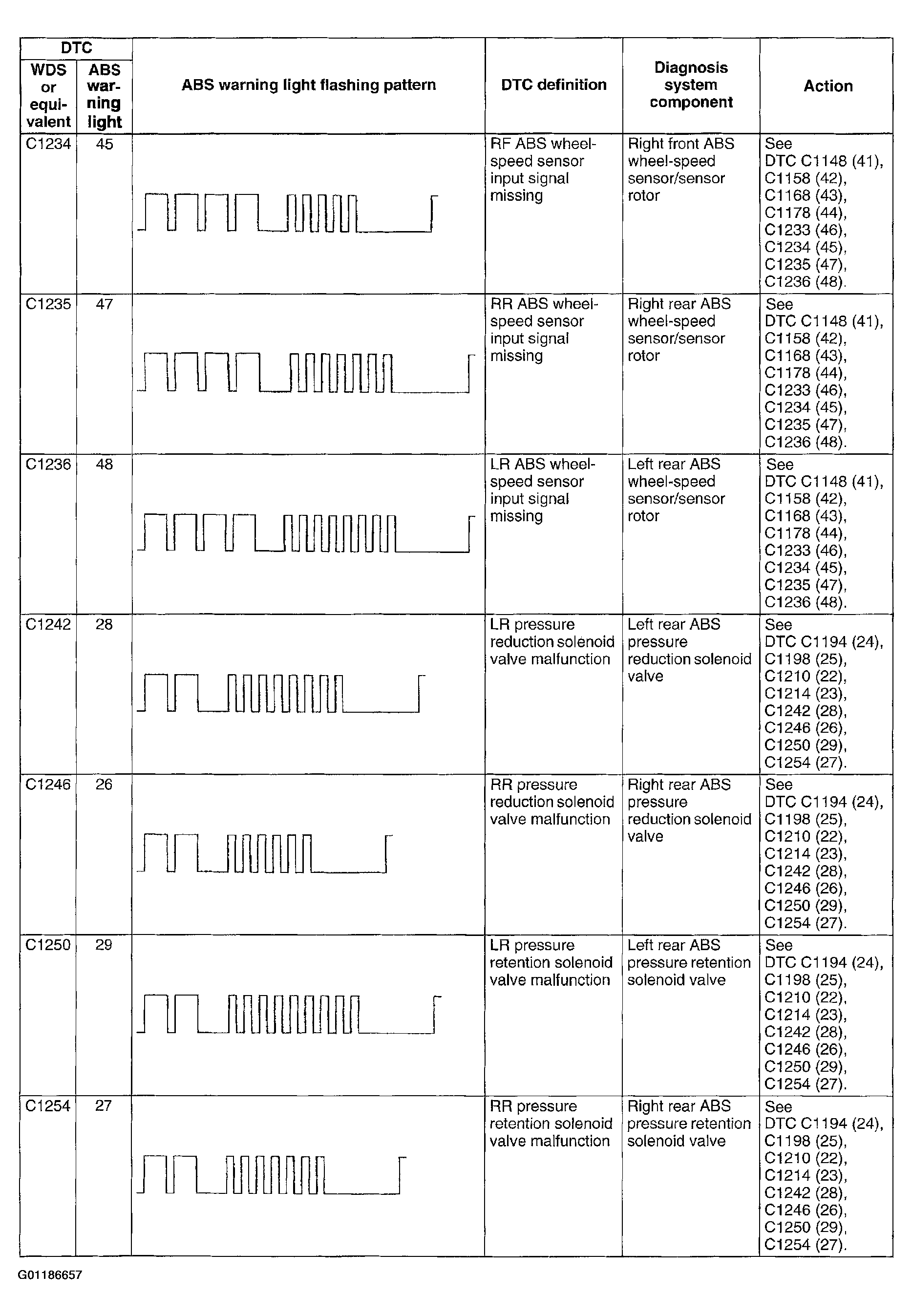

Fig 3: DTC Table (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

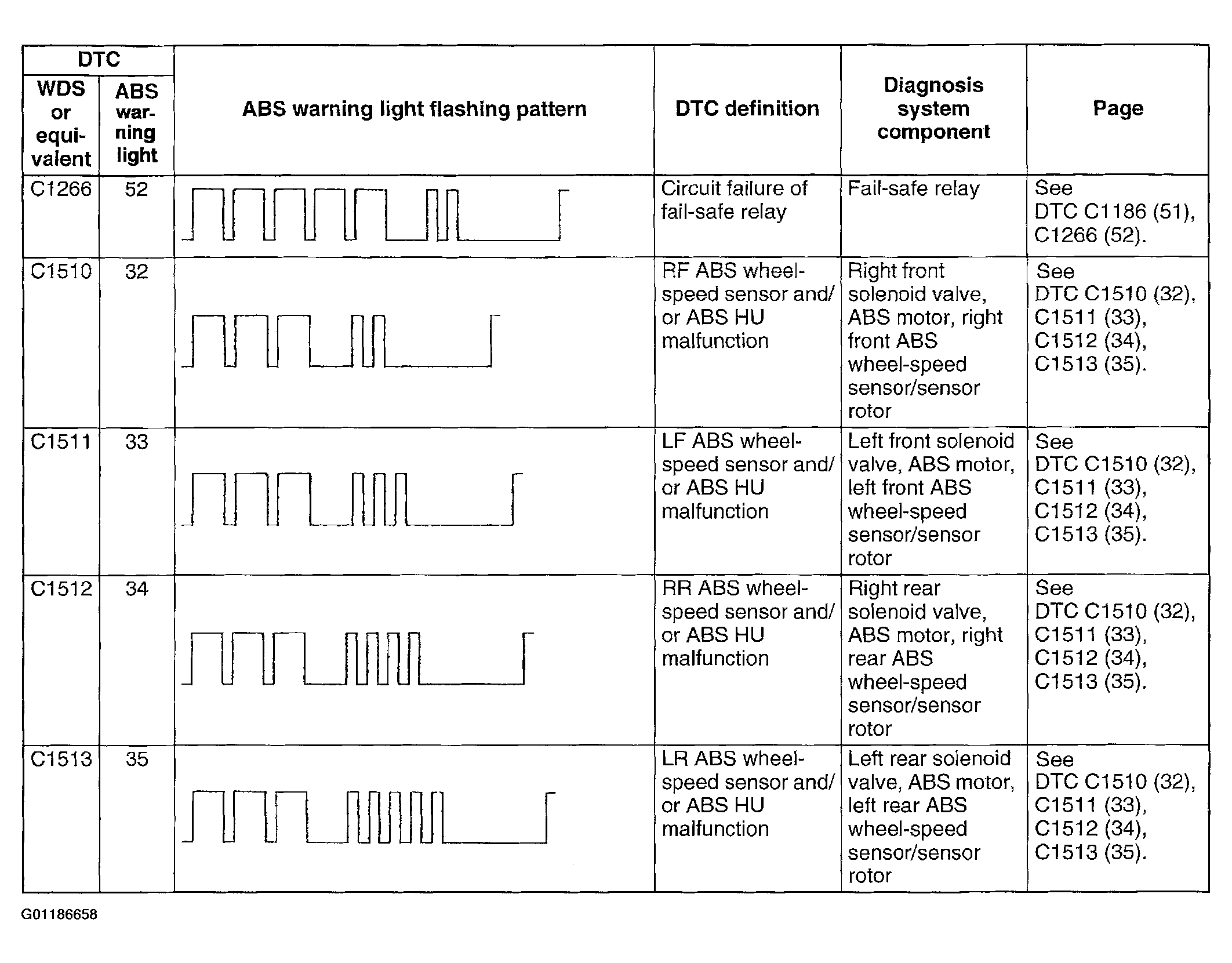

Fig 4: DTC Table (4 Of 4)

Courtesy of MAZDA MOTORS CORP.

DIAGNOSTIC TROUBLE CODES (DTC) LIST

DTC	Description
DTC C1145 (11), C1155 (12), C1165 (13), C1175 (14)	ABS WHEEL SPEED SENSOR
DTC C1148 (41), C1158 (42), C1168 (43), C1178 (44), C1233 (46), C1234 (45), C1235 (47), C1236 (48)	ABS WHEEL SPEED SENSOR/SENSOR ROTOR
DTC C1194 (24), C1198 (25), C1210 (22), C1214 (23), C1242 (28), C1246 (26), C1250 (29), C1254 (27)	PRESSURE REDUCTION/RETENTION VALVE
DTC C1140 (30)	ABS HU/CM (PUMP)
DTC C1510 (32), C1511 (33), C1512 (34), C1513 (35)	SOLENOID VALVE, ABS MOTOR OR ABS WHEEL SPEED SENSOR/SENSOR ROTOR
DTC C1186 (51), C1266 (52)	FAIL-SAFE RELAY
DTC C1095 (54), C1096 (53)	MOTOR RELAY, ABS MOTOR
DTC B1342 (61)	ABS HU/CM (CM)
DTC B1318 (63)	ABS HU/CM POWER SUPPLY
