Troubleshooting Index - Power Windows: Notes

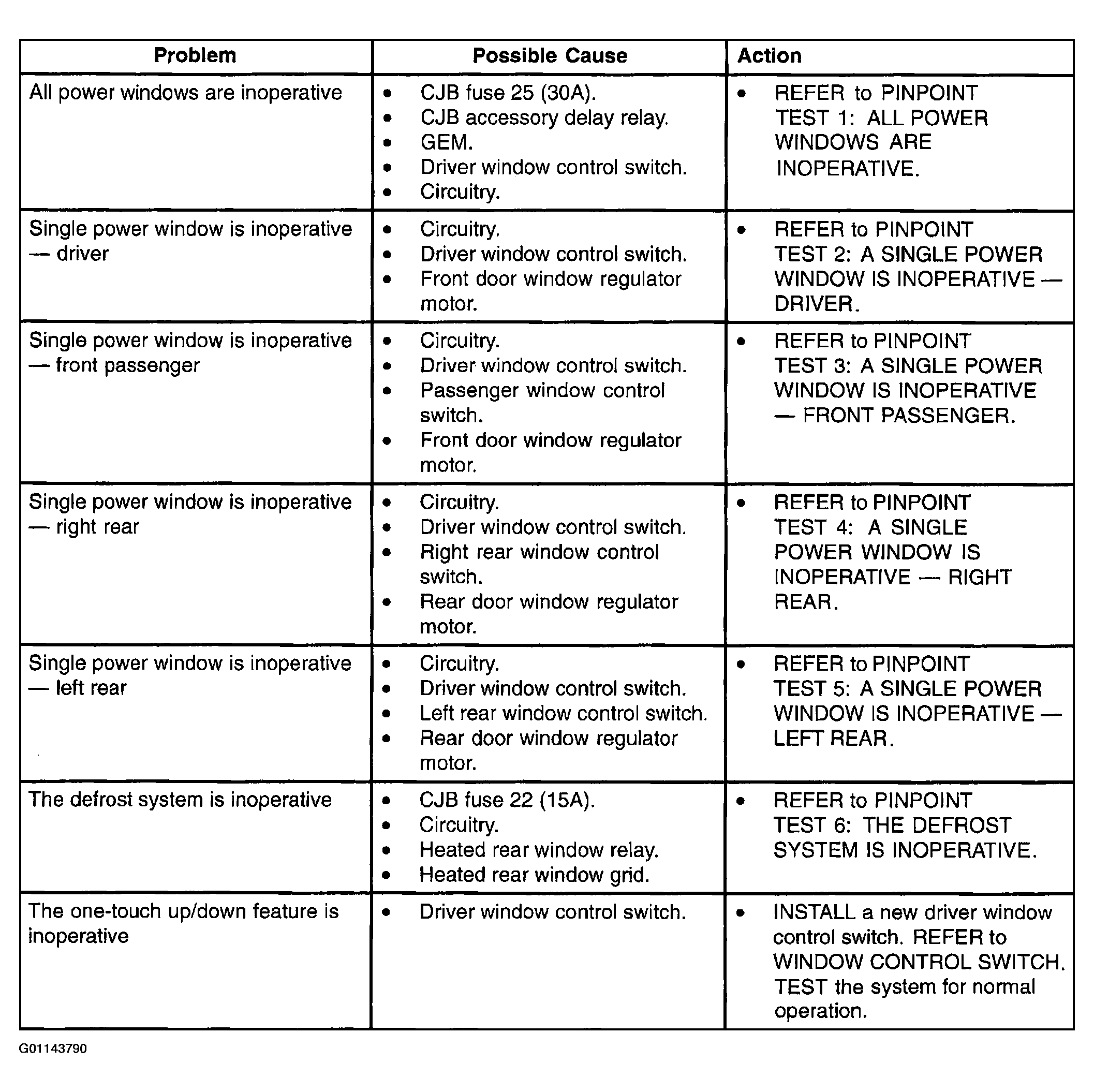

Fig 1: Troubleshooting Index - Power Windows (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Troubleshooting Index - Power Windows (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

PINPOINT TEST

PINPOINT TEST	DESCRIPTION
PINPOINT TEST 1	ALL POWER WINDOWS ARE INOPERATIVE
PINPOINT TEST 2	A SINGLE POWER WINDOW IS INOPERATIVE - DRIVER
PINPOINT TEST 3	A SINGLE POWER WINDOW IS INOPERATIVE - FRONT PASSENGER
PINPOINT TEST 4	A SINGLE POWER WINDOW IS INOPERATIVE - RIGHT REAR
PINPOINT TEST 5	A SINGLE POWER WINDOW IS INOPERATIVE - LEFT REAR
