Removal & Installation

Disconnect the battery negative cable.
Remove the air cleaner.
Remove the air cleaner outlet pipe.
Disconnect the electrical connectors.

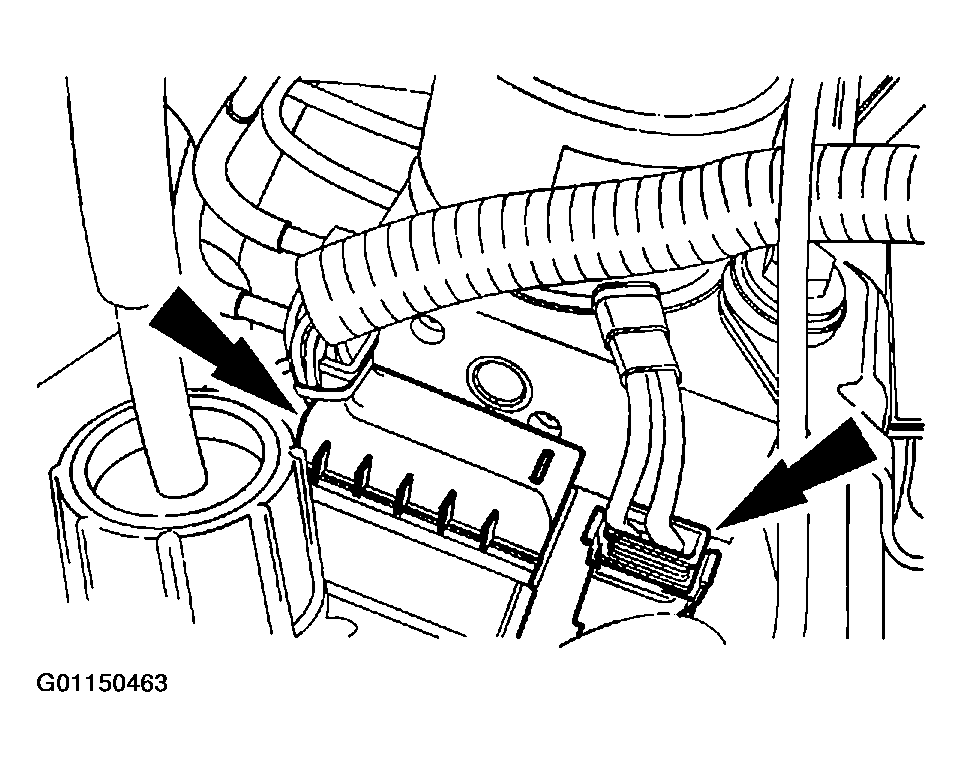

Fig 1: Disconnecting Electrical Connectors
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.

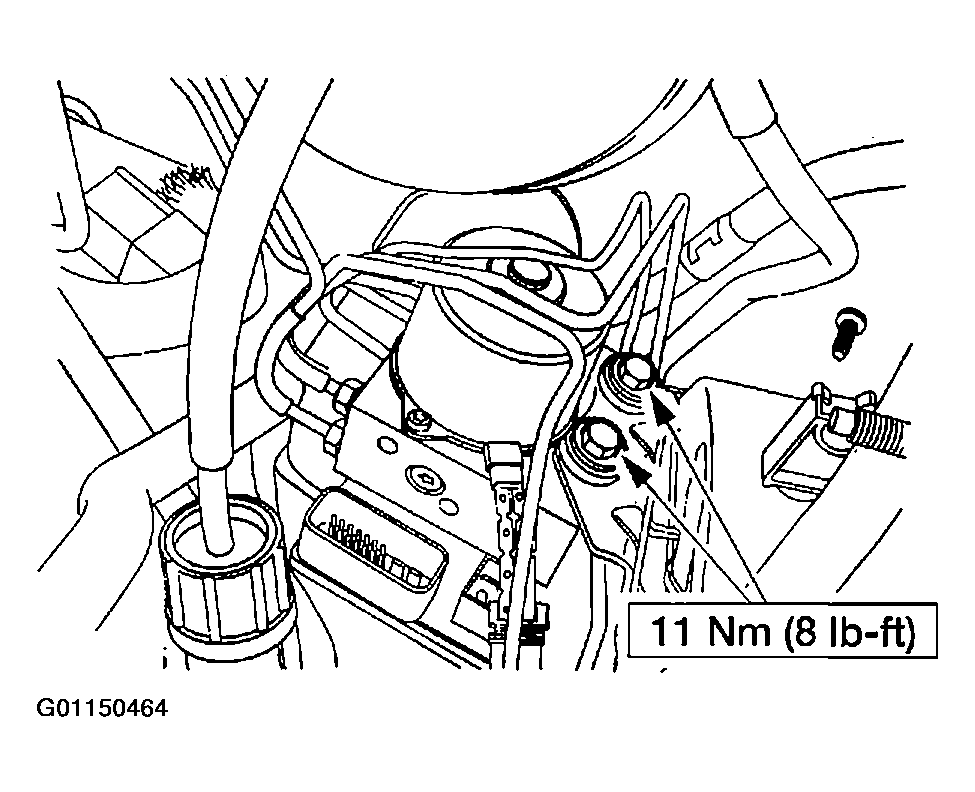

Fig 2: Removing Anti-Lock Brake Control Module Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the bolt.

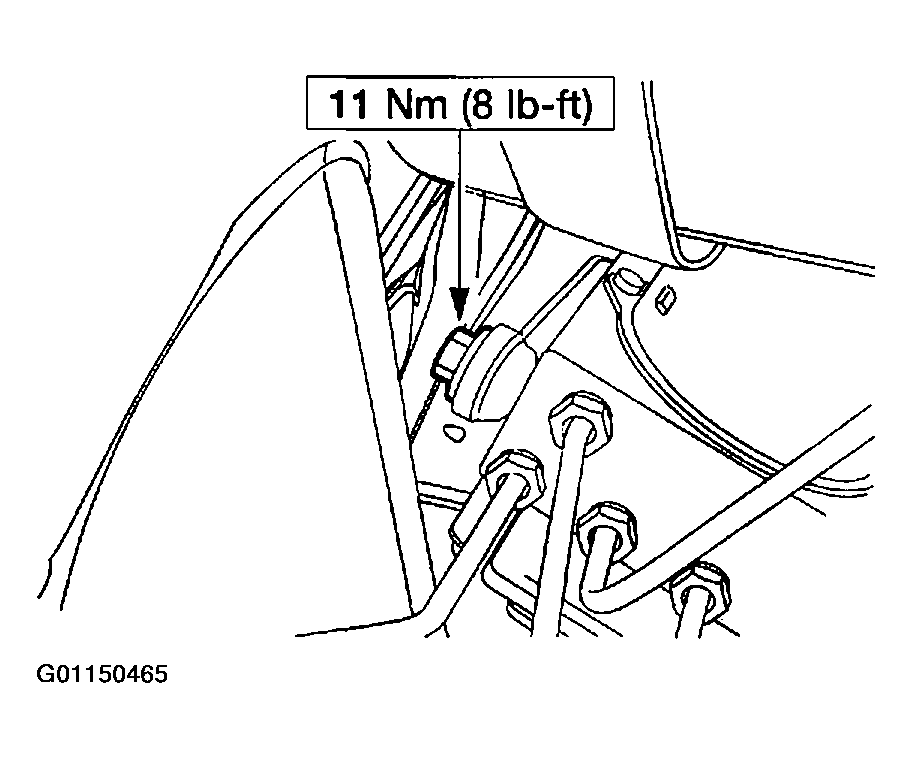

Fig 3: Removing Bolt
Courtesy of MAZDA MOTORS CORP.
Raise and support the vehicle.
Remove the screws and the control module.
NOTE: The 4x2 and 4x4 modules are not interchangeable. Before installing a module, verify its application.

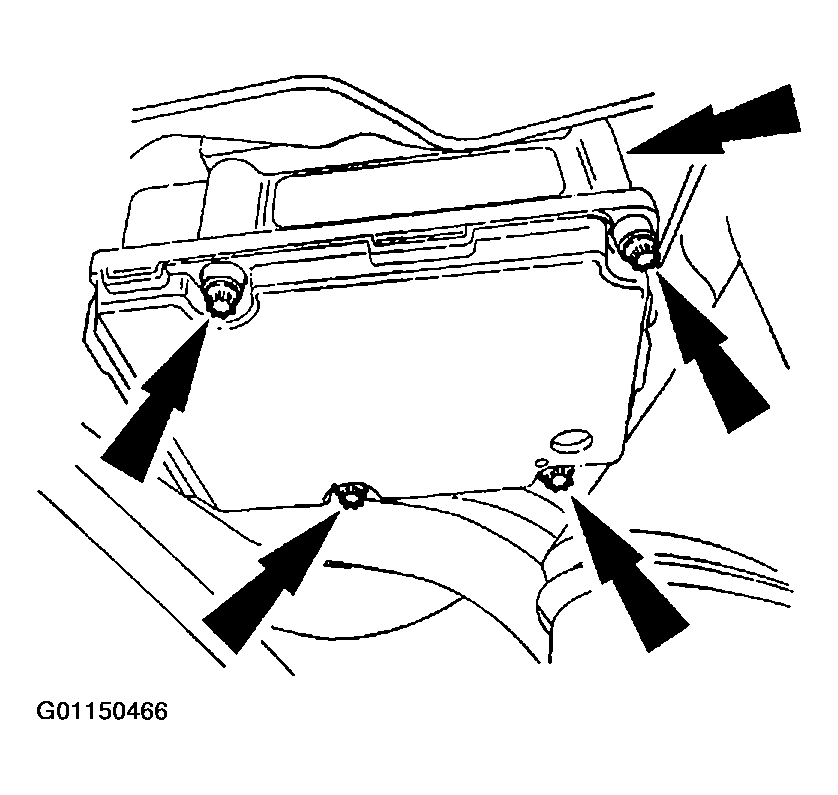

Fig 4: Removing Anti-Lock Brake Control Module
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
