Removal & Installation

Remove the wheel and tire. Refer to WHEELS AND TIRES .

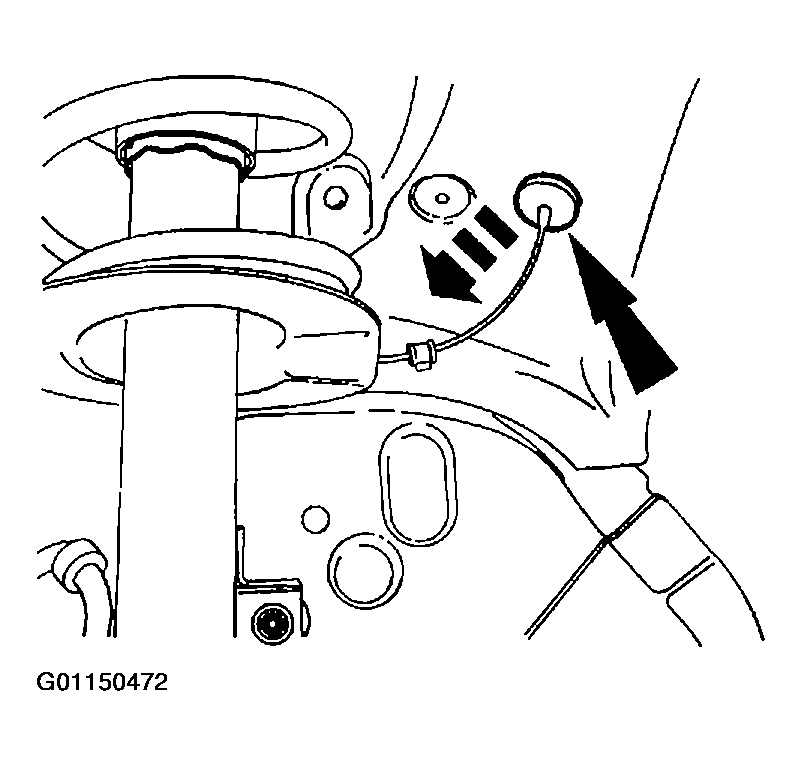

Detach the grommet from the body and pull the connector through the hole.

Fig 1: Removing Grommet
Courtesy of MAZDA MOTORS CORP.

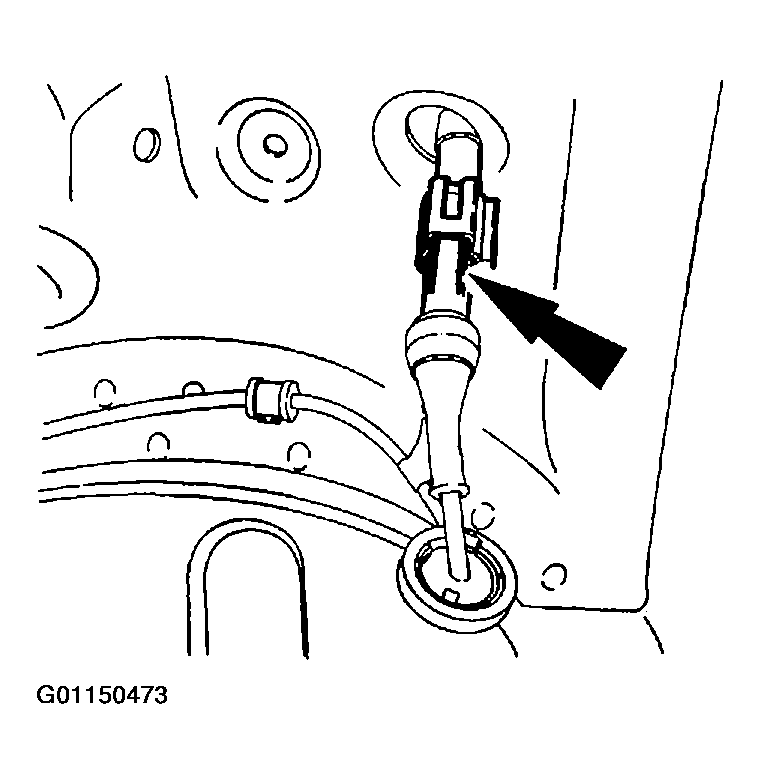

Disconnect the sensor wiring.

Fig 2: Disconnecting Sensor Wiring
Courtesy of MAZDA MOTORS CORP.

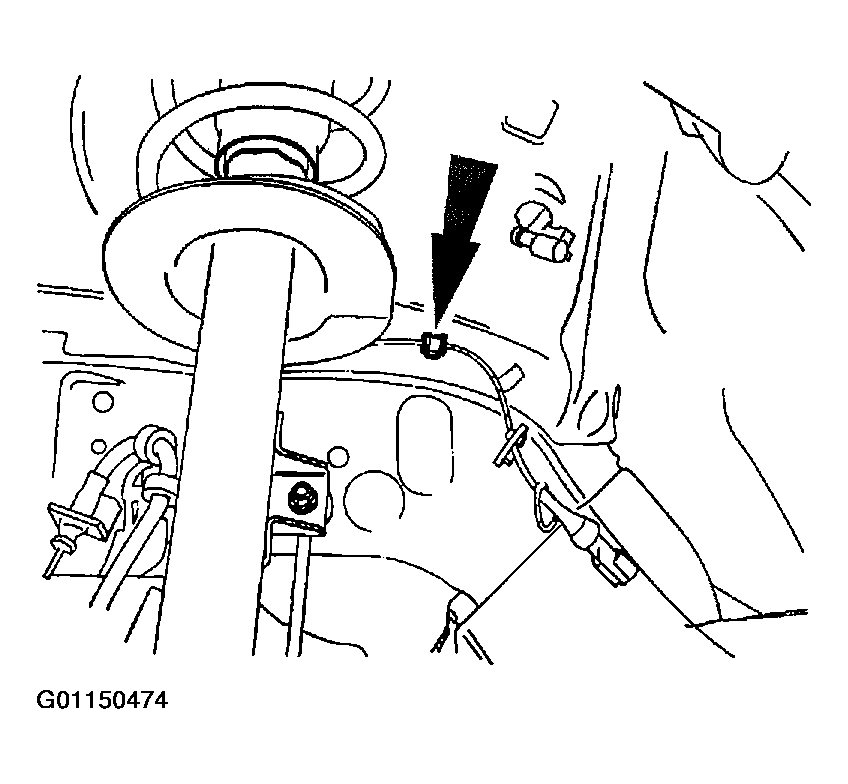

Detach the retainer.

Fig 3: Disconnecting Sensor Wiring Retainer
Courtesy of MAZDA MOTORS CORP.

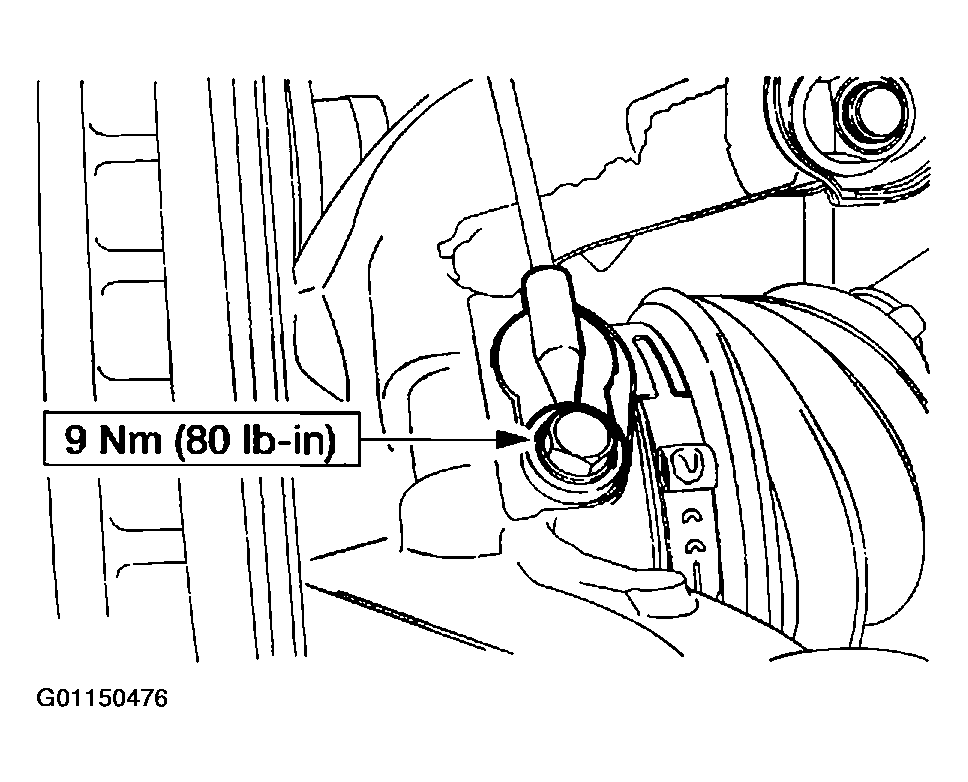

Remove the bolts.

Fig 4: Removing Bolts
Courtesy of MAZDA MOTORS CORP.

NOTE: Clean off any dirt that may have collected around the sensor before removal.

Fig 5: Removing Sensor

Courtesy of MAZDA MOTORS CORP.

NOTE: Thoroughly clean the mounting surface.
