Engine Control Module

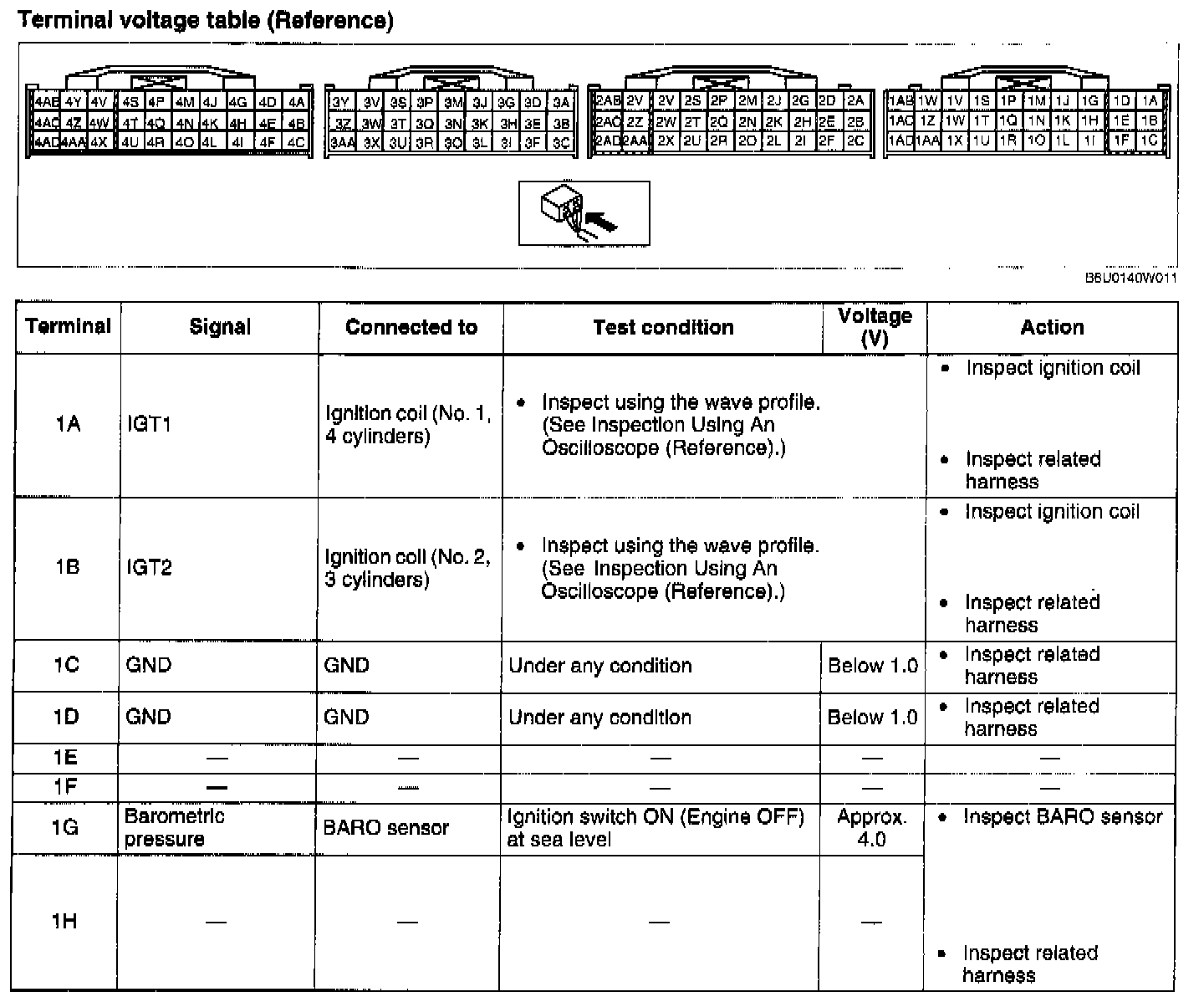

Terminal Voltage Table (Reference) - Terminals (1A - 1H):

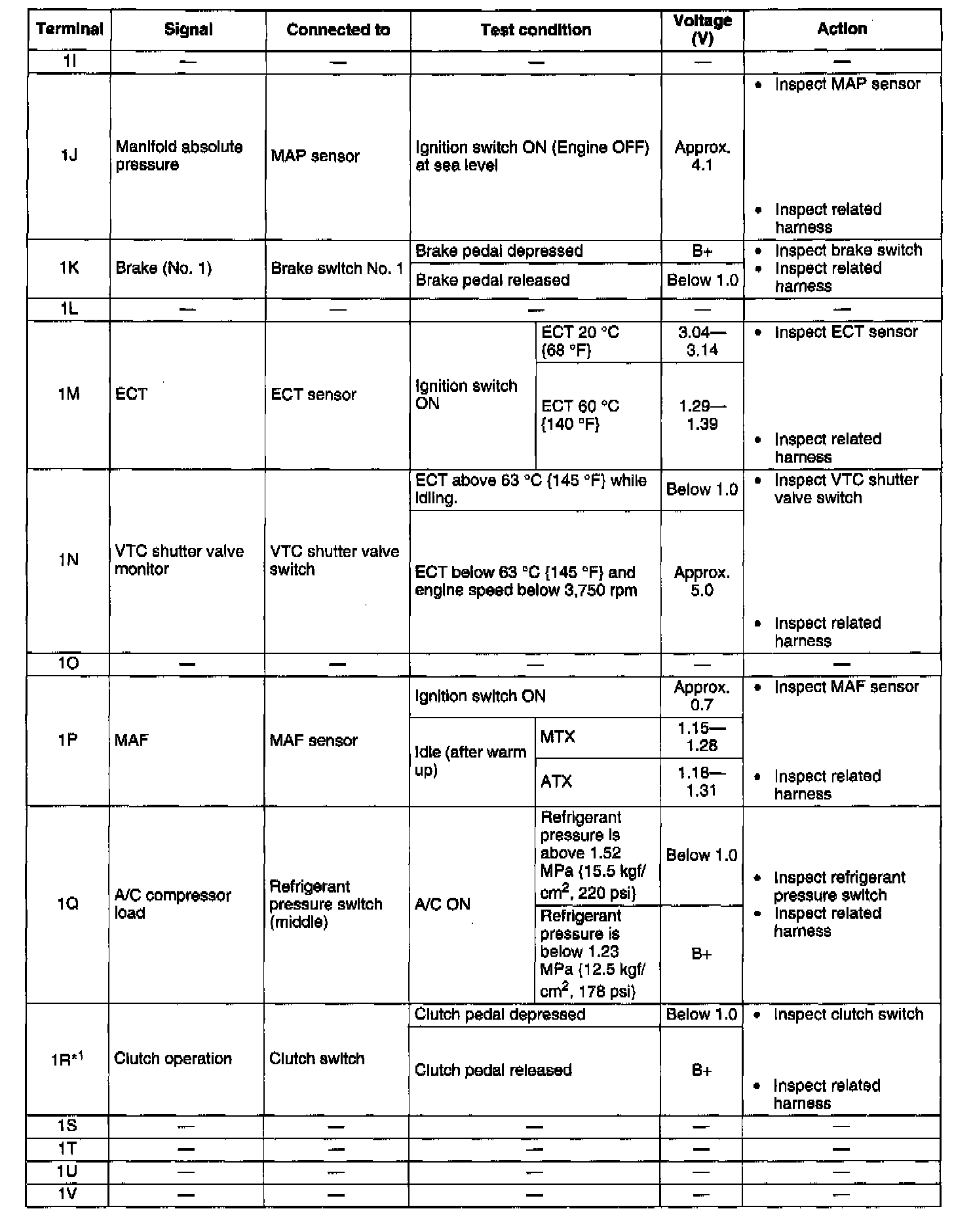

Terminal Voltage Table (Reference) - Terminals (1I - 1V):

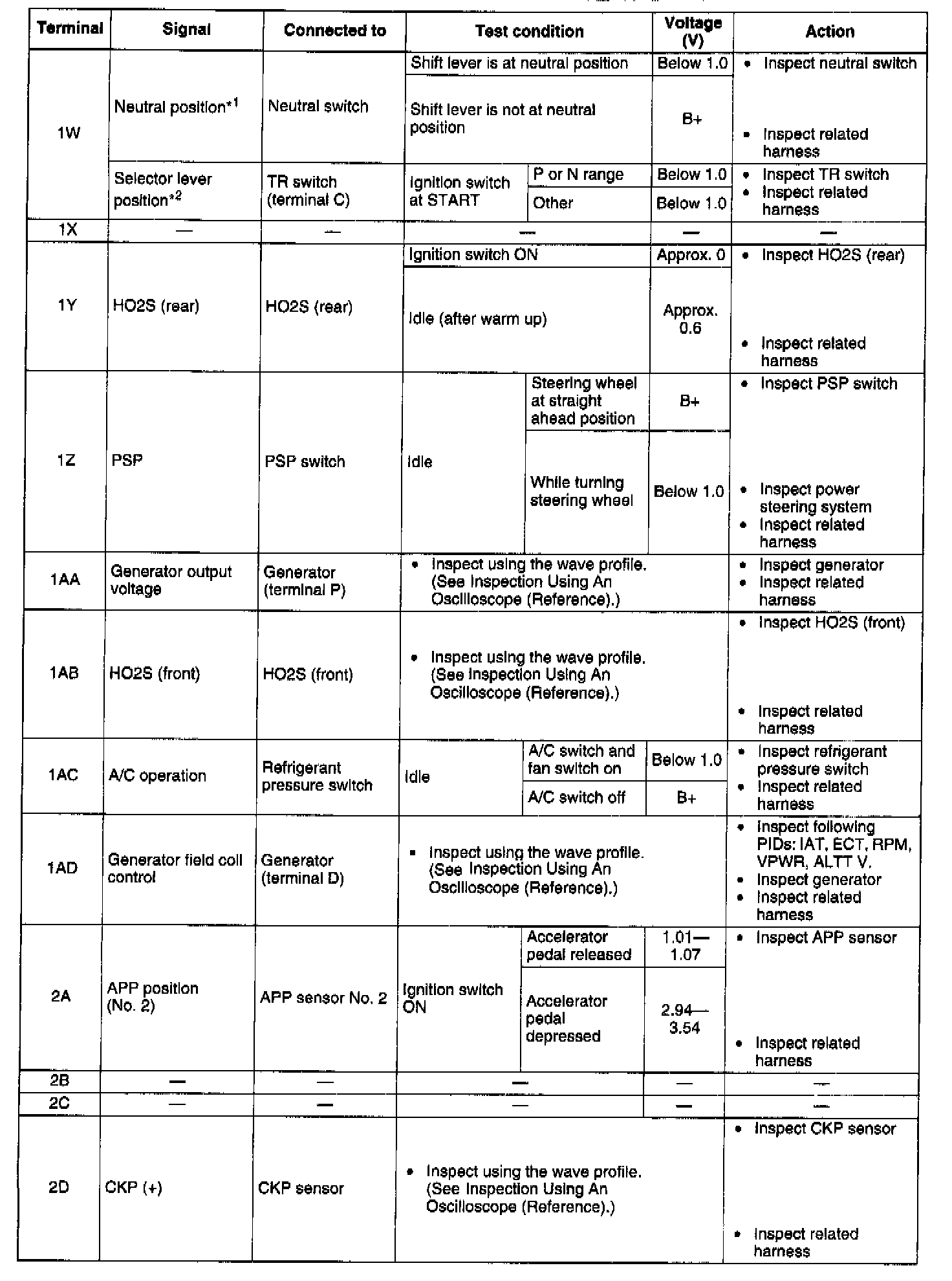

Terminal Voltage Table (Reference) - Terminals (1W - 2D):

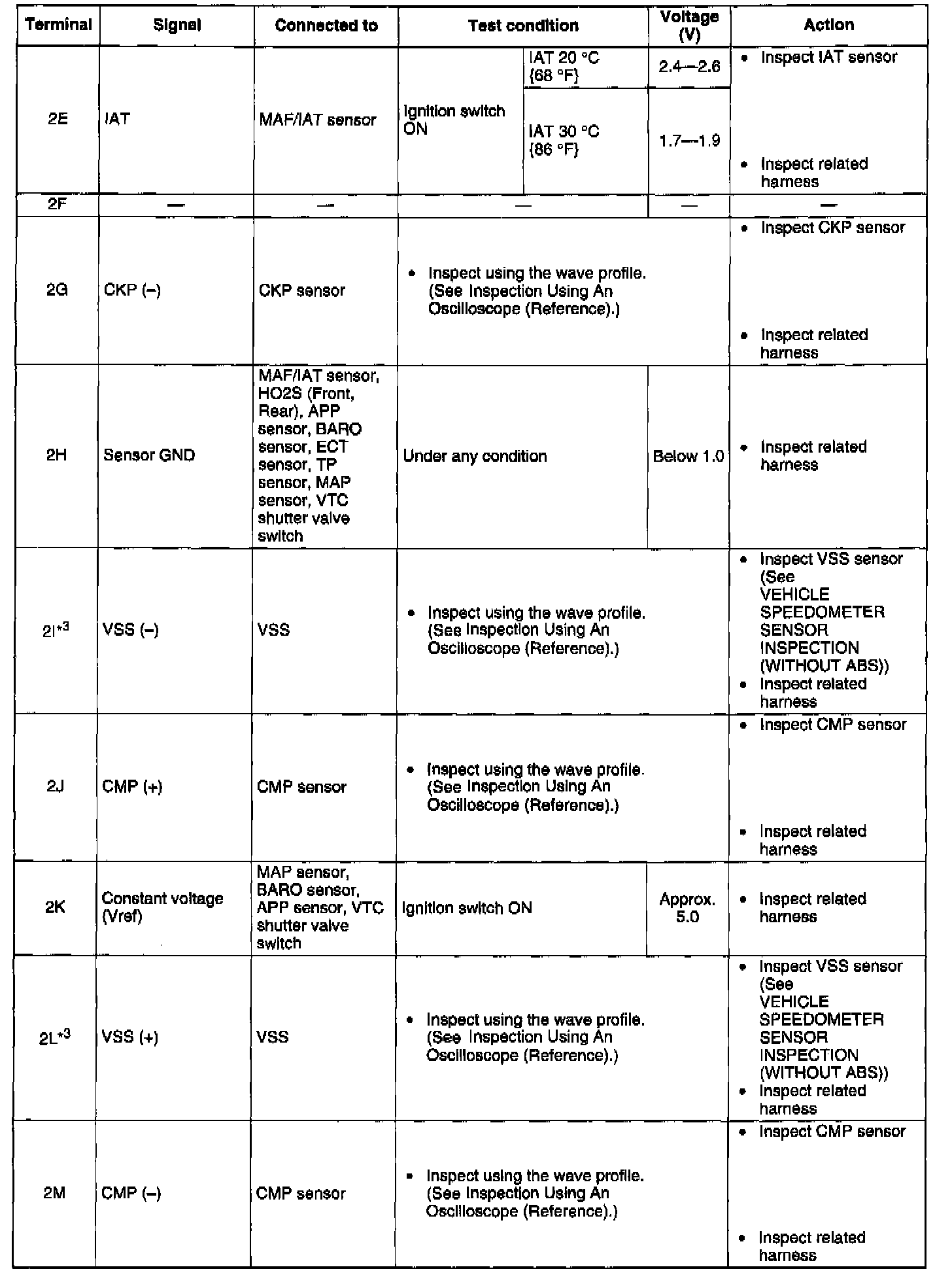

Terminal Voltage Table (Reference) - Terminals (2E - 2M):

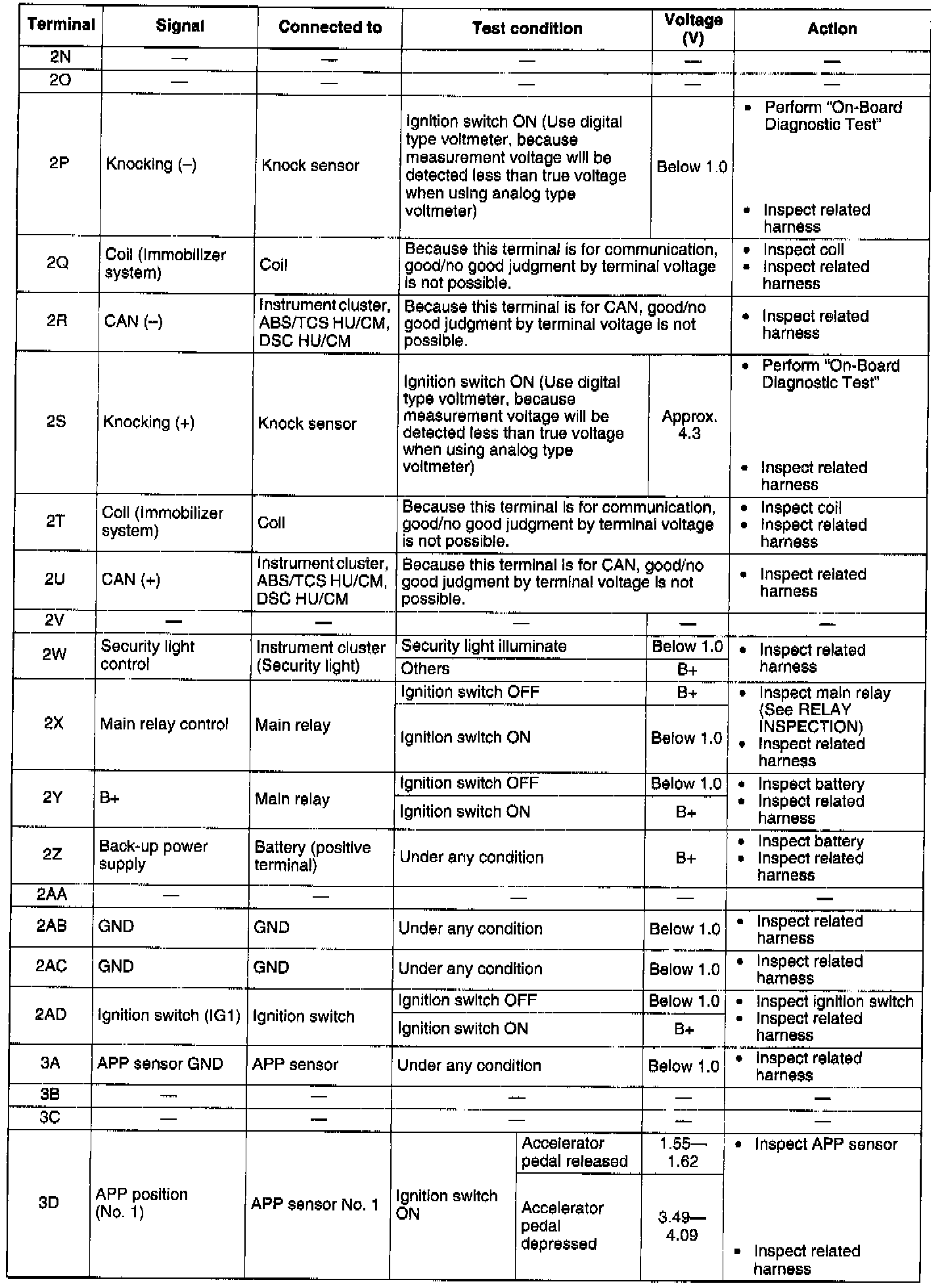

Terminal Voltage Table (Reference) - Terminals (2N - 3D):

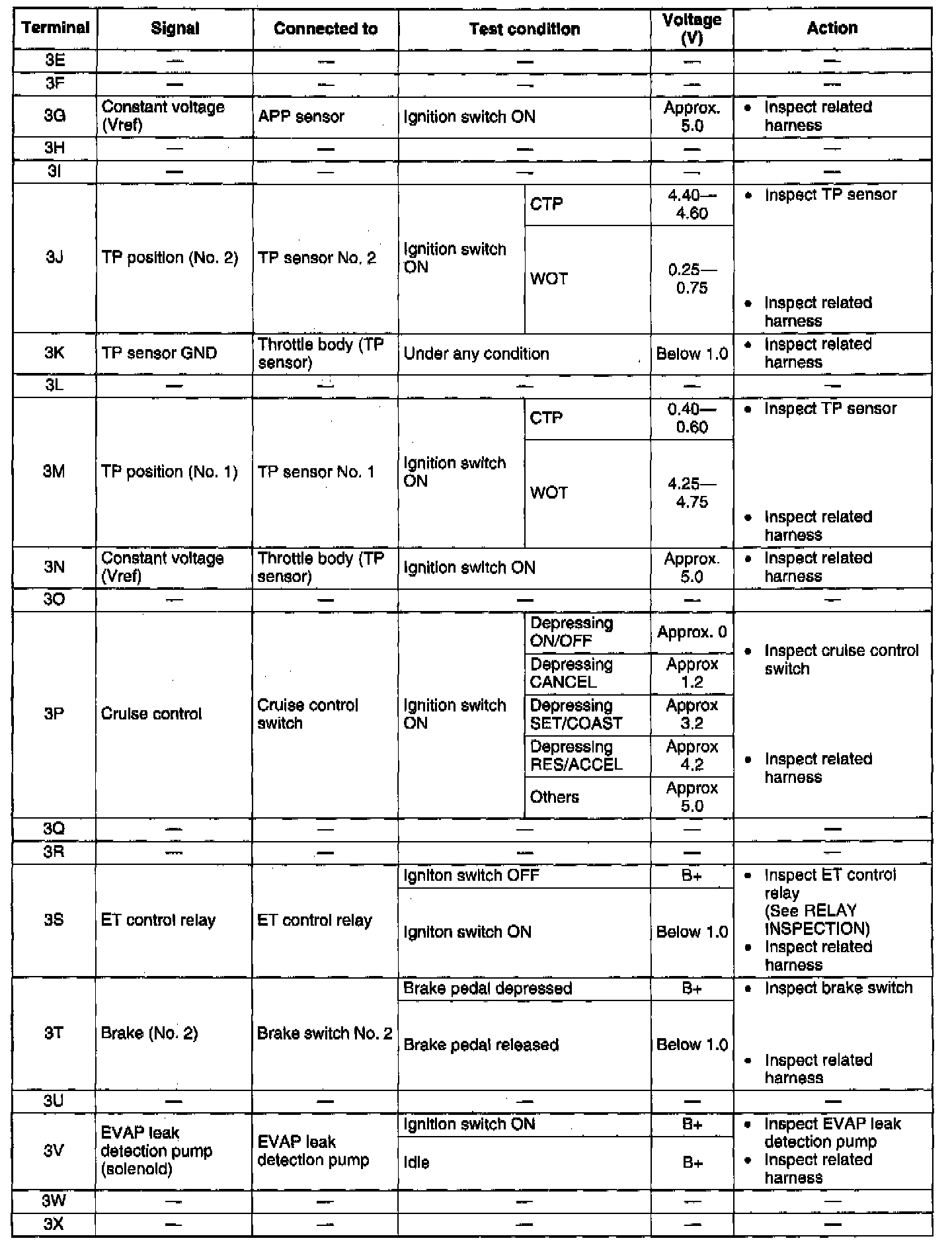

Terminal Voltage Table (Reference) - Terminals (3E - 3X):

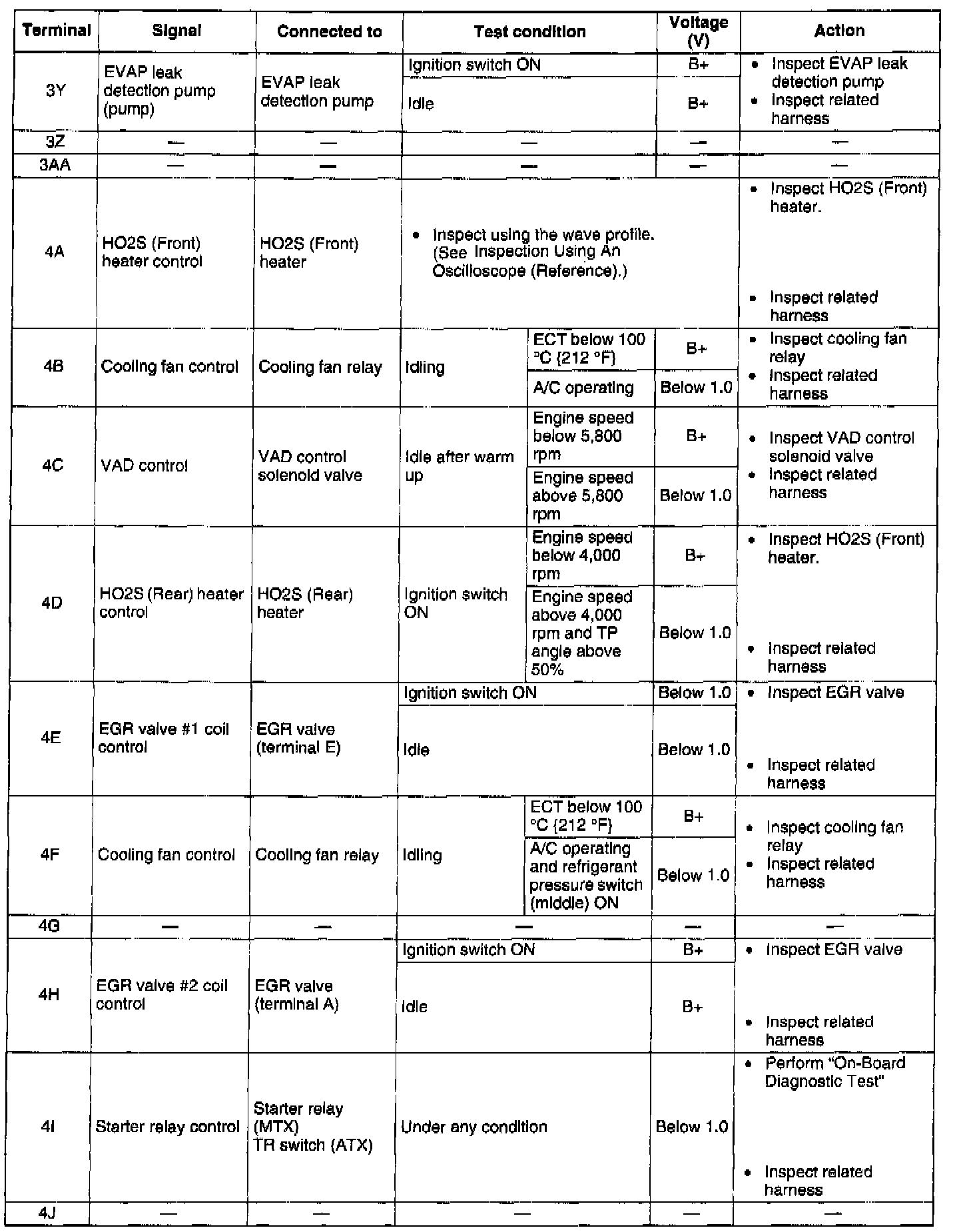

Terminal Voltage Table (Reference) - Terminals (3Y - 4J):

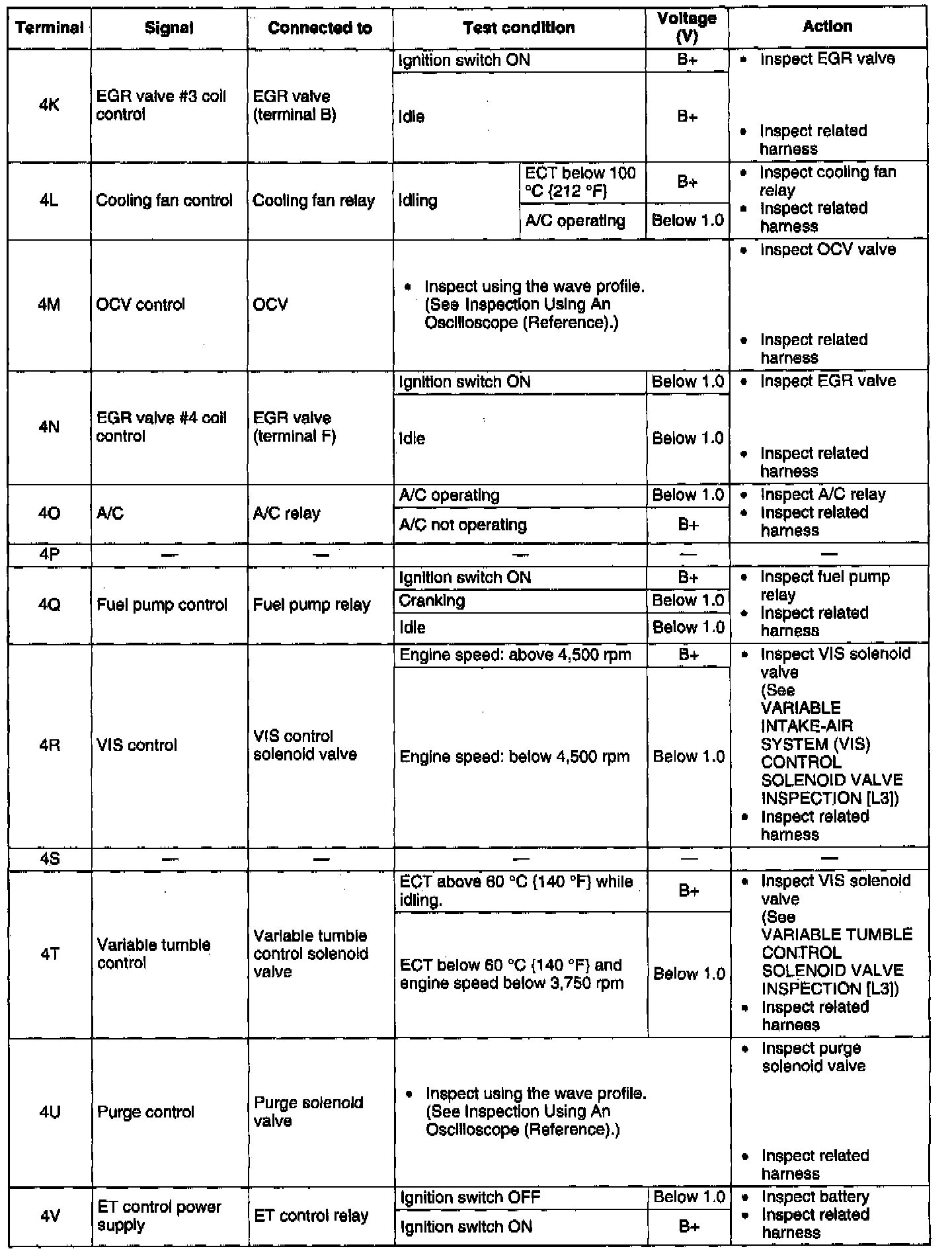

Terminal Voltage Table (Reference) - Terminals (4K - 4V):

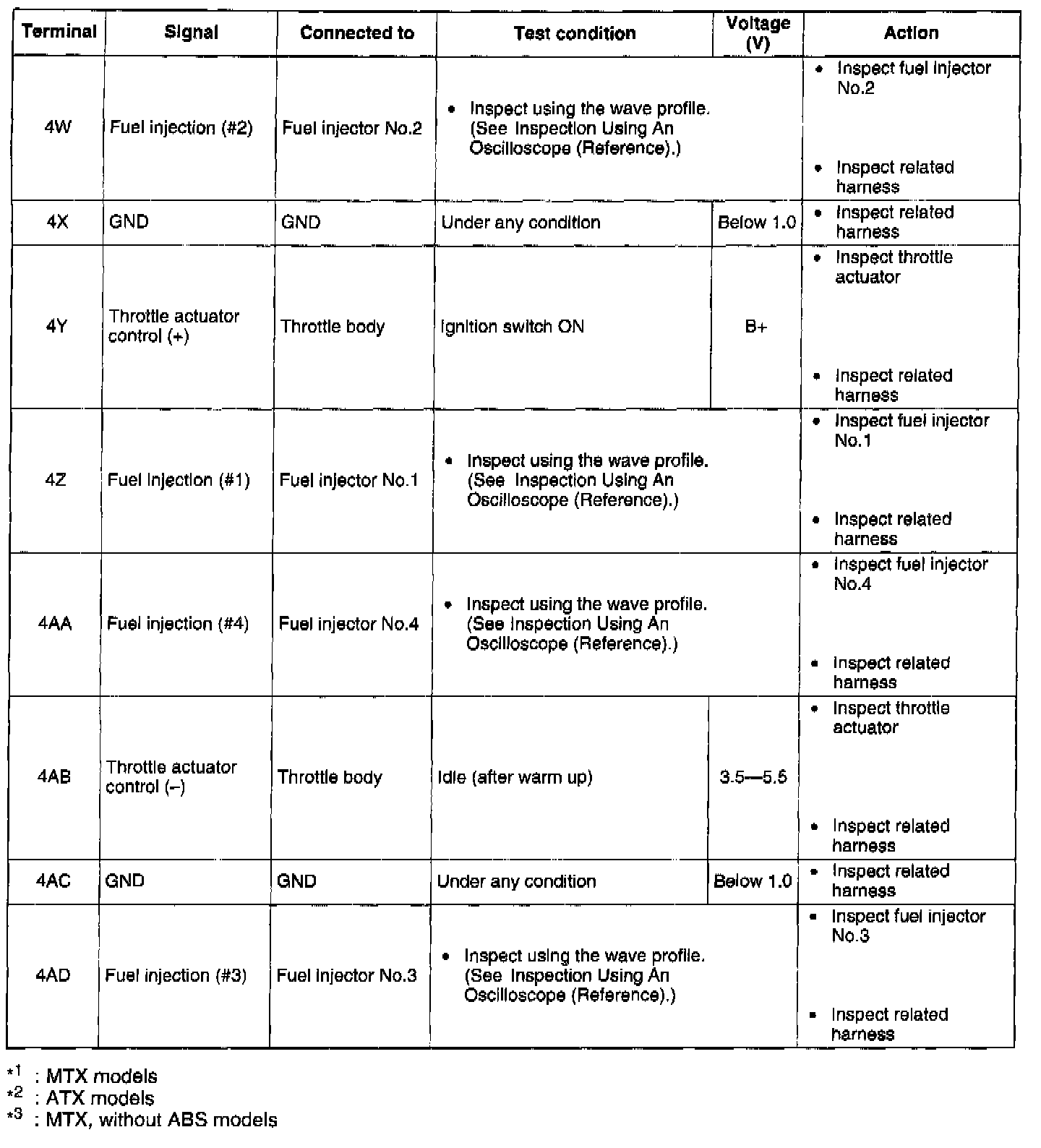

Terminal Voltage Table (Reference) - Terminals (4W - 4AD):
