Reassembly

Standard values, such as torques and certain adjustments, must be strictly observed in the reassembly of all parts.

If removed, these parts should be replaced with new ones:
* Oil seals
* Gaskets
* O-rings
* Lockwashers
* Cotter pins
* Nylon nuts







Depending on location:

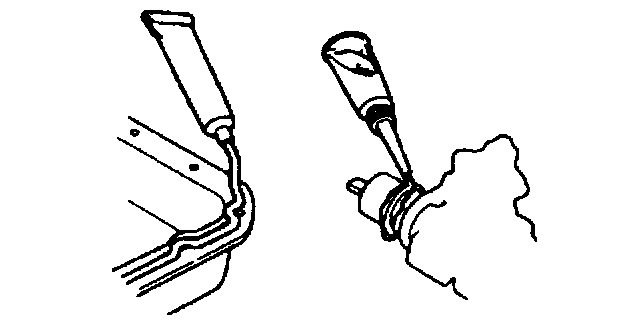

* Sealant and gaskets, or both, should be applied to specified locations. When sealant is applied, parts should be installed before sealant hardens to prevent leaks.
* Oil should be applied to the moving components of parts.
* Specified oil or grease should be applied at the prescribed locations (such as oil seals) before reassembly.
