Solar Sensor: Testing and Inspection

SOLAR RADIATION SENSOR INSPECTION

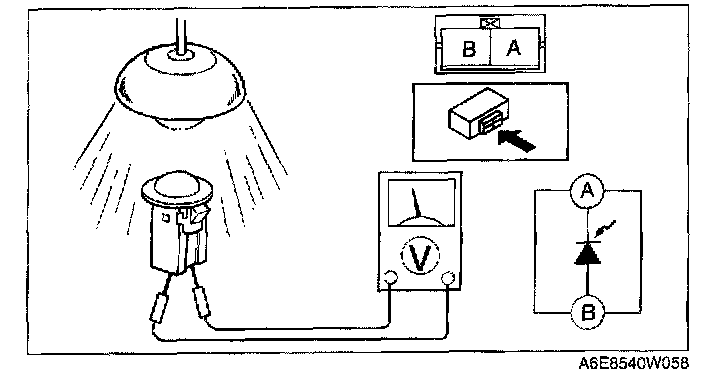

1. Shine an incandescent light (60 W) on the solar radiation sensor from a distance of approximately 100 mm {3.94 in}.




2. Connect positive (+) lead to terminal A and negative (-) lead to terminal B of the solar radiation sensor.
- If the output voltage is not above 0.45 V, replace the solar radiation sensor.
