Mini ISO Relay: Testing and Inspection

RELAY INSPECTION

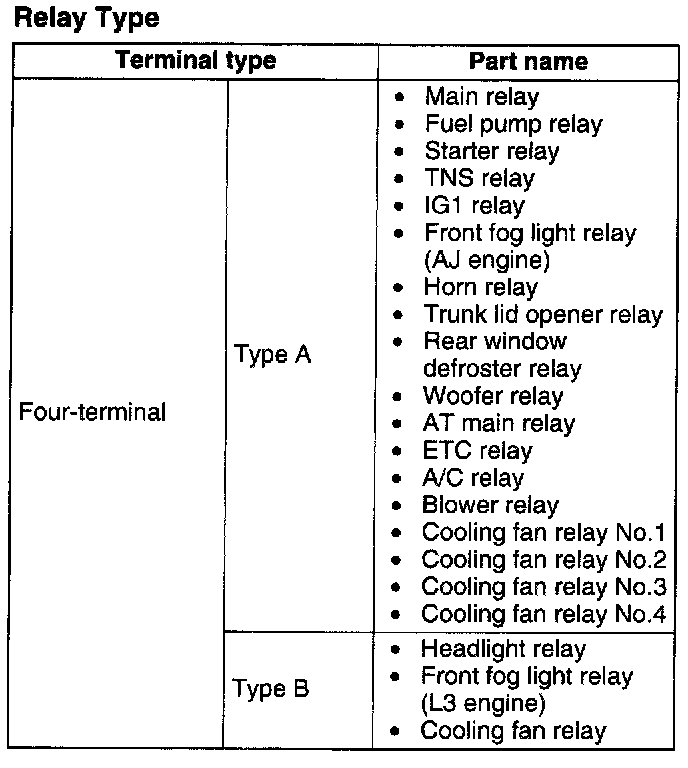

Relay Type

Four-terminal

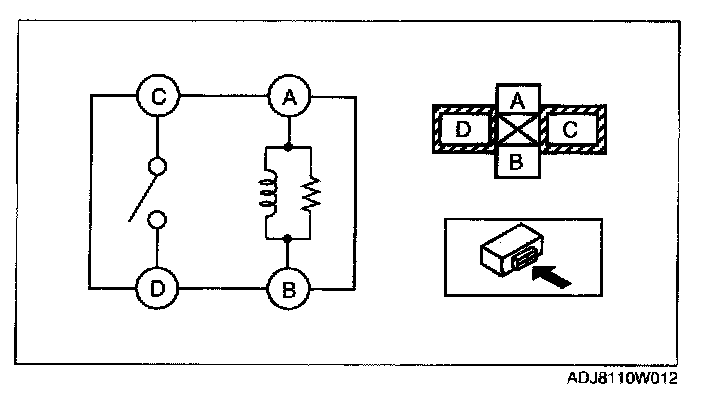

Type A
1. Remove the relay.

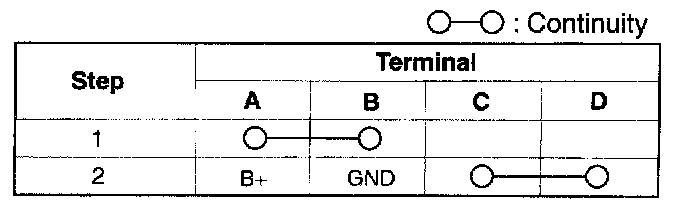

2. Inspect for continuity between the relay terminals using an ohmmeter.
- If not as specified, replace the relay.

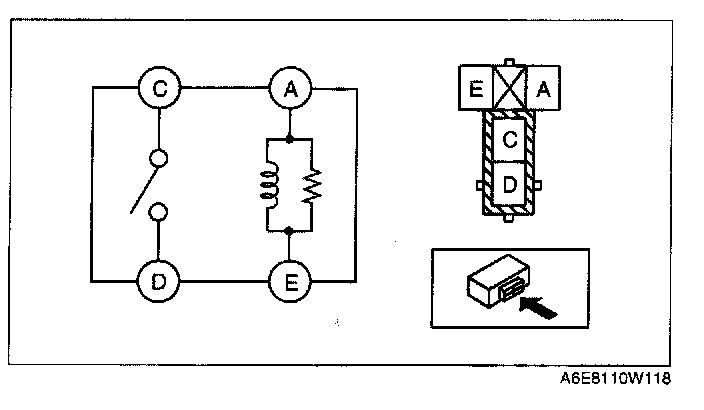

Type B
1. Remove the relay.

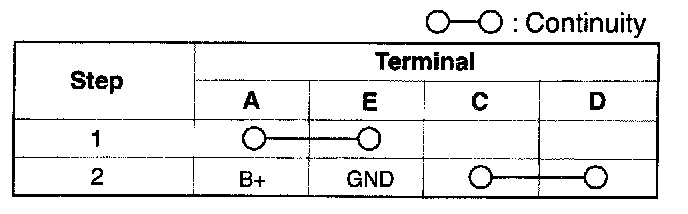

2. Inspect for continuity between the relay terminals using an ohmmeter.
- If not as specified, replace the relay.
