Knock Sensor: Service and Repair

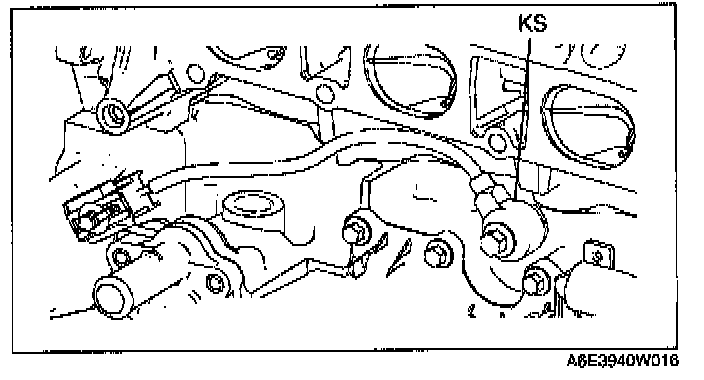

KNOCK SENSOR (KS) REMOVAL/INSTALLATION




1. Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION)
2. Remove the KS attachment bolt to remove the KS.
3. Install in the reverse order of removal.

Tightening torque: 16.2 - 23.8 N.m {1.66 - 2.42 kgf.m, 12.0 - 17.5 ft.lbf}
