Technical Data A65M-R

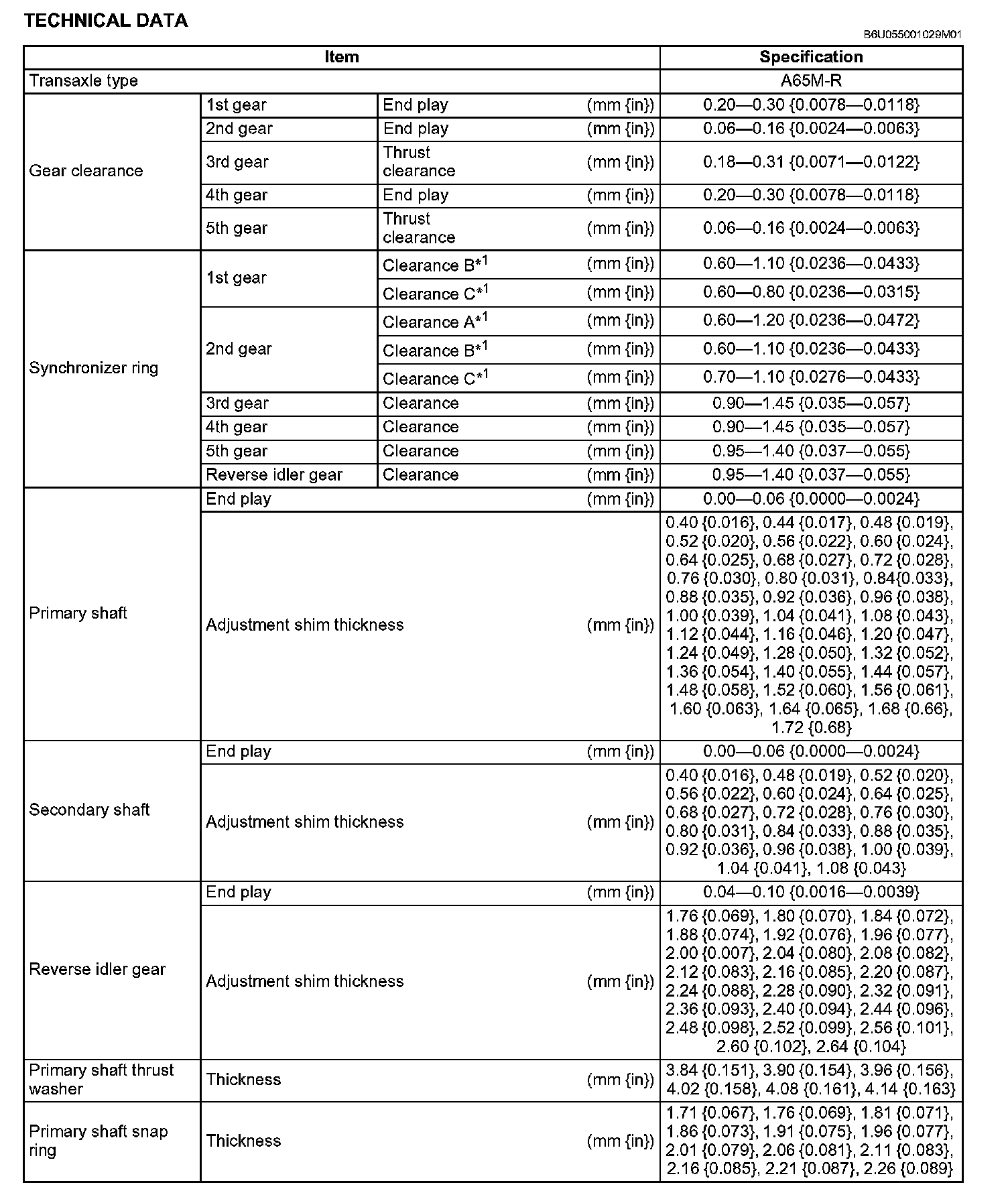

TECHNICAL DATA

Technical Data (Part 1):

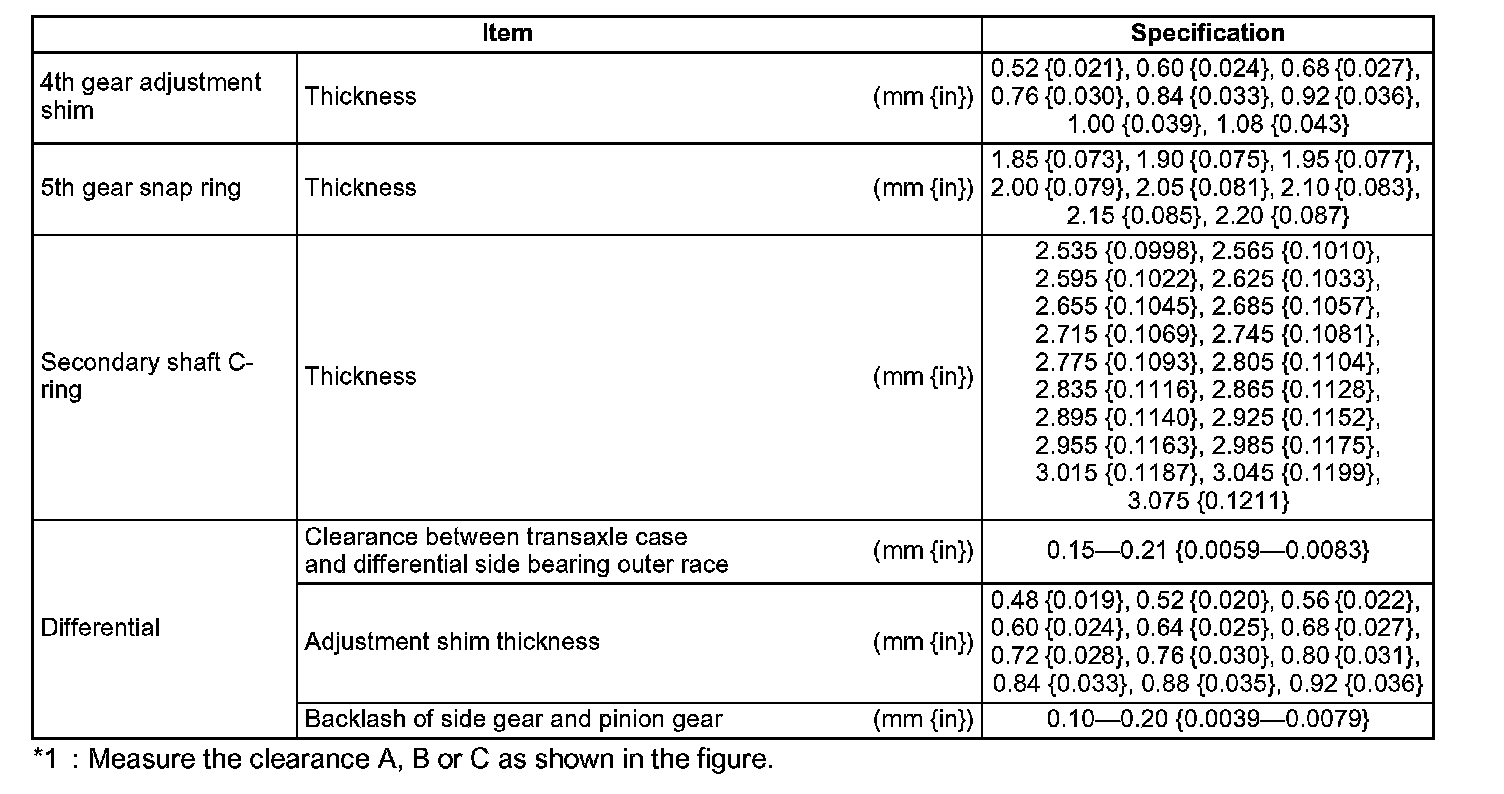

Technical Data (Part 2):

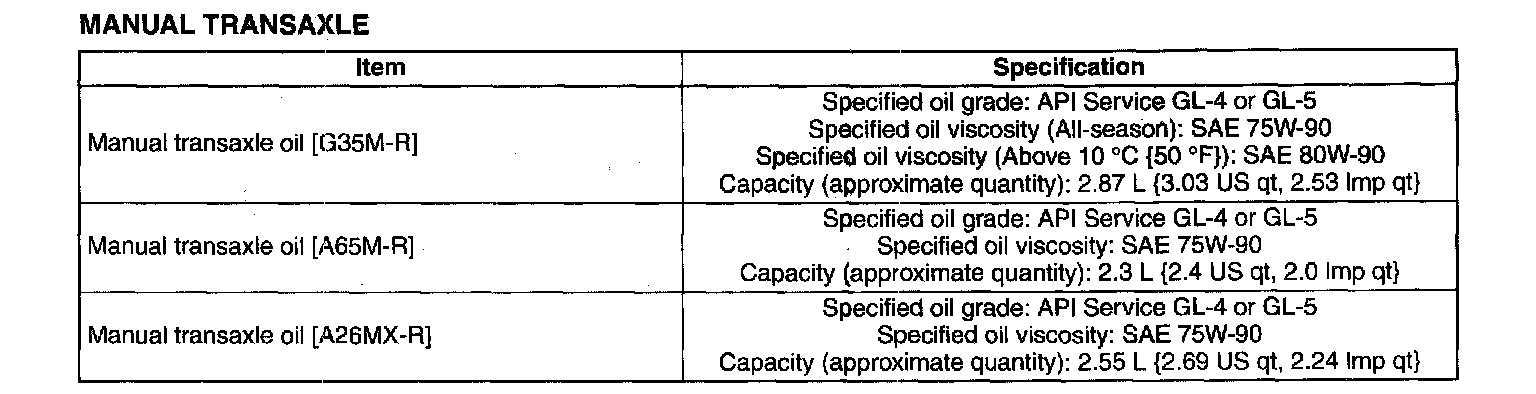

MANUAL TRANSAXLE:

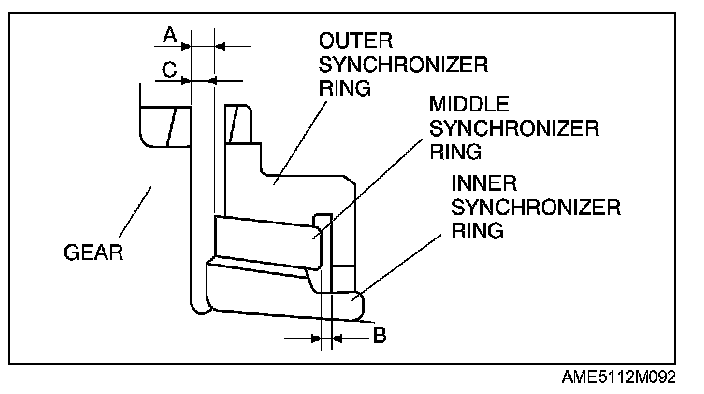

*1: Measure the clearance A, B or C as shown in the figure.
