Generator Disassembly/Assembly

GENERATOR DISASSEMBLY/ASSEMBLY

CAUTION: Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

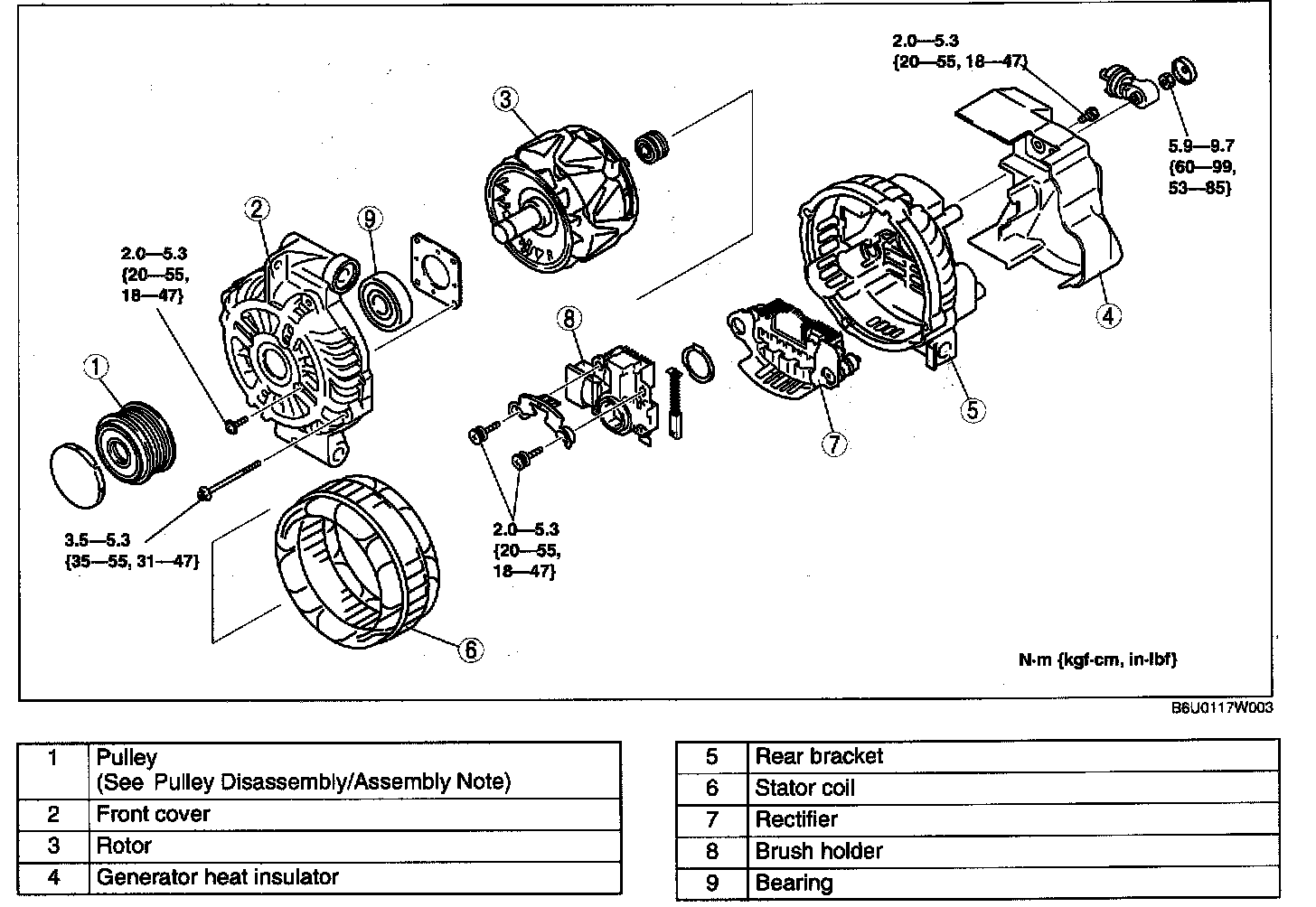

L3 (ATX)




1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

Pulley Disassembly/Assembly Note

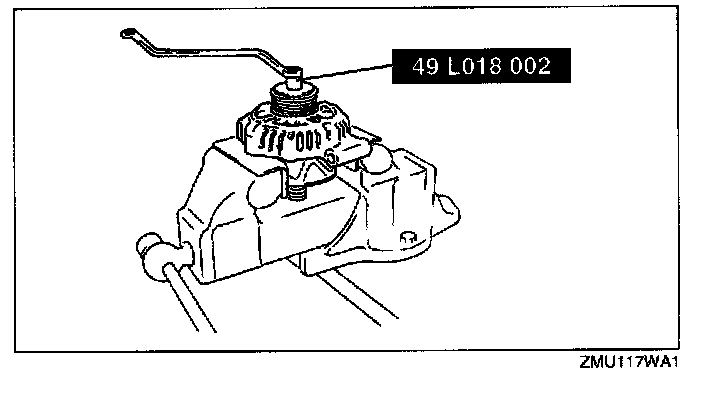

1. Disassemble/assemble the pulley using the SST.

Tightening torque: 60-85 Nm {6.1-8.7 kgf.m, 45-62 ft.lbf}

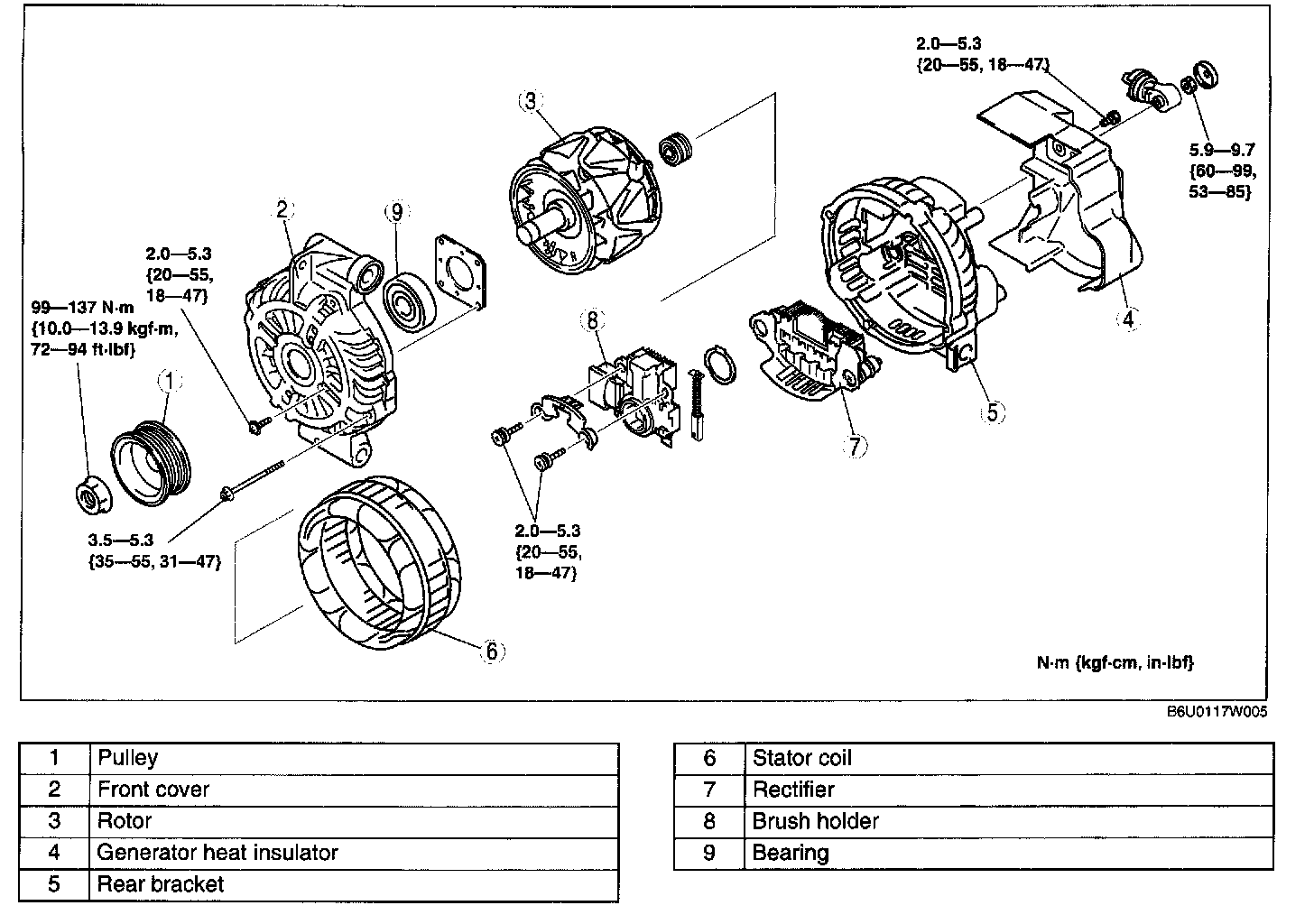

L3 (MTX)




1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
