Ignition Switch: Testing and Inspection

IGNITION SWITCH INSPECTION

1. Disconnect the negative battery cable.
2. Remove the column cover.
3. Disconnect the ignition switch connectors.

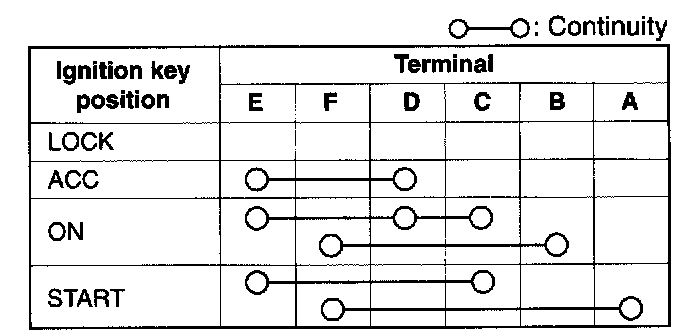

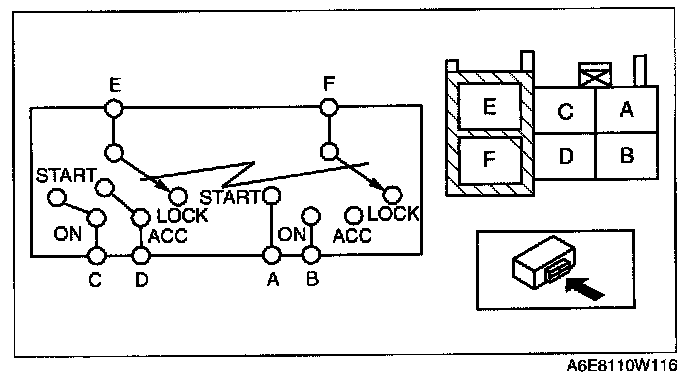

4. Inspect for continuity between the ignition switch terminals using an ohmmeter.
- If not as specified, replace the ignition switch.
