5TH Clutch Hub Set Assembly Note

5th Clutch Hub Set Assembly Note

Note: Align the synchronizer ring grooves with the synchronizer key during assembly.

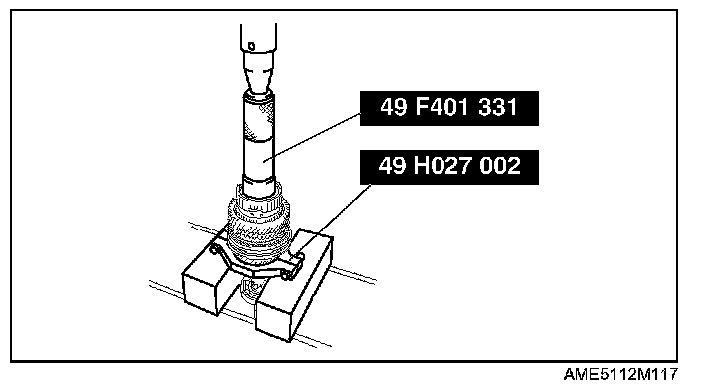

1. Install the 5th clutch hub set using the SSTs.
