Snap Ring Assembly Note

Snap Ring Assembly Note

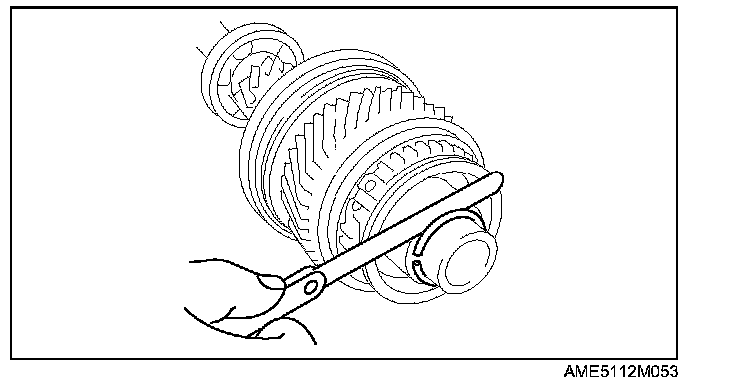

1. Install a new snap ring to the primary shaft.





2. Measure the clearance between the snap ring and the primary shaft bearing spacer.
^ If it is not within the specification, adjust it by selecting a proper snap ring from below.

Clearance:
0.0 - 0.1 mm (0.0000 - 0.0039 in)

Snap ring size
