1ST Bushing Assembly Note

1st Bushing Assembly Note

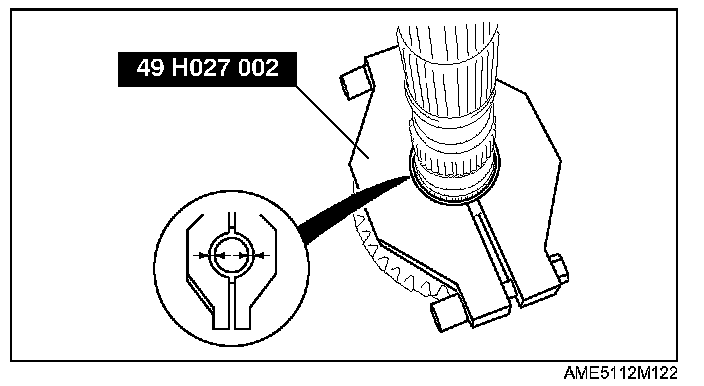

Caution: The shaft can be damaged when installing the 1st bushing if the SST touches the secondary shaft. Install the SST to the shaft without touching the shaft.

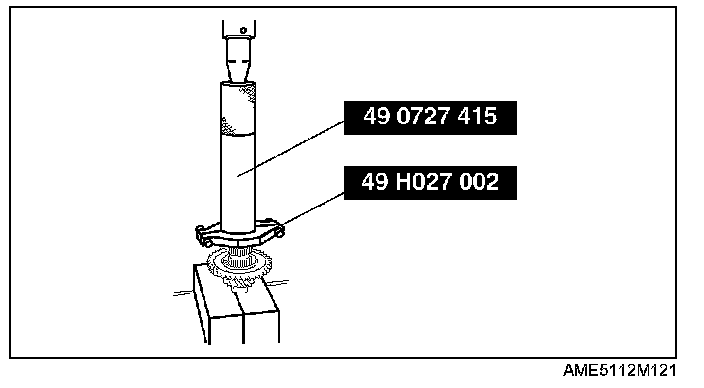

1. Place the 1st bushing, and assemble the SST as shown in the figure.





2. Install the 1st bushing using the SSTs.
