Power Window Subswitch

POWER WINDOW SUBSWITCH INSPECTION

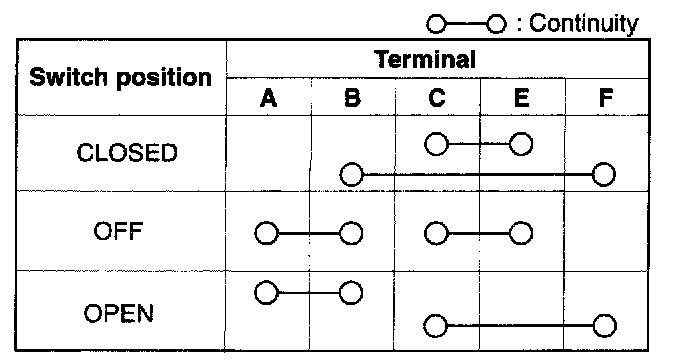

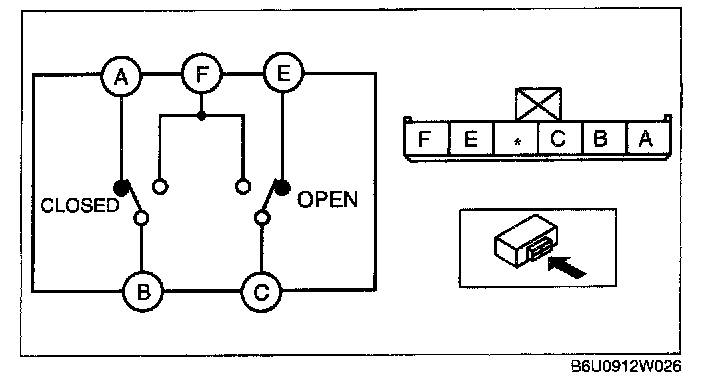

1. Inspect for continuity between the power window subswitch terminals.
- If not as specified, replace the power window subswitch.
