Rear Window Glass Removal: Notes

  1. Remove the headliner.
  2. Remove the rear package trim.
  3. Apply protective tape along the edge of the body to protect it from damage.
  4. Cut the lip of the rear window molding using a razor.
    WARNING:
    • Using a razor with bare hands can cause injury. Always wear gloves when using a razor.
    NOTE:
    • The rear window molding is a replacement part.

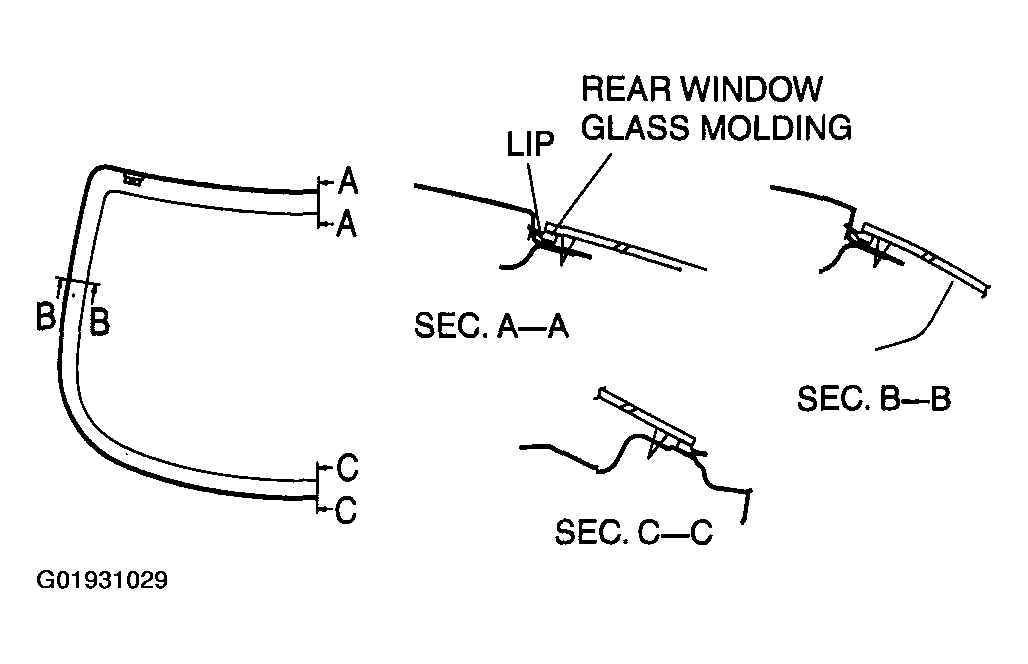

    Fig 1: Identifying Lip Of Rear Window Molding
    G01931029Courtesy of MAZDA MOTORS CORP.
