Abs/TCS HU/Cm

    NOTE: ABS/TCS HU/CM is not able to read DTCs nor PIDs for confirming normal communication between instrument cluster. Therefore use scan tool to read PIDs from the instrument cluster in order to confirm normal communication between the two modules.
  1. Access and monitor "PCM_MSG" and "TCM_MSG" of PID using scan tool.
  2. Referring to PID/DATA MONITOR, confirm display status of the PID. See Figure.
  3. Referring to ABS/TCS HU/CM Malfunction Locator Table, determine malfunctioning part of CAN system. See Figure and Fig 1 .

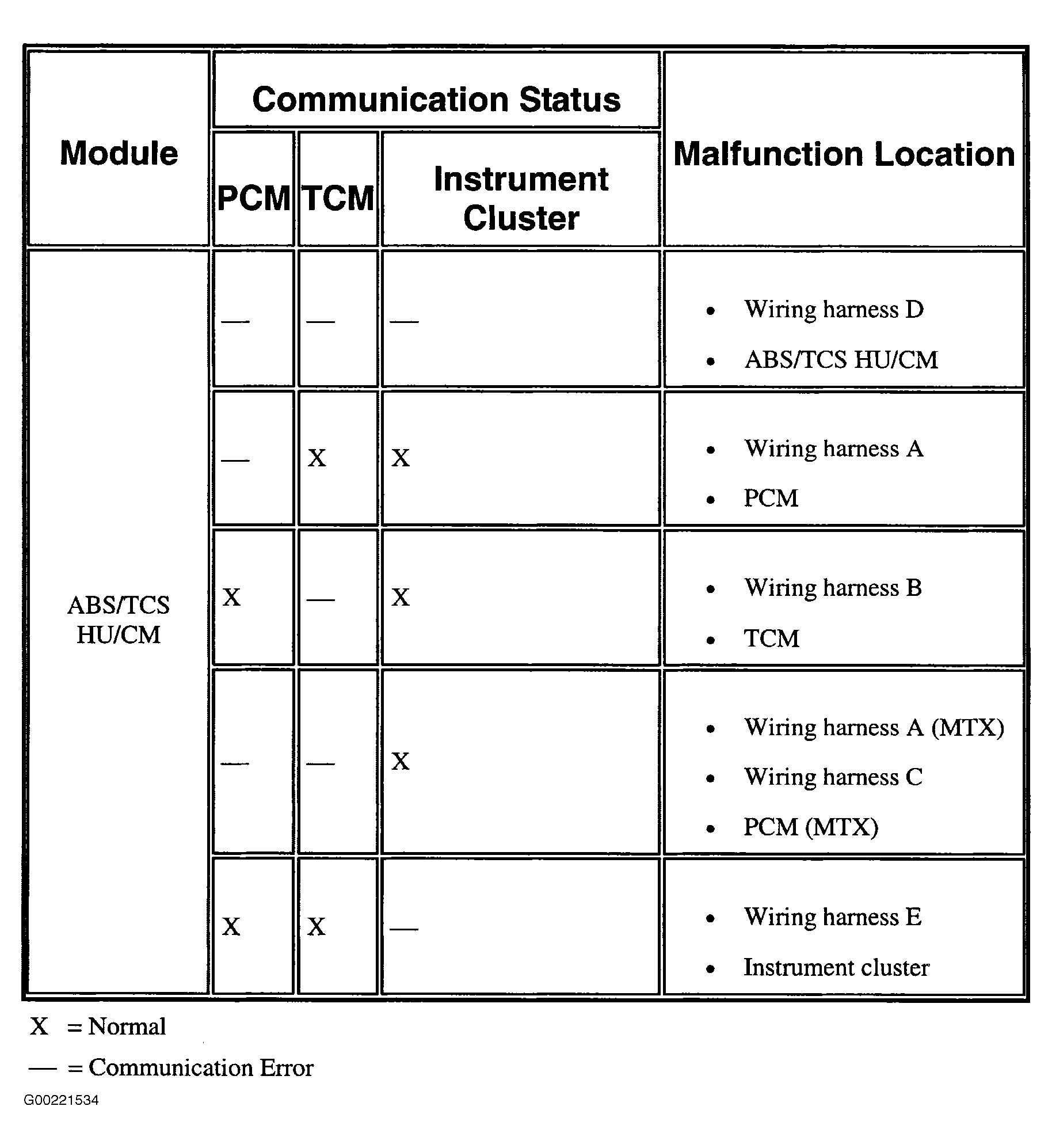

Fig 1: ABS/TCS HU/CM Malfunction Locator Table
G00221534Courtesy of MAZDA MOTORS CORP.
