Front Buckle Removal/Installation

Disconnect the negative battery cable.
Remove the front seat.
Disconnect the buckle switch connector.

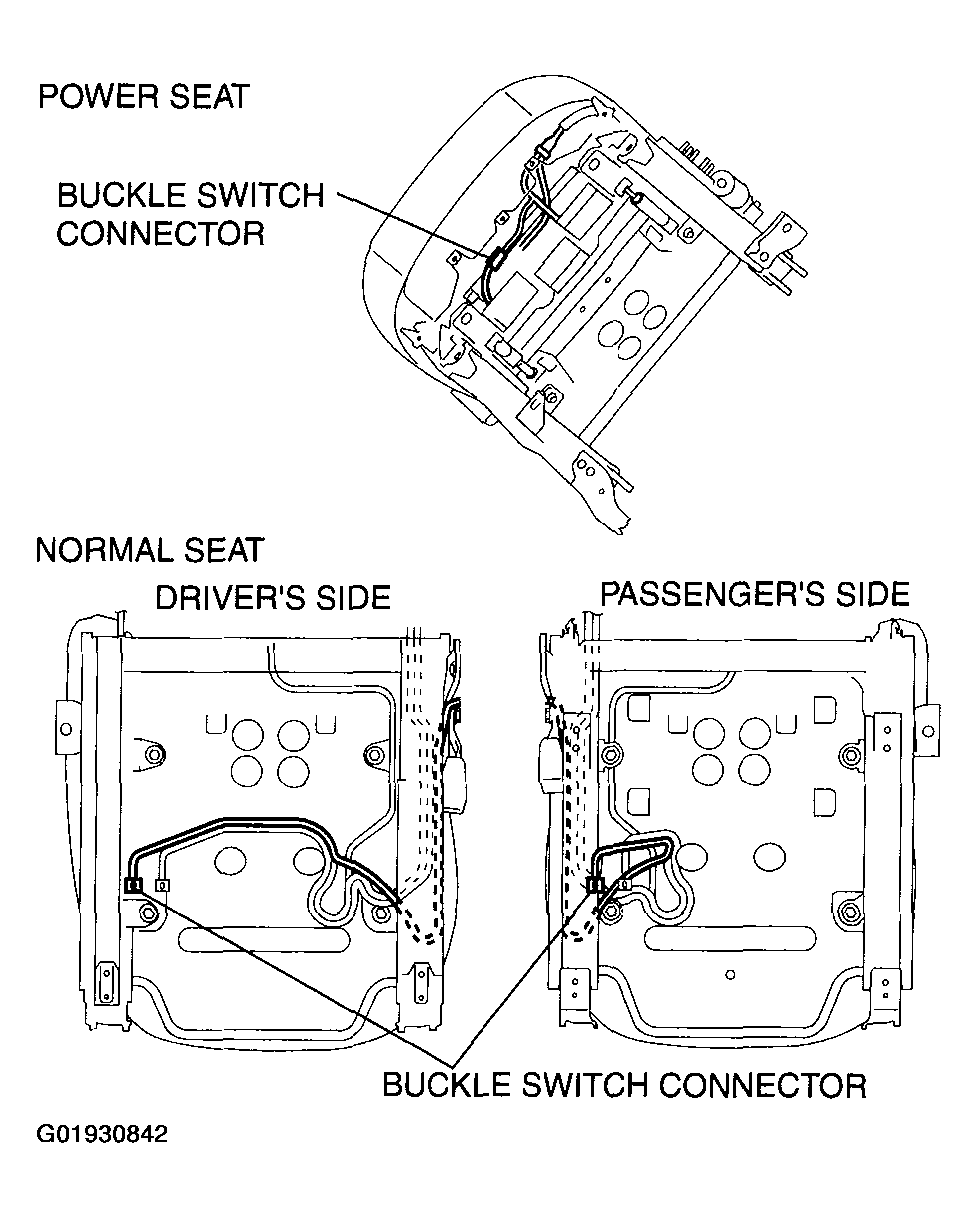

Fig 1: Identifying Buckle Switch Connector
Courtesy of MAZDA MOTORS CORP.
Remove bolt.

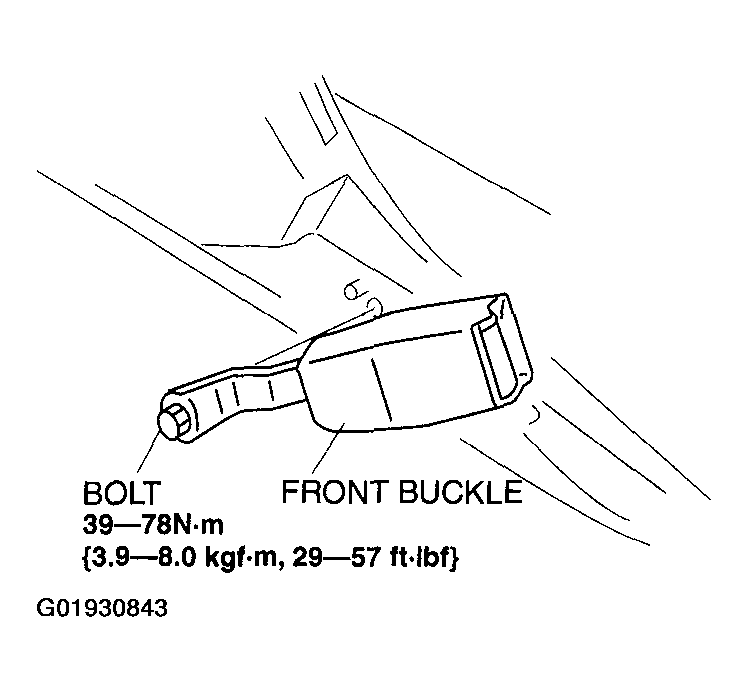

Fig 2: Removing Buckle Bolt
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
