Fuse Block Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the left-side front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figure below.

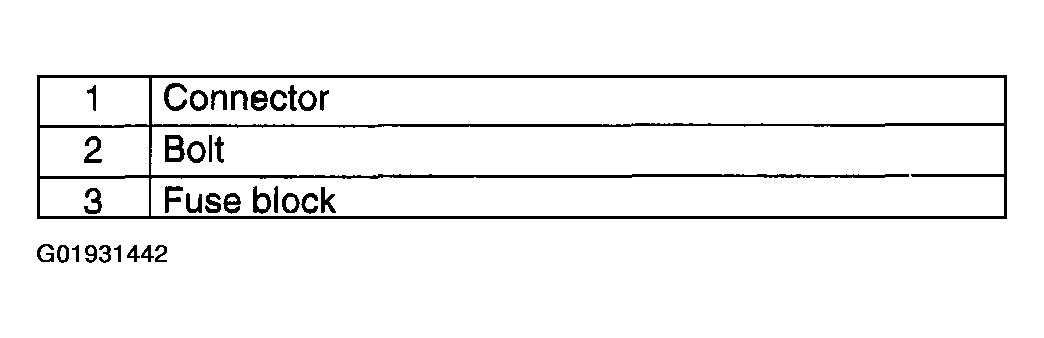

    Fig 1: Fuse Block Removal Order Table
    G01931442Courtesy of MAZDA MOTORS CORP.

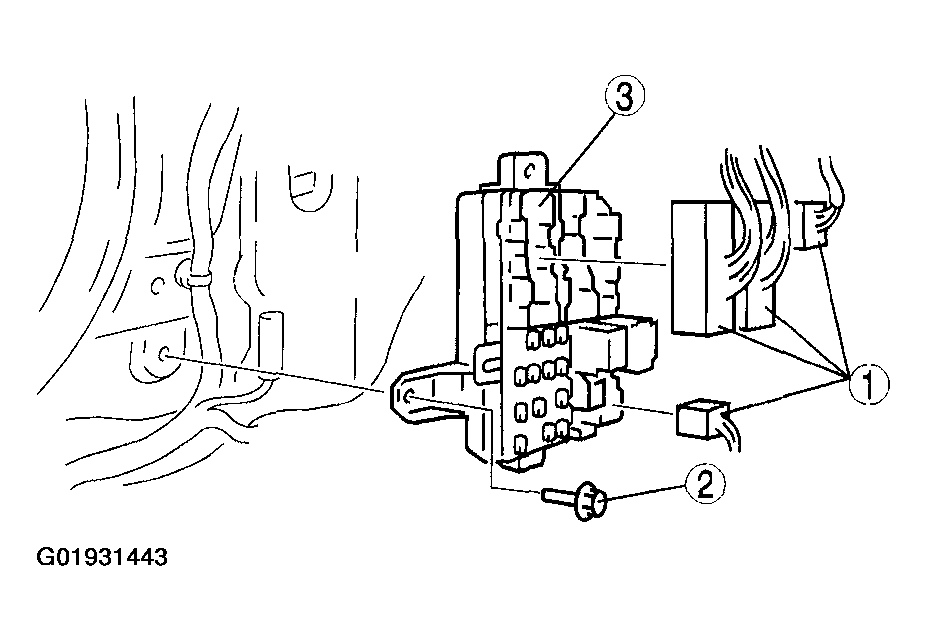

    Fig 2: Removing Fuse Block
    G01931443Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
