Bolt Removal Note

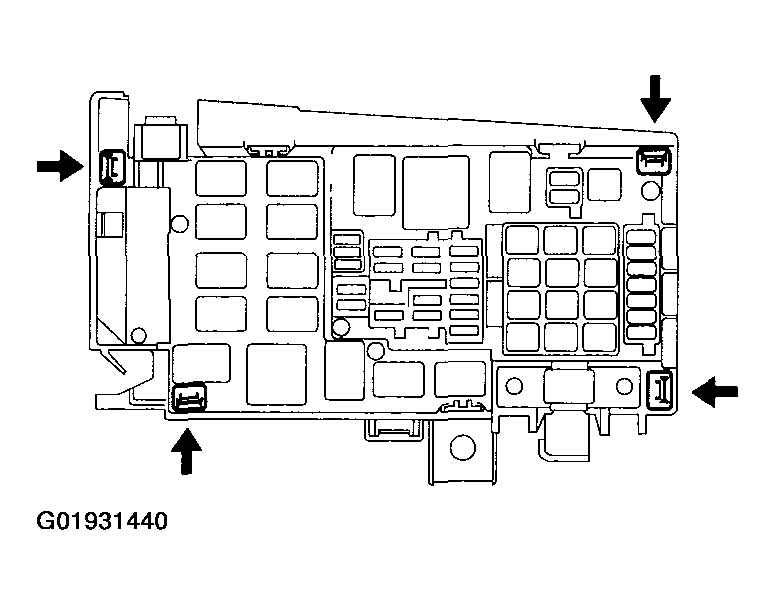

Press and remove the tabs on the main fuse block at the positions indicated by the arrows.

Fig 1: Identifying Tabs On Main Fuse Block
Courtesy of MAZDA MOTORS CORP.

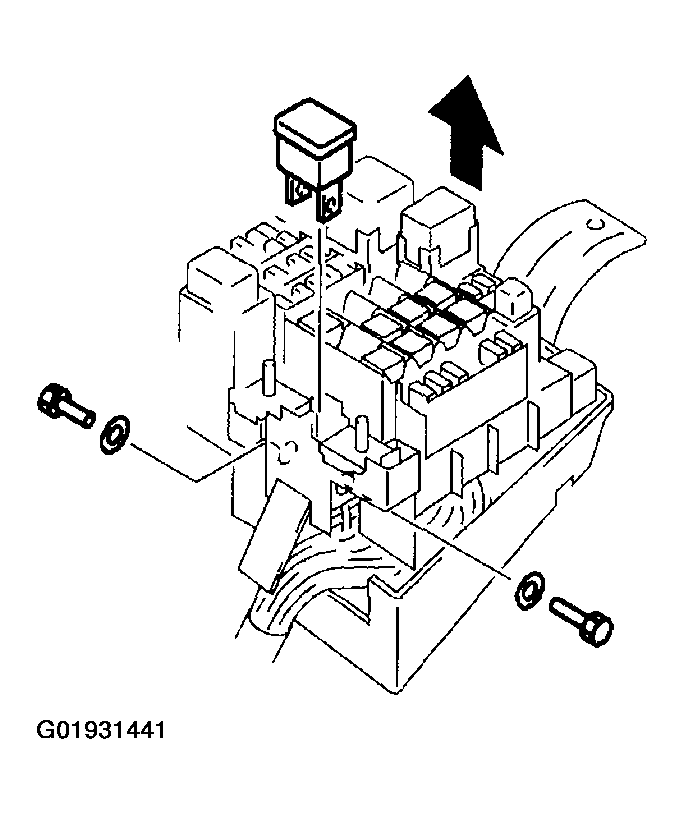

Lift up the main fuse block and remove the bolts.

Fig 2: Lifting Up Main Fuse Block And Removing Bolts
Courtesy of MAZDA MOTORS CORP.
