Base Installation

Cut away all of the original sealant using a razor.
Clean and degrease the ceramic coating on the glass and the base.
Apply primer to the bonding area of the glass and the base.
CAUTION:
- Keep the area free of dirt and grease, and do not touch the surface. Otherwise, the primer may not properly bond to the surface of the glass.
Apply a 3.0 mm {0.12 in} layer of sealant to the base.
NOTE:
- Use only glass primer on the glass, and body primer on the base. Allow the primer to dry for approximately 30 minutes.

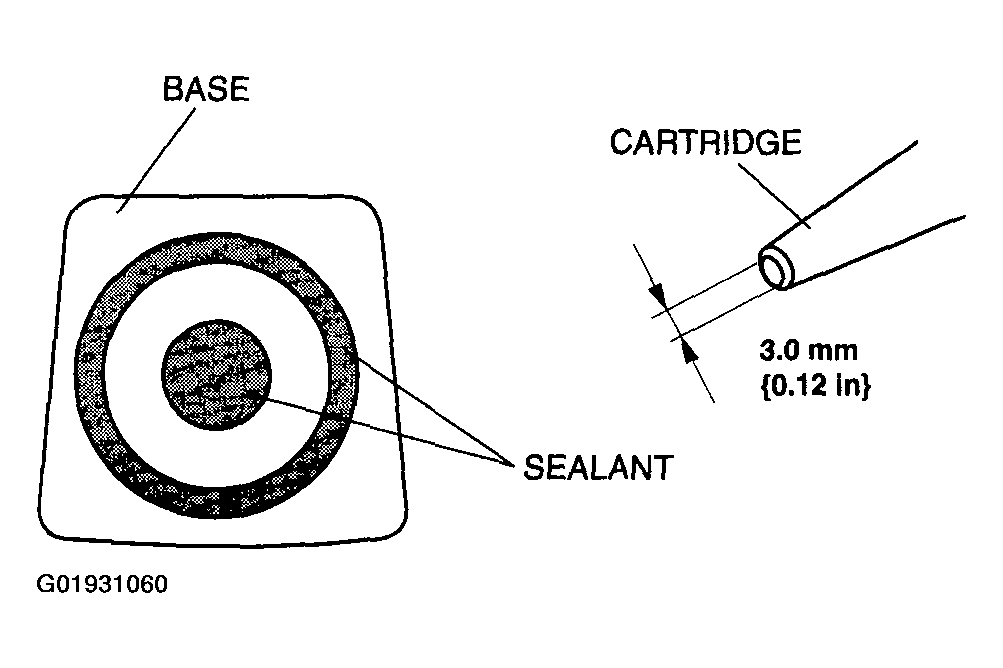

Fig 1: Applying Layer Of Sealant to Base
Courtesy of MAZDA MOTORS CORP.
Center the base in the ceramic coating and press it onto the glass.
Use isopropyl alcohol to remove any excess repair sealant.
Hardening Time Of Sealant

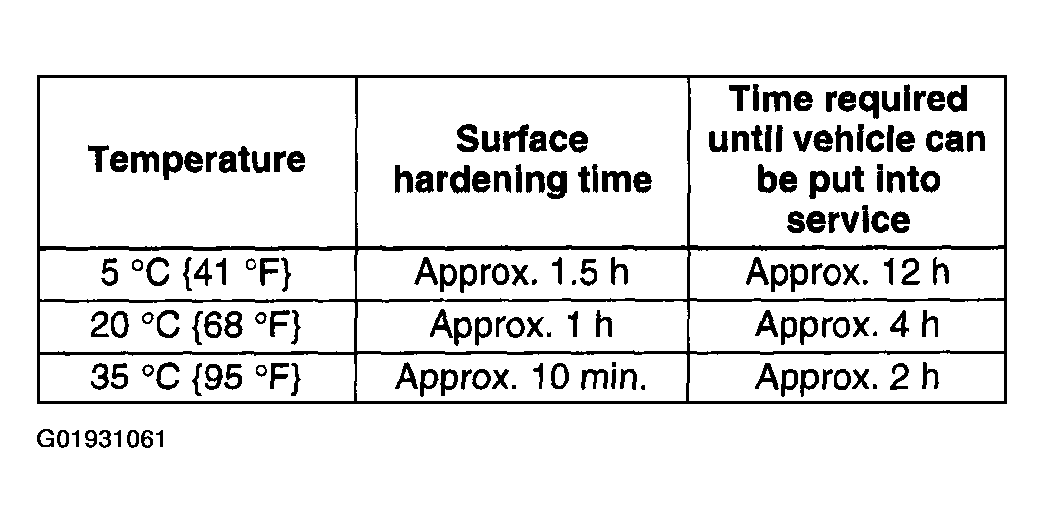

Fig 2: Base Surface Hardening Time And Service Chart
Courtesy of MAZDA MOTORS CORP.
Install the rearview mirror.

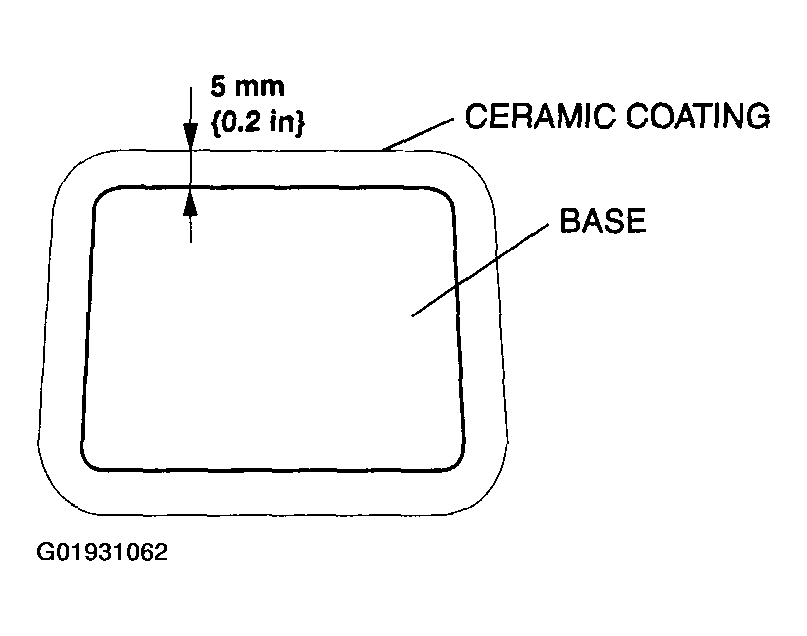

Fig 3: Centering Base In Ceramic Coating And Pressing It Onto Glass
Courtesy of MAZDA MOTORS CORP.
